CVP Single Pole Single Throw (SPST) Toggle Switch
CVP Single Pole Single Throw (SPST) Toggle Switch
SKU:CVP-efdfed
Versatile CVP SPST Toggle Switch with nickel-plated brass handle, silver contacts, and durable phenolic housing. Rated for 25A at 12V.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
CVP Single Pole Single Throw (SPST) Toggle Switch
$12.99
Quantity: 1
Claim Your Seller Account
CVP Single Pole Single Throw (SPST) Toggle Switch
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

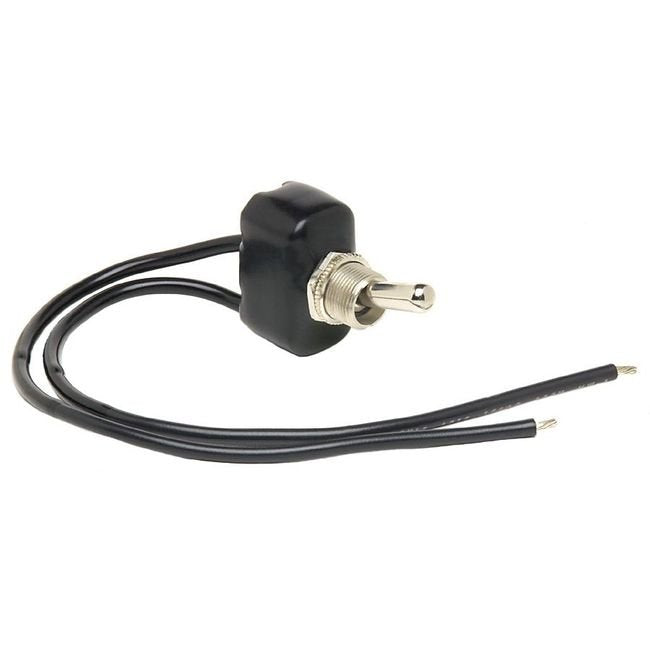

The CVP Single Pole Single Throw (SPST) Toggle Switch is designed for versatile applications, featuring a standard nickel-plated brass handle and silver contacts for reliable performance. Its phenolic housing with plated steel cap ensures durability, with nickel-plated brass mounting hardware for secure installation. This toggle switch is rated for 25A at 12V, 15A at 24V, and 10A at 36V DC. The blade terminals are 0.250 quick connect, and screw terminals accept 6-32 screws, providing easy connectivity and compatibility with various systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Accessories

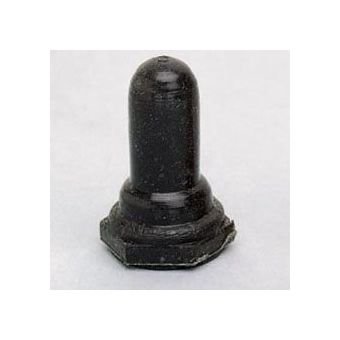

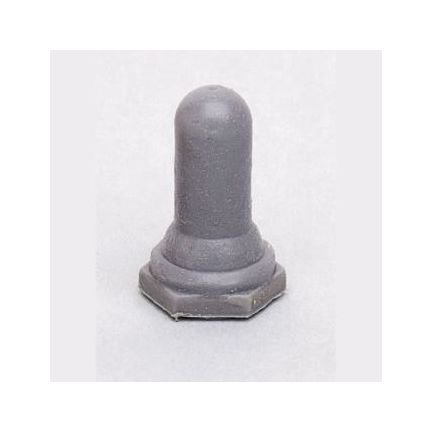

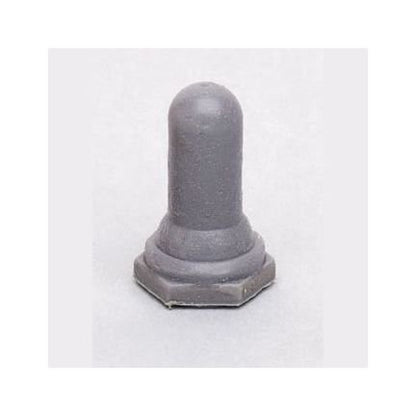

Item # - 81264Item Name - Accessories for Toggle SwitchesDescription - Countersunk faceplate switch guards. Surface mount switch guard. Lockout switch guard cover. Emergency marine cutoff lanyards.Housing - Silicone RubberItem # - 81264-01Item Name - Accessories for Toggle SwitchesDescription - Countersunk faceplate switch guards. Surface mount switch guard. Lockout switch guard cover. Emergency marine cutoff lanyards.Housing - Silicone Rubber
Specifications Cap Material
Plated Steel
Specifications Contact Material
Silver
Specifications Current At 12 Volt V Voltage
25 A
Specifications Current At 24 Volt V Voltage
15 A
Specifications Current At 36 Volt V Voltage
10 A
Specifications Direct Current Dc Voltage
12 V | 24 V | 36 V
Specifications Handle Length
11/16 in | 17.5 mm
Specifications Handle Material
Nickel Plated Brass
Specifications Handle Type
Standard
Specifications Housing
Phenolic
Specifications Mounting Hardware
Nickel-Plated Brass
Specifications Mounting Stem Length
15/32 in | 11.9 mm
Specifications Mounting Stem Material
Nickel-Plated Brass
Specifications Mounting Stem Thread Size
15/32-32 in
Specifications Number Of Terminals
6
Specifications Panel Thickness
9/32 in | 7.1 mm
Specifications Terminal Type
Screw
Specifications Type
Single Pole Single Throw (SPST)
