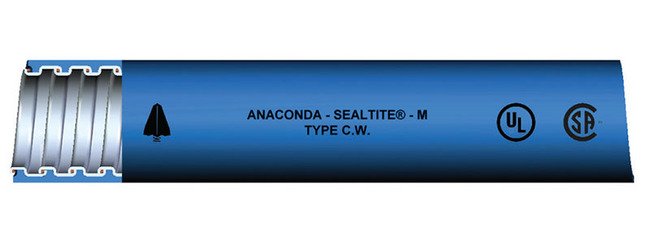

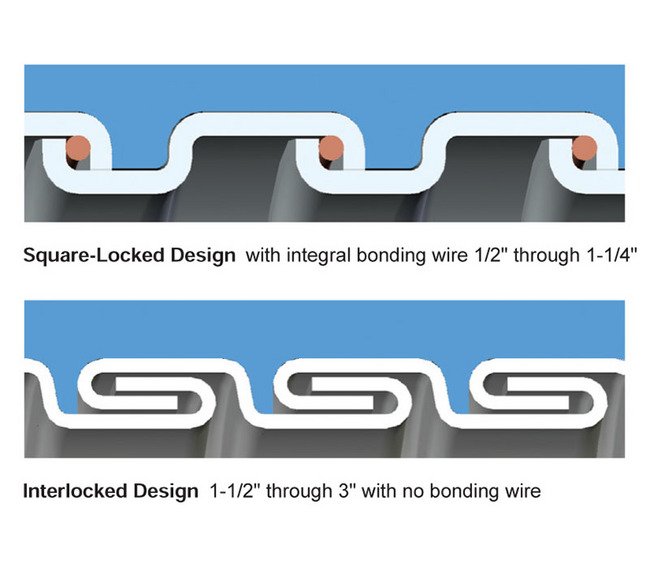

The CW HD Liquid-Tight Flexible Metal Conduit is a premium solution for wiring applications. Featuring a thermoplastic PVC jacket with an integral bonding wire, this conduit offers a flexible and liquid-tight raceway for secure wiring installations. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a flame-retardant PVC jacket, it meets UL Listed and CSA Certified standards. Suitable for a temperature range of -40°F to +176°F, it is approved for use in various locations and applications, including hazardous environments. Ideal for computer wiring installations, this conduit ensures safety, durability, and compliance with NEC and industry regulations.
Product Specifications
Application 0
Computer Wiring Meets Requirements of NECTemperature Range: -40°F to +176°F (-40°C to +80°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 1/2" through 1-1/4, if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of trade sizes from 1/2" through 3". Approved for direct burial and in concrete trade sizes 1/2" through 3". Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.
Nec Articles 0
Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
7.0 in | 177.8 mm
Specifications Approx Weight Per 100 Ft
94 lbs | 42.6 kg
Specifications Color
BLUE
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
241024 | 55-28-09-03 | 6405-24-00 | CB | CBLA-14 | CBLT-1-1/4 | ULBLUE
Specifications Electrical Trade Size
1-1/4 in | 35 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.380 to 1.410 in | 35.052 to 35.814 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Note
Other colors available upon request.3/8" & 4" trade sizes available on special order.
Specifications Outside Diameter
1.630 to 1.660 in | 41.402 to 42.164 mm
Specifications Packaging
Standard Carton
Specifications Type
CW
