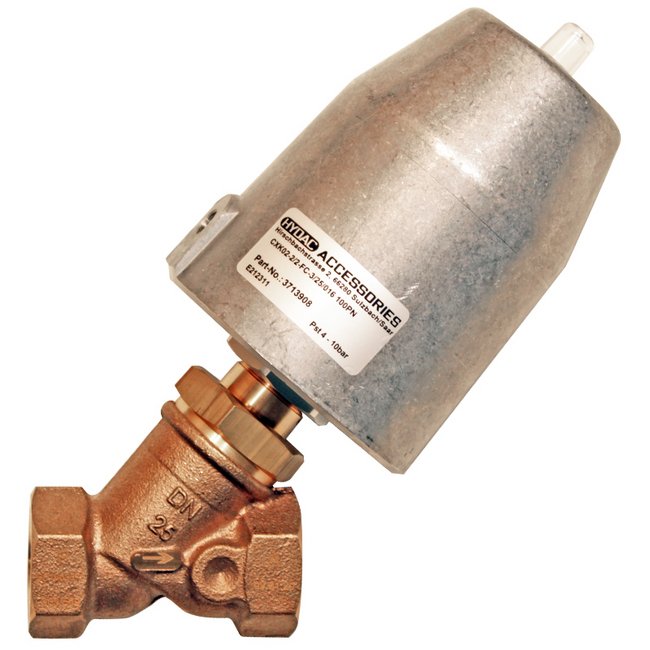

CX Series Brass Coaxial Angle Seat Valve
CX Series Brass Coaxial Angle Seat Valve
SKU:ACC-3be41c
High-performance 2/2 way piston valve for gaseous, liquid, and contaminated media. Nickel-plated brass construction, 16 bar max pressure, -10°C to 100°C operating temp, pneumatic actuator, normally closed switching function.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
CX Series Brass Coaxial Angle Seat Valve
$89.99
Quantity: 1
Claim Your Seller Account
CX Series Brass Coaxial Angle Seat Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CX Series Brass Coaxial Angle Seat Valve is a high-performance 2/2 way piston valve suitable for handling gaseous, liquid, and contaminated media. Constructed from nickel-plated brass, this valve can withstand pressures up to 16 bar and operating temperatures ranging from -10°C to 100°C. With a pneumatically operated normally closed switching function, this valve offers reliability and durability in various industrial applications. Its easy installation with no orientation restrictions makes it a versatile choice for fluid control systems.
Product Specifications
Specifications 3 Day Lead Time
No
Specifications Actuator Type
Pneumatic
Specifications Back Pressure Max
16 bar | 232 psi
Specifications Body Material
Brass, Nickel Plated
Specifications Flow Direction
As Marked
Specifications Media
Gaseous, Liquid, Contaminated
Specifications Mounting Position
No Orientation Restrictions
Specifications Number Of Ways
2/2
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-10 ºC | 14 ºF
Specifications Pressure Max
16 bar | 232 psi
Specifications Switching Function
Normally Closed
Specifications Thread Type
BSPP
Specifications Type
2/2 Way Piston Valve
