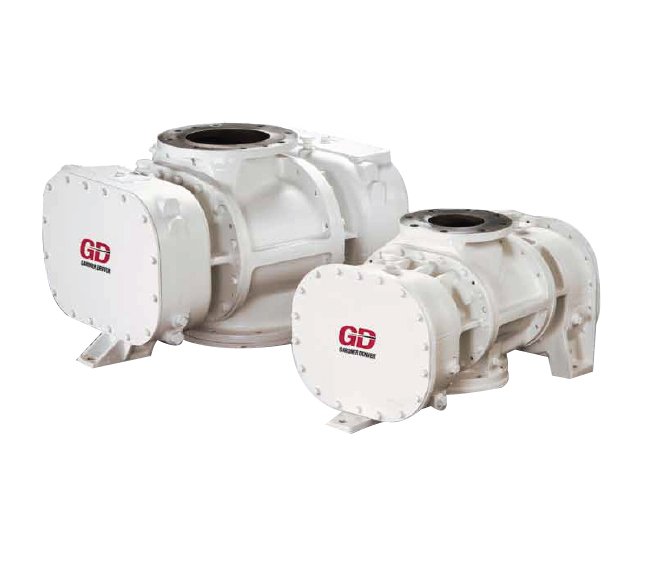

CycloBlower® Industrial Series Positive Displacement Blower with Vacuum Pump - 32 3/4 in Length
CycloBlower® Industrial Series Positive Displacement Blower with Vacuum Pump - 32 3/4 in Length
SKU:BLO-aaeb31
Efficient 32 3/4 in CycloBlower® Industrial Series Blower with Vacuum Pump for clean, high-capacity air delivery
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
CycloBlower® Industrial Series Positive Displacement Blower with Vacuum Pump - 32 3/4 in Length
$4,999.99
Quantity: 1
Claim Your Seller Account
CycloBlower® Industrial Series Positive Displacement Blower with Vacuum Pump - 32 3/4 in Length
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CycloBlower® Industrial Series Positive Displacement Blower with Vacuum Pump, boasting a length of 32 3/4 inches, delivers superior efficiency, shock-free compression, and clean air/gas delivery. Featuring a high capacity design, installation flexibility, and low installation cost, this blower ensures high energy savings and dependable quality. With Gardner Denver™'s renowned quality promise and innovative design features, it delivers clean, oil-free air for a range of industrial applications.
Product Specifications
Clean Airgas Delivery
Contact-less rotors removes the need for lubrication within the compression chamber.Outboard position of rotor bearings allows atmospheric venting between the compression chamber and the bearings and gears.Prevents gear and bearing lubricants from contaminating the compression chamber for clean air/gas delivery.
Delivering Clean Oil Free Air To A Wide Range Of Global Applicat
Aeration | Air Scouring | Digester Gas Boosters | Filter Backwashing | Pond Aeration, Municipal or Industrial | Wastewater Treatment
Dependable Quality
Superior and consistent quality can be found in every CycloBlower® as a result of:Continual investment in the training of world-class manufacturing personnel.Quality inspections throughout the entire manufacturing process.Compact design utilizing optimum performance materials.Reduced vibrations result in longer service of critical blower components.
Dimensions Approximate Weight
441 lb
Dimensions Connection Type
Flanged
Dimensions Height
15 1/4 in
Dimensions Length
32 3/4 in
Dimensions Outer Diameter
10 in
Dimensions Port Size
5 in
Dimensions Port Type
Both
Dimensions Width
15 in
Efficient Shock Free Compression

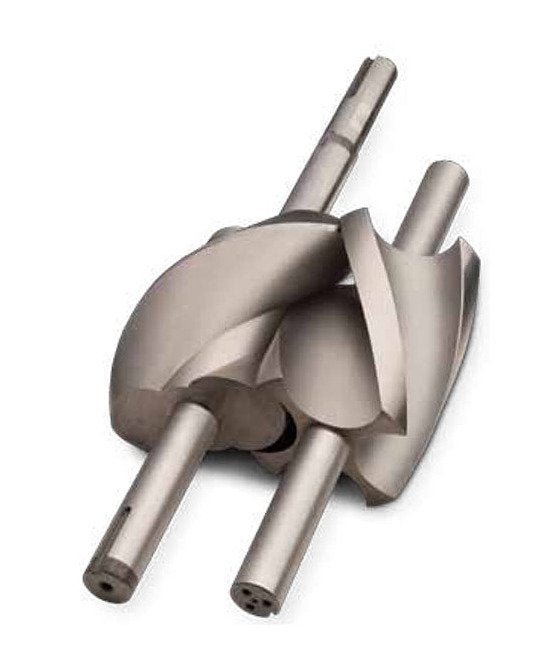

Helical screw rotors generate a balanced compression cycle.Providing a smooth and steady discharge, eliminating the sudden release of trapped pockets of air into the line.Contoured inlet and discharge ports minimize turbulence.
Gardner Denver Redefines The Perception Of Remanufactured
Reman (r¯e man´) n. A Gardner Denver™ positive displacement blower expertly assembled from genuine remanufactured and new parts.Must pass a full-load, hot run test before shipment.Standard new product warranty included.The final word when repair or replacement is required.

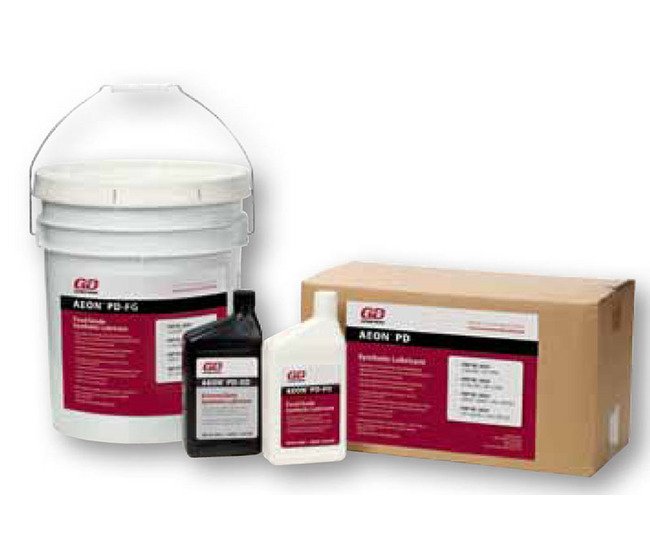

Genuine Gardner Denver Parts And Lubricants
Maintain the Gardner Denver™ performance advantage and reliability with Genuine GD Replacement Parts.Protect your Gardner Denver™ investment with AEON® PD lubricants formulated for all blowers in demanding applications.Now available AEON® PD-XD specifically designed for high ambient and/or high discharge temperature conditions.
High Capacity
Industry unique rotor profile and accurately maintained tolerances allow the CycloBlower® to be operated at high speeds for increased capacity.
High Efficiency For Improved Energy Savings
In many comparable applications, the CycloBlower® operates more efficiently than other straight-lobe blowers. By requiring less brake horsepower, BHP, energy operating costs can be realized and reduced.
Installation Flexibility
Units can be powered by various types of drives including electric motors, constant or variable, gasoline and diesel engines, or steam turbines.May be connected through a variable frequency drive (VFD), V-belt, or direct drive.
Low Installation Cost
A special foundation is not required.CycloBlower® requires a minimum of floor space.Remanufactured units available.
Note

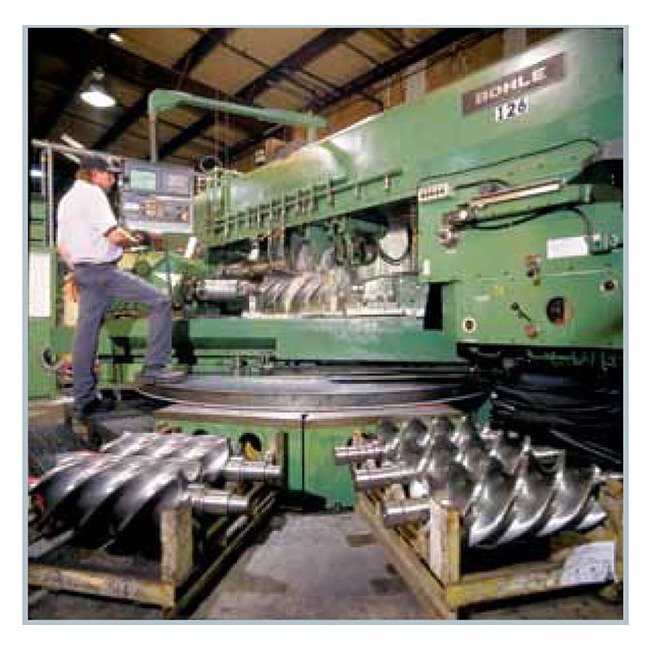

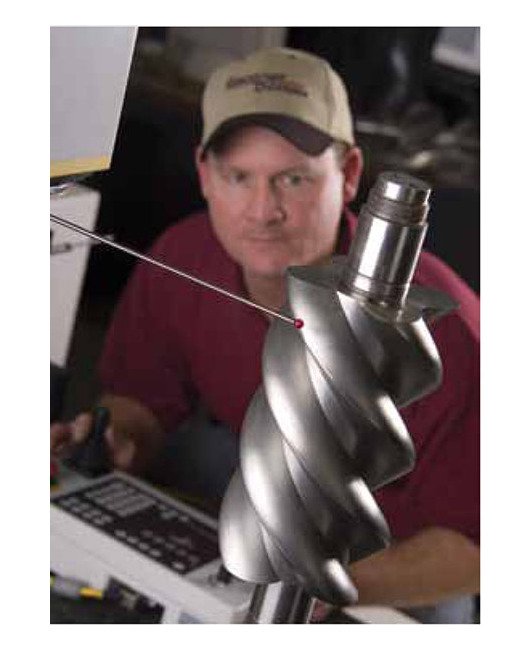

Performance based on inlet air at standard temperature of 68 ºF, an ambient pressure of 14.7 psia and 36% relative humidity.Contact Gardner Denver™ for wet vacuum applications to 24" Hg.CycloBlower® rotors are precision ground using state of the art milling technology.
Performance Data Airflow At 12 Inhg Vacuum And 1500 Rpm Speed
130 ft³/min | 6.6 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2000 Rpm Speed
223 ft³/min | 8.9 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2500 Rpm Speed
315 ft³/min | 11.1 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3000 Rpm Speed
412 ft³/min | 13.4 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3500 Rpm Speed
504 ft³/min | 15.6 bhp
Performance Data Airflow At 12 Inhg Vacuum And 4000 Rpm Speed
600 ft³/min | 17.9 bhp
Performance Data Airflow At 12 Inhg Vacuum And 4500 Rpm Speed
695 ft³/min | 20.2 bhp
Performance Data Airflow At 12 Inhg Vacuum And 5000 Rpm Speed
791 ft³/min | 22.5 bhp
Performance Data Airflow At 12 Psig Pressure And 2000 Rpm Speed
220 ft³/min | 19.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2500 Rpm Speed
307 ft³/min | 23.0 bhp
Performance Data Airflow At 12 Psig Pressure And 3000 Rpm Speed
394 ft³/min | 27.5 bhp
Performance Data Airflow At 12 Psig Pressure And 3500 Rpm Speed
482 ft³/min | 32.0 bhp
Performance Data Airflow At 12 Psig Pressure And 4000 Rpm Speed
570 ft³/min | 38.0 bhp
Performance Data Airflow At 12 Psig Pressure And 4500 Rpm Speed
661 ft³/min | 44.2 bhp
Performance Data Airflow At 12 Psig Pressure And 5000 Rpm Speed
749 ft³/min | 50.5 bhp
Performance Data Airflow At 15 Psig Pressure And 2500 Rpm Speed
290 ft³/min | 28.5 bhp
Performance Data Airflow At 15 Psig Pressure And 3000 Rpm Speed
380 ft³/min | 34.0 bhp
Performance Data Airflow At 15 Psig Pressure And 3500 Rpm Speed
465 ft³/min | 40.0 bhp
