CYR Class 125 Bronze Check Valve with Y-Pattern Swing Type Disc
CYR Class 125 Bronze Check Valve with Y-Pattern Swing Type Disc
SKU:VAL-a0b367
Reliable CYR Class 125 Bronze Check Valve with Y-Pattern Swing Type Disc for precise flow control in various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CYR Class 125 Bronze Check Valve with Y-Pattern Swing Type Disc
$49.99
Quantity: 1
Claim Your Seller Account
CYR Class 125 Bronze Check Valve with Y-Pattern Swing Type Disc
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CYR Class 125 Bronze Check Valve is a reliable solution for controlling flow with precision. Featuring a screw cap design and integral seat, this valve ensures secure operation. The Y-Pattern swing type disc enhances efficiency and minimizes pressure drop. With a pressure rating of 125 PSI and compatibility with various fluids and steam temperatures, this valve is suitable for a wide range of applications. Manufactured with high-quality materials like cast bronze and forged brass, this valve is durable and long-lasting. Meeting industry standards like MSS SP-80 and military specifications, this valve guarantees performance and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0
No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)
Specifications Approx Net Wt
0.88
Specifications Carton Qty
60
Specifications Class
CYR

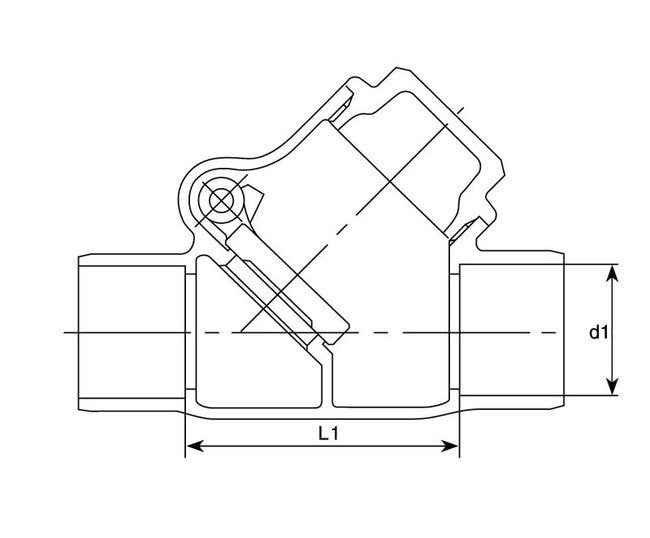

Specifications Dimension D1 Max
0.881
Specifications Dimension D1 Min
0.877
Specifications Dimension D2
3/4 inches
Specifications Dimension H
1.93
Specifications Dimension L
2.76
Specifications Dimension L1
1.88
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
125 PSI - Fluid to 406°F | 125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
