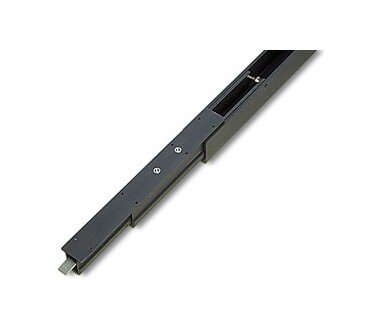

D-1050/D-1054 Extra Heavy Duty Bottom Mount Slide
D-1050/D-1054 Extra Heavy Duty Bottom Mount Slide
SKU:CHA-ce7409
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
D-1050/D-1054 Extra Heavy Duty Bottom Mount Slide
$49.99
Quantity: 1
Claim Your Seller Account
D-1050/D-1054 Extra Heavy Duty Bottom Mount Slide
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Notes 0

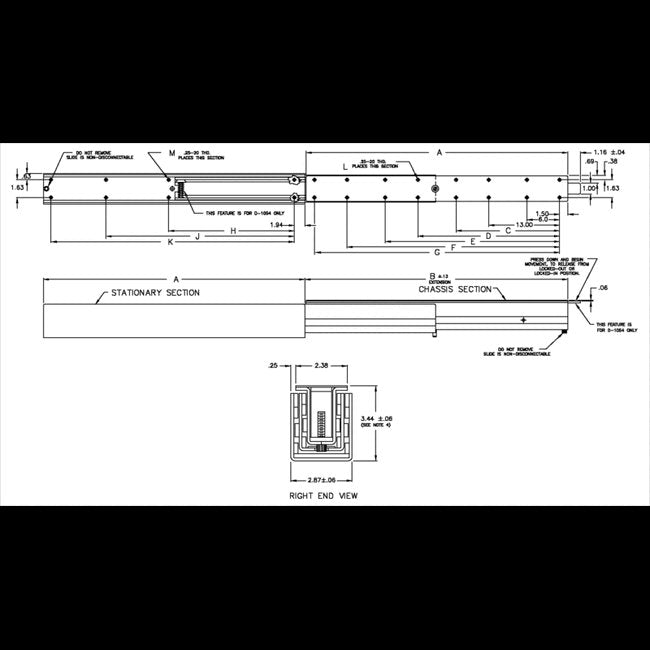

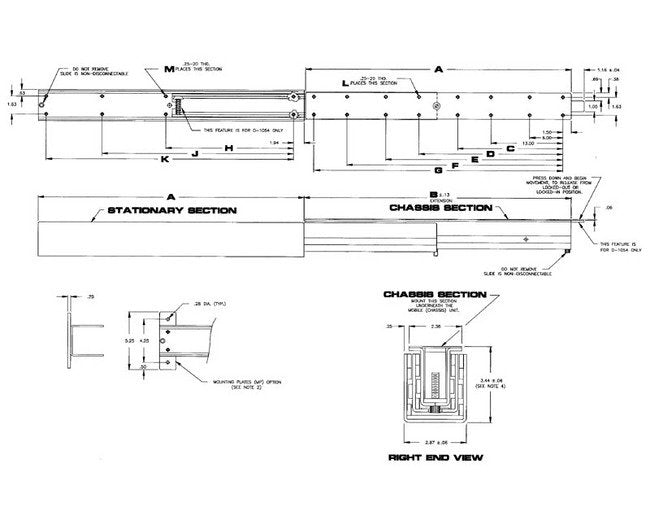

Catalog number D-1054 designates the same slide as D-1050, however, the D-1054 slide locks at the fully closed position (LI) and at the fully extended position (LO). Stationary section is designed for mounting from the bottom (threaded holes). If application requires mounting stationary section from the top side, order optional mounting plates. Slide operates on solid rollers for vertical alignment and ball bearings for horizontal thrust. Measured in the closed (retracted) position. Load capacity is based on one slide at full extension, with load (center of gravity) at midpoint of the slide (chassis section). For increased load capacity, multiply number of slides required for the application. Stated load capacity has a 100% static load (non-moving) safety factor at full extension. Slide is not intended to be operated with continuous loading which exceeds stated capacities. Slide is non-disconnectable. Slide is designed for compression loading only. To prevent internal damage to the slide, maximum mounting screw penetration cannot exceed 0.42 into the stationary section or 0.31 into chassis section. No mounting hardware supplied. Slide members are coated with Poxylube® - a gray-colored dry film lubricant. Slide members are made from 10 gage (0.135) cold rolled steel, and 3/16 C.D. Flat Bar. Non-standard stainless steel slide, coated with Poxylube®, is available. This option will require a special reference number.
Specifications Cold Rolled Steel
10 (0.135) gauge
Specifications Forward Extension B
18.00 in
Specifications Gdi Reference
CD5600-00-0180
Specifications Installation Sheet
Installation Sheet
Specifications Model
D-1050
Specifications Options
Mounting Plate
Specifications Slide Length A
18.00 in
Specifications Spec Sheets
D-1050-1054.pdf
Specifications Weight Capacity
1270 lbs
Specifications Weight Capacity Notes
Load capacity is based on one slide at full extension with the load (center of gravity) at the midpoint of the slide (chassis section). For increased load capacity, multiply the number of slides required for the application. Stated load capacity has a 100% static (non-moving) load safety factor at full extension. Slide is not intended to be operated with continuous loading which exceeds stated capacities.
