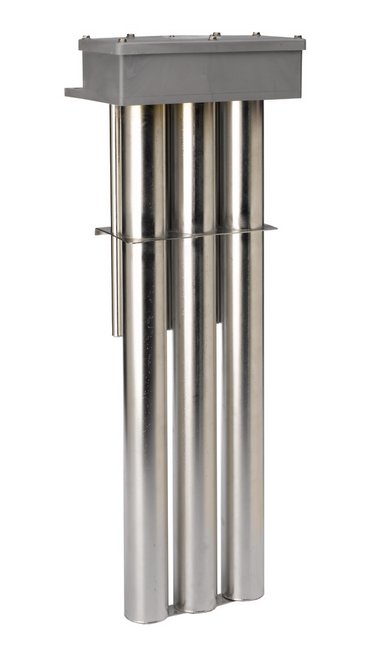

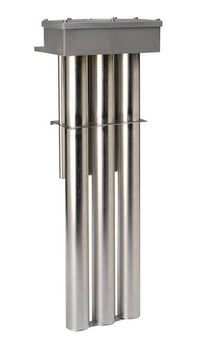

D3 Metal Heaters, 4500W 240V Derated Triple Metal Heaters
D3 Metal Heaters, 4500W 240V Derated Triple Metal Heaters
SKU:HEA-89562f
D3 Series Derated Triple Metal Heaters: Superior chemical resistance, robust construction, and outstanding performance for institutional needs.
Regular price
$879.99
Regular price
Sale price
$879.99
Unit price
per
Initiate Order
D3 Metal Heaters, 4500W 240V Derated Triple Metal Heaters
$879.99
Quantity: 1
Claim Your Seller Account
D3 Metal Heaters, 4500W 240V Derated Triple Metal Heaters
$879.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The D3 Series Derated Triple Metal Heaters are engineered by Process Technology for superior chemical resistance, featuring heavy-duty metal sheaths in 316 stainless steel. With watt densities up to 35 watts per square inch, these heaters ensure outstanding performance and a long service life. Safety is paramount with built-in thermal protectors, replaceable P1 protector, grounded construction, and cULus listing. Suitable for aqueous alkaline solutions, plating, and phosphate tanks, these heaters offer reliability and durability in institutional settings.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:Steel.304 stainless steel.316 stainless steel.Titanium.OUTSTANDING PERFORMANCE:Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protectors built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 1,500 watts to 18,000 watts.VOLTAGES:120 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5:for solutions up to 300°F (149°C)Resettable thermal protectors:P2: for solutions up to 180°F (82°C)P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C)Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Specifications Certifications
cUL US Listed
Specifications Hot Zone
16 " | 406 mm
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single | Three
Specifications Shipping Weight
33.0 Pound
Specifications Volts
240 V
Specifications Watts
4500 W
Specifications Weight
33.0 lbs | 15.0 kg
