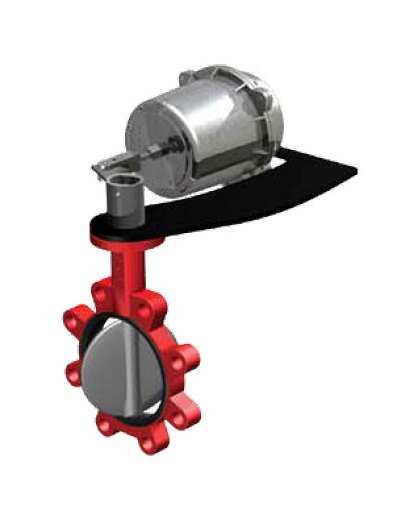

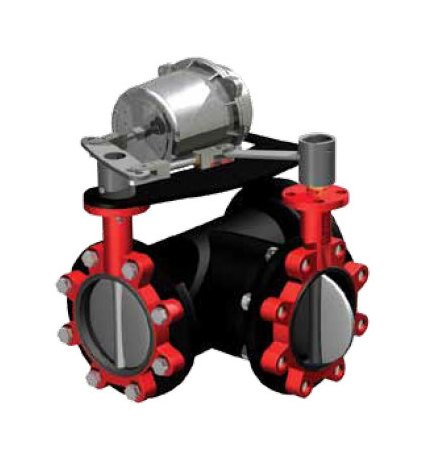

The D3000 Series Low Pressure Pneumatic Actuator is a reliable, long-life solution designed with features like an all-aluminum housing, telescoping linkage, and a 2-way swivel head. With a stroke of 4 inches and effective diaphragm area of 24 in², this actuator ensures full power delivery with a spring range of 8 to 13 psi. Not only does it provide fast, flexible installation and lightweight robustness, but it also meets UL recognized component standards for fire and smoke applications up to 250°F. Over a million of these actuators are currently in service, making it a trusted choice for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuator Air Consumption
2 SCIM
Specifications Ambient Operating Temperature
-20 to 150 ºF | -29 to 66 ºC
Specifications Benefits
Provides a lightweight, robust actuatorProvides fast, flexible installationPlaces over a million actuators now in serviceEnsures full power deliveryProvides a UL recognized component for fire and smoke applications to 250ºF (121ºC)
Specifications Body Material
Die Cast Aluminum
Specifications Diaphragm Material
Synthetic Elastomer
Specifications Effective Diaphragm Area
24 in²
Specifications Features
All-aluminum HousingTelescoping LinkageLong Life and Reliable Design2-way Swivel HeadAgency Recognition
Specifications Maximum Control Pressure
25 psi
Specifications Nominal Control Pressure
20 psi
Specifications Positioner Air Consumption Optional
5 SCIM
Specifications Shipping Weight W Positioner
15 lbs
Specifications Spring Range
8 to 13 psi
Specifications Stroke
4 in
