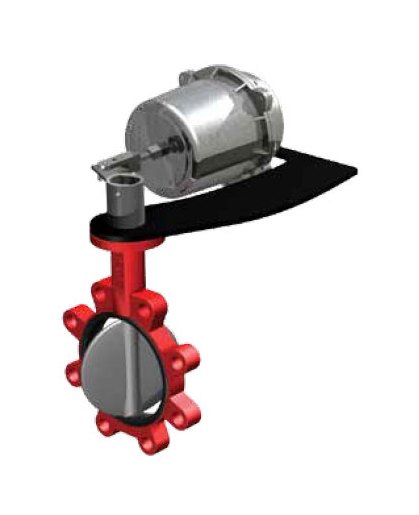

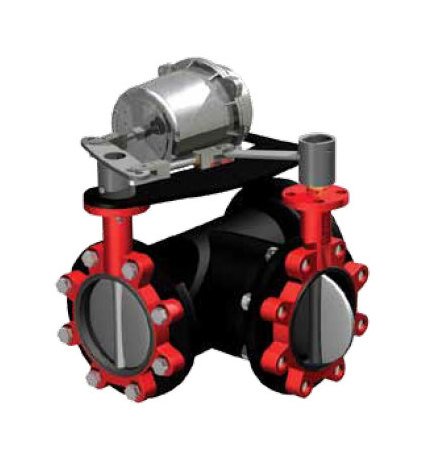

D3000 Series Low Pressure Pneumatic Actuator with Positioner
D3000 Series Low Pressure Pneumatic Actuator with Positioner
SKU:ACT-a6a791
High-performance pneumatic actuator with all-aluminum housing, telescoping linkage, and UL recognition for fire applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
D3000 Series Low Pressure Pneumatic Actuator with Positioner
$349.99
Quantity: 1
Claim Your Seller Account
D3000 Series Low Pressure Pneumatic Actuator with Positioner
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The D3000 Series Low Pressure Pneumatic Actuator with Positioner is a high-performance solution featuring an all-aluminum housing, telescoping linkage, and a long-lasting design. With over a million units in service, this actuator offers lightweight reliability and fast, flexible installation. It provides full power delivery and is UL recognized for fire and smoke applications up to 250°F. Offering a stroke of 6 inches and a maximum control pressure of 25 psi, this actuator ensures efficient operation in a wide range of environments.
Product Specifications
Specifications Actuator Air Consumption
2 SCIM
Specifications Ambient Operating Temperature
-20 to 150 ºF | -29 to 66 ºC
Specifications Benefits
Provides a lightweight, robust actuatorProvides fast, flexible installationPlaces over a million actuators now in serviceEnsures full power deliveryProvides a UL recognized component for fire and smoke applications to 250ºF (121ºC)
Specifications Body Material
Die Cast Aluminum
Specifications Diaphragm Material
Synthetic Elastomer
Specifications Effective Diaphragm Area
24 in²
Specifications Features
All-aluminum HousingTelescoping LinkageLong Life and Reliable Design2-way Swivel HeadAgency Recognition
Specifications Maximum Control Pressure
25 psi
Specifications Nominal Control Pressure
20 psi
Specifications Positioner Air Consumption Optional
5 SCIM
Specifications Shipping Weight W Positioner
15 lbs
Specifications Spring Range
8 to 13 psi
Specifications Stroke
6 in
