D3000 Series Low Pressure Pneumatic Actuator with Positioner
D3000 Series Low Pressure Pneumatic Actuator with Positioner
SKU:ACT-78dbff
High-quality all-aluminum pneumatic actuator with agency recognition and UL approval for fire applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
D3000 Series Low Pressure Pneumatic Actuator with Positioner
$299.99
Quantity: 1
Claim Your Seller Account
D3000 Series Low Pressure Pneumatic Actuator with Positioner
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

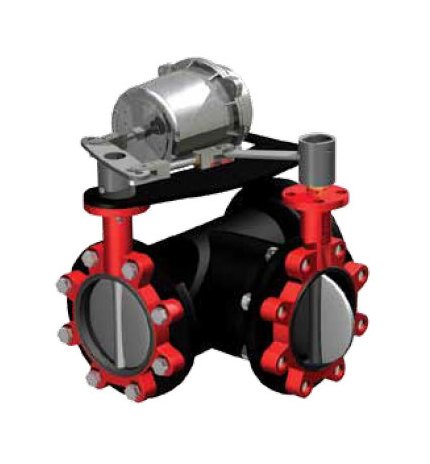

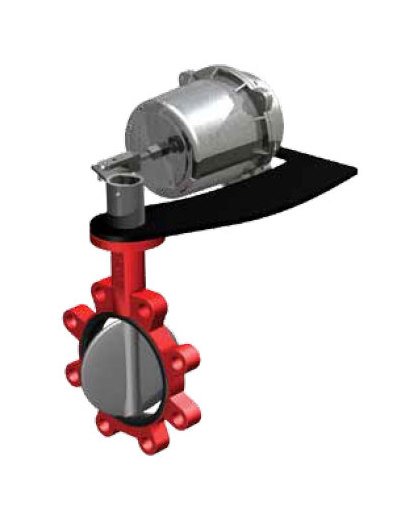

The D3000 Series Low Pressure Pneumatic Actuator with Positioner is a high-quality, reliable actuator designed for exceptional performance. Featuring an all-aluminum housing, telescoping linkage, and a long-life design, this actuator ensures durability and precision. With agency recognition and UL approval for fire and smoke applications, it meets stringent safety standards. The lightweight construction allows for fast and flexible installation, making it an ideal choice for a wide range of applications. Trust the D3000 Series for over a million actuators already in service, delivering full power efficiently and effectively.
Product Specifications
Specifications Actuator Air Consumption
2 SCIM
Specifications Ambient Operating Temperature
-20 to 150 ºF | -29 to 66 ºC
Specifications Benefits
Provides a lightweight, robust actuatorProvides fast, flexible installationPlaces over a million actuators now in serviceEnsures full power deliveryProvides a UL recognized component for fire and smoke applications to 250ºF (121ºC)
Specifications Body Material
Die Cast Aluminum
Specifications Diaphragm Material
Synthetic Elastomer
Specifications Effective Diaphragm Area
24 in²
Specifications Features
All-aluminum HousingTelescoping LinkageLong Life and Reliable Design2-way Swivel HeadAgency Recognition
Specifications Maximum Control Pressure
25 psi
Specifications Nominal Control Pressure
20 psi
Specifications Positioner Air Consumption Optional
5 SCIM
Specifications Shipping Weight W Positioner
15 lbs
Specifications Spring Range
8 to 13 psi
Specifications Stroke
4 in
