D3000 Series Low Pressure Pneumatic Actuator with Telescoping Linkage
$189.99
Quantity: 1
Claim Your Seller Account
D3000 Series Low Pressure Pneumatic Actuator with Telescoping Linkage
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

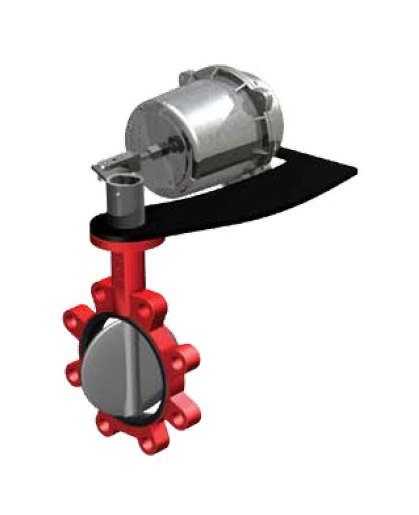

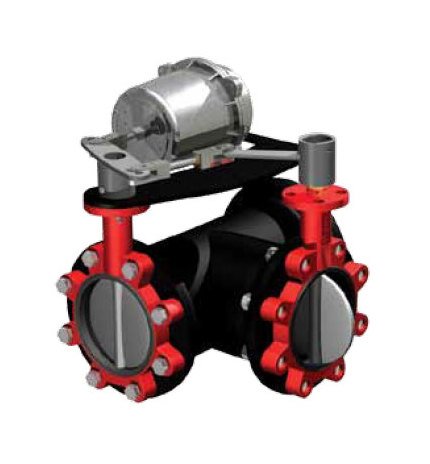

The D3000 Series Low Pressure Pneumatic Actuator with Telescoping Linkage is a reliable and long-lasting solution for pneumatic applications. Featuring an all-aluminum housing, this actuator ensures lightweight yet robust performance. With a stroke of 6 inches and effective diaphragm area of 24 in², it provides full power delivery at maximum control pressure of 25 psi. Additionally, it meets UL recognized component standards for fire and smoke applications up to 250°F (121°C), making it a safe and efficient choice for various industrial settings.
Product Specifications
Specifications Actuator Air Consumption
2 SCIM
Specifications Ambient Operating Temperature
-20 to 150 ºF | -29 to 66 ºC
Specifications Benefits
Provides a lightweight, robust actuatorProvides fast, flexible installationPlaces over a million actuators now in serviceEnsures full power deliveryProvides a UL recognized component for fire and smoke applications to 250ºF (121ºC)
Specifications Body Material
Die Cast Aluminum
Specifications Diaphragm Material
Synthetic Elastomer
Specifications Effective Diaphragm Area
24 in²
Specifications Features
All-aluminum HousingTelescoping LinkageLong Life and Reliable Design2-way Swivel HeadAgency Recognition
Specifications Maximum Control Pressure
25 psi
Specifications Nominal Control Pressure
20 psi
Specifications Positioner Air Consumption Optional
5 SCIM
Specifications Shipping Weight W Positioner
15 lbs
Specifications Spring Range
8 to 13 psi
Specifications Stroke
6 in
