D3000 Series Low Pressure Pneumatic Actuator with Telescoping Linkage
D3000 Series Low Pressure Pneumatic Actuator with Telescoping Linkage
SKU:ACT-37e461
High-quality pneumatic actuator with aluminum housing and telescoping linkage for precise control.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
D3000 Series Low Pressure Pneumatic Actuator with Telescoping Linkage
$249.99
Quantity: 1
Claim Your Seller Account
D3000 Series Low Pressure Pneumatic Actuator with Telescoping Linkage
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

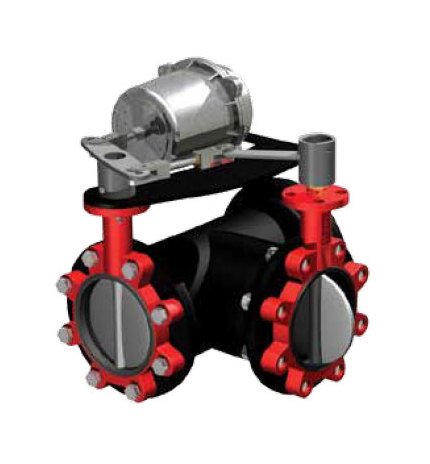

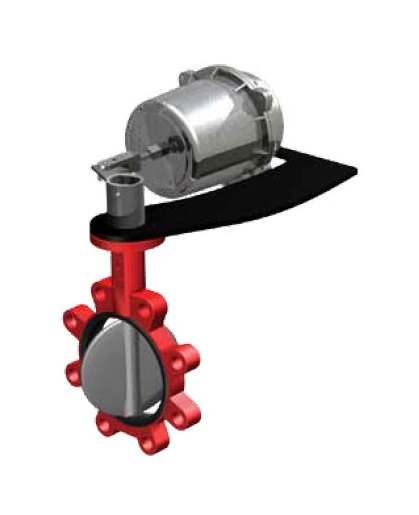

The D3000 Series Low Pressure Pneumatic Actuator is a high-quality solution for pneumatic control applications. Featuring an all-aluminum housing and telescoping linkage, this actuator is designed for long life and reliable performance. With a 3-inch stroke and effective diaphragm area of 15 in², it provides precise control within a spring range of 8 to 13 psi. Ideal for fire and smoke applications, it is UL recognized up to 250°F (121°C). Easy to install and lightweight, this actuator has been rigorously tested and is trusted in over a million service installations.
Product Specifications
Specifications Actuator Air Consumption
2 SCIM
Specifications Ambient Operating Temperature
-20 to 150 ºF | -29 to 66 ºC
Specifications Benefits
Provides a lightweight, robust actuatorProvides fast, flexible installationPlaces over a million actuators now in serviceEnsures full power deliveryProvides a UL recognized component for fire and smoke applications to 250ºF (121ºC)
Specifications Body Material
Die Cast Aluminum
Specifications Diaphragm Material
Synthetic Elastomer
Specifications Effective Diaphragm Area
15 in²
Specifications Features
All-aluminum HousingTelescoping LinkageLong Life and Reliable Design2-way Swivel HeadAgency Recognition
Specifications Maximum Control Pressure
25 psi
Specifications Nominal Control Pressure
20 psi
Specifications Positioner Air Consumption Optional
5 SCIM
Specifications Shipping Weight W Positioner
10 lbs
Specifications Spring Range
8 to 13 psi
Specifications Stroke
3 in
