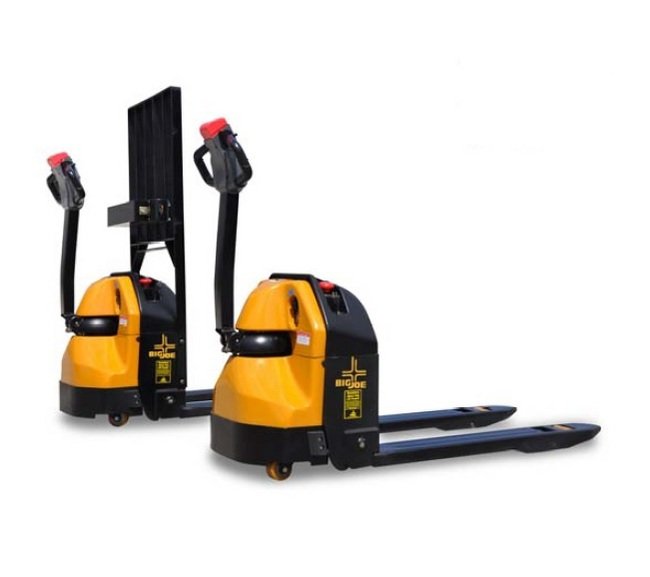

The D40 Series 21.5x33 Electric Power Pallet Truck by Big Joe® offers exceptional maneuverability and efficiency for lift gate and local delivery applications. With a weight capacity of 4000 lb, this compact truck features a durable construction, ergonomic operator handle with intuitive controls, and advanced drive unit technology for optimal performance. The integral battery/charger system ensures continuous operation, while the hydraulic components are designed for easy serviceability. Ideal for tight spaces and heavy loads, this electric pallet truck combines reliability and functionality to streamline material handling operations.
Product Specifications
Accessibility
Water resistant removal three piece power head cover exposes major components and maintenance free AGM batteries for inspection and maintenance.
Drive Unit
Vertically mounted AC drive motor is direct mounted to gear housing. Oil bathed hypoid bevel gear drive train with tapered roller bearings transfers power to axle.State of the art optimized gear technology supplies advantages such as minimal envelope circle, zero maintenance, low noise level, high efficiency and high performance.Electromagnetic brake is mounted on motor armature shaft multiplying the braking power through the transmission. Brake is applied when control arm is in the vertical or horizontal handle position. System features anti-roll back and neutral braking.
Electrical
Electric braking, quick disconnect EPD power cut off, key switch and battery discharge indicator are standard equipment.
Hydraulics
Lift cylinder has hard chrome plated rods. Pump unit including motor, solenoid, gear pump, and pressure compensated lowering valve are mounted high in the power compartment for ease of service.
Optional Equipment
Rubber Lug Drive Tire48" Tall Load Back Rest60" Tall Load Back RestFork Width - 22"Fork Length - 36"Tool tray with Load Restraint

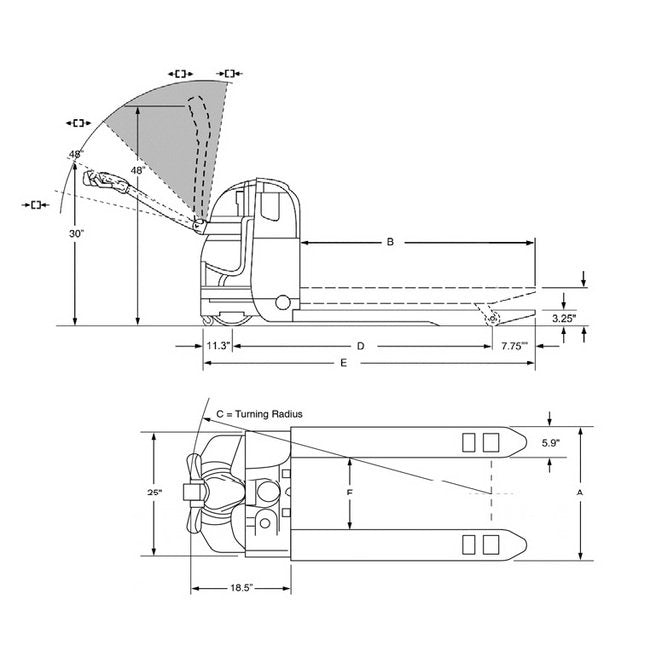

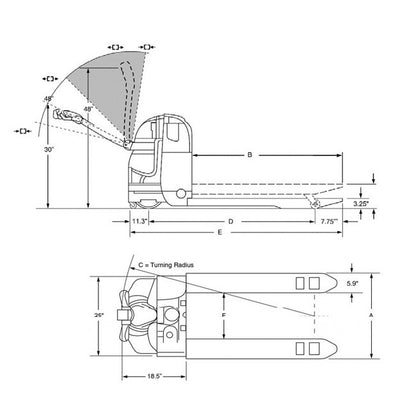

Technical Specs Actual Fork Length B
33 in
Technical Specs Actual Fork Width A
21.5 in
Technical Specs Brands
Big Joe®
Technical Specs Capacity
4000 lb
Technical Specs Forks Size
22 x 36 in
Technical Specs Gradeability Without Load
10 %
Technical Specs Gradeability With Load
6 %
Technical Specs Inside Fork Width F
9.7 in
Technical Specs Integral Batterycharger
(2) 12-Volt Absorbed Glass Matt (AGM) 85AH maintenance free batteries with 10 AMP 110VAC plug-in automatic charger.
Technical Specs Overall Length E
52 in
Technical Specs Tires
Drive9" x 3" polyurethaneStability Casters3.3" x 1.9" polyurethaneLoad2.9" x 3.5" polyurethane
Technical Specs Travel Speed
24-Volt ZAPI ACO Travel ControllerVariable from 0 mph to 3.6 mph emptyVariable from 0 mph to 3.5 mph loaded
Technical Specs Travel Variable Empty
0 to 3.6 mph
Technical Specs Travel Variable Loaded
0 to 3.5 mph
Technical Specs Truck Model
D40
Technical Specs Turning Radius C
45.5 in
Technical Specs Weight
635 lb
Technical Specs Weight With Battery And Charger
600 lb
Technical Specs Wheelbase D
32.95 in
Tiller Arm Controls
Travel, lift, and lower functions are located in the ergonomic operator handle. All operator controls are accessible without having to lift the hand from the handle.Angle grips are designed to allow easy operation with either hand. Wrap around guard, reversing switch, thumb control, and horn are standard. Low mounted tiller arm offers excellent operator comfort and minimum steering effort. Gas assisted spring tiller handle gently returns to vertical position when released.Crawl speed function with steer handle at 15º back-tilt from vertical allows for ease of use in tight areas.
