Dake Floor Model Variable Speed Drill Press
Dake Floor Model Variable Speed Drill Press
SKU:DRI-e61bd8
Experience precision drilling with the Dake Floor Model Variable Speed Drill Press, equipped with manual and semi-automatic spindle feed.
Regular price
$3,459.99
Regular price
Sale price
$3,459.99
Unit price
per
Initiate Order
Dake Floor Model Variable Speed Drill Press
$3,459.99
Quantity: 1
Claim Your Seller Account
Dake Floor Model Variable Speed Drill Press
$3,459.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

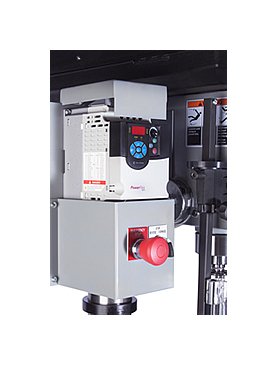

The Dake Floor Model Variable Speed Drill Press is a versatile and robust machine designed for precision drilling tasks. This drill press features a manual and semi-automatic spindle feed, allowing for flexibility in operation. With a simple twist of the knob on the frequency inverter, operators can easily adjust the speed while drilling, aided by the LED indicator for accurate speed readout. The forward and reverse selector switch is ideal for tapping applications, and the quick belt tension release enables quick speed range changes. This floor model drill press is equipped with a locking handle hub for repeatable depth, CE safety electrical package, a large diameter sturdy spindle, and a massive cast head, ensuring reliability and efficiency in industrial settings.
Product Specifications
Standard Equipment Standard Equipment
Keyed 5/8â chuckDrift (for bit removal)Plexiglas chip & chuck guard
Technical Specs Base Depth
23-5/8
Technical Specs Base Width
15 in
Technical Specs Brands
Dake
Technical Specs Column Diameter
3-5/8 in
Technical Specs Drill Capacity
1 in
Technical Specs Electrics
120 V | 1 pH
Technical Specs Motor Horse Power Hp
2 hp
Technical Specs Number
77700 to 1V
Technical Specs Overall Height
71 in
Technical Specs Spindle Base
49-1/4
Technical Specs Spindle Feed
Automatic
Technical Specs Spindle Speeds
Variable
Technical Specs Spindle Speed Range
68 to 1380 rpm
Technical Specs Spindle Table
28-3/8 in
Technical Specs Spindle Taper
MT3
Technical Specs Spindle Travel
5 in
Technical Specs Table Depth
13-3/4
Technical Specs Table Width
13-3/4
Technical Specs Weight
500 lb
Technical Specs Working Diameter
18 in
