Dansensor® Lippke® 5000 Package Testing System
Dansensor® Lippke® 5000 Package Testing System
SKU:PRO-bad2ad
Efficiently test seal strength and package integrity with the Dansensor® Lippke® 5000 Package Testing System. Compliant with ASTM and ISO standards, it delivers precise and reproducible results.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Dansensor® Lippke® 5000 Package Testing System
$8,999.99
Quantity: 1
Claim Your Seller Account
Dansensor® Lippke® 5000 Package Testing System
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

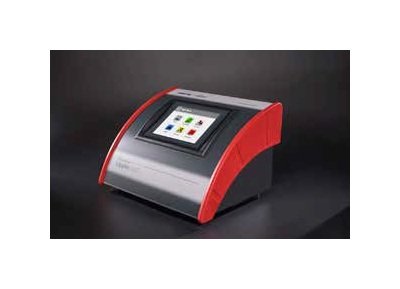

The Dansensor® Lippke® 5000 Package Testing System is a cutting-edge bench-top instrument tailored to rigorously assess seal strength and package integrity across various materials, from flexible to laminated foil. Empowered by advanced features like optimized pressure regulation, swift test cycles, and an intuitive touch screen interface, this system ensures precise testing in compliance with ASTM and ISO standards. With enhanced data management capabilities, USB connectivity, and the option for PC software integration, the Dansensor® Lippke® 5000 guarantees reproducible results crucial for both production and lab settings.
Product Specifications
Accessories Accessories

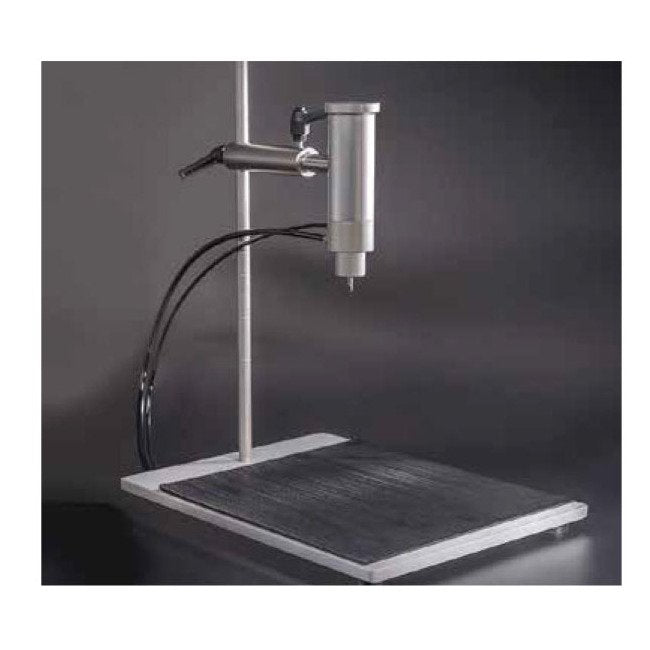

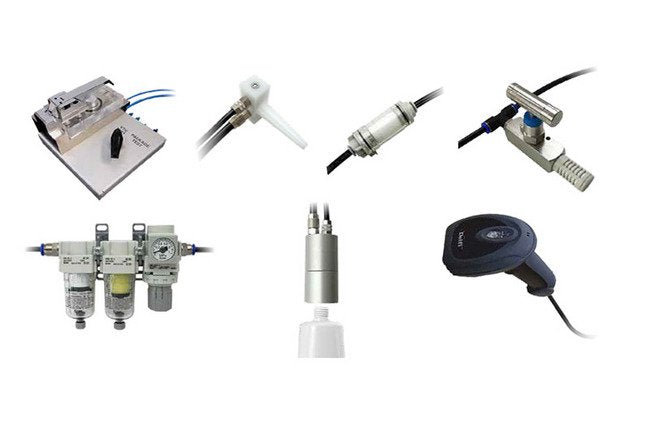

Item Name - Test Heads Description - Both the handheld and stand-mounted test heads feature an integrated sense probe and can be combined with either a sharp or blunt 4 mm needleItem Name - Test Needles Description - Other handheld needle options include: dual needles for feed and sense and a mono needle with Y-connectorItem Name - Basic Stand Description - The test head can be combined with a sharp or blunt needle or a tube adaptorItem Name - Pneumatic Package Clamp (PPC 300 II) Description - Perform burst tests on most types of packages, bags or pouches that are open on one sideItem Name - Restraining Plates Description - Fixture for ASTM F2054 restraining - restrains the package to ensure the pressure affects the package sealing's in the correct wayItem Name - Septa Description - A septum ensures an airtight seal and protects the package from tearing. Different types of septa are suited to different packages and needles.Item Name - Additional Accessories Description - Clockwise from top left: Valve Test Unit (VTU) for degassing valves, IV-bag adaptor, Feed tube filter, Pressure release valve, Barcode reader (USB), Tube adaptor (for threaded connectors), Pressure regulator incl. filter
Additional Information Additional Information
Monitoring package integrity is vital in many industries: e.g. Medical (maintaining product sterility), Pharmaceutical (meeting standards and protecting product effectivity) and Food (ensuring food safety and maintaining freshness).The Dansensor® Lippke 5000 offers many improvements over earlier models, including shorter fill times, higher pressures and minimized over-shoot. Data import and export have been made easier with an integrated USB port, cloning and back-up functions and optional accessories, like a barcode scanner and printer.The graphic user interface gives access to many features and settings. Optional PC software provides additional data graphing and statistical analysis capabilities.Dansensor® Lippke 5000 provides exact, definable and reproducible test results - both in production and laboratory environments.
Benefits Benefits
Optimized pressure regulation and fill times Improved accuracy and short test cycles Visual display of test results Pump feature easily inflates flat packages Broad 1-5 bar pressure rangeEasy installation and data sharing
Dimensions And Weight Depth
9.3 in | 236.5 mm
Dimensions And Weight Height
7.3 in | 185 mm
Dimensions And Weight Weight
3.4 kg | 7.5 lb
Dimensions And Weight Width
11.2 in | 284 mm
Features Features
New, improved measuring algorithm Test heads with integrated sense probe Touch screen with multilingual GUI Data capture, storage & export on all units USB port for optional barcode scanner, label printer or keyboard Compliant with ASTM and ISO standards IQ/OQ available PC software option for: FDA 21 CFR, part 11 compliance, test reports (PDF), graphs, combined test, interface with SQL database
Specifications Air Connection Standards
German Institute for Standardization (DIN) International Standardization for Organization (ISO) 8573-1:2010 [F4:4:3]
Specifications Air Supply Pressure
4.0 to 6.5 bar
Specifications Air Tube Diameter
4 mm | 6 mm
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Ambient Pressure
900 to 1050 mbar
Specifications Compliances
China Restriction of Hazardous Substances (RoHS) II | European Conformity (CE)
Specifications Data Collection Capacity
Test Data from More than 1,000,000 Tests
Specifications Data Collection Type
Exported to Comma Separated Values (CSV) File
Specifications Displayed Resolution
0-1000:0.1 mbar | 1000-5000:1 mbar
Specifications Frequency
47 to 63 Hz
Specifications High Measuring Range
350 to 5000 mbar | 5.0 to 72.5 psi
Specifications High Range Accuracy
0.07 psi
Specifications High Range Accuracy Tolerance
5 mbar
Specifications High Range Reading Accuracy Tolerance
0.5 %
Specifications Ingress Protection Ip Class
Ingress Protection (IP20)
Specifications Local Area Network Lan Connectivity
RJ-45 Ethernet 10/100 Mbit/s, DHCP client or fixed IP
Specifications Low Measuring Range
10 to 350 mbar | 0.15 to 5.0 psi
Specifications Low Range Accuracy
0.007 psi
Specifications Low Range Accuracy Tolerance
0.5 mbar
Specifications Low Range Reading Accuracy Tolerance
0.5 %
Specifications Maximum Air Consumption
100 L/min
Specifications Maximum Power
40 W
Specifications Measuring Range
10 to 5000 mbar | 0.15 to 72.5 psi
Specifications Non Condensing Relative Humidity For 30 To 35 Deg
10 to 50 %
Specifications Number Of Test Definitions
300
Specifications Operational Ambient Temperature
+2 to +35 ºC
Specifications Package Types
Flexible | Rigid | Semi-Rigid
Specifications Relative Humidity For 25 To 30 Degree Celsius C T
10 to 70 %
Specifications Relative Humidity For 2 To 25 Degree Celsius C Te
10 to 90 %
Specifications Standards
American Society for Testing and Materials (ASTM) F-1140 | American Society for Testing and Materials (ASTM) F-2054 | American Society for Testing and Materials (ASTM) F-2095 | American Society for Testing and Materials (ASTM) F-2096 | International Organization for Standardization (ISO) 11607
Specifications Test Package Size
1 to 90000 mL
