Dansensor CheckMate 4 O2 Headspace Gas Analyzer
Dansensor CheckMate 4 O2 Headspace Gas Analyzer
SKU:PRO-a29052
Advanced O2 Headspace Analyzer for precise, fast measurements in food & healthcare applications. Compliant with RoHS II & CE.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Dansensor CheckMate 4 O2 Headspace Gas Analyzer
$2,899.99
Quantity: 1
Claim Your Seller Account
Dansensor CheckMate 4 O2 Headspace Gas Analyzer
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

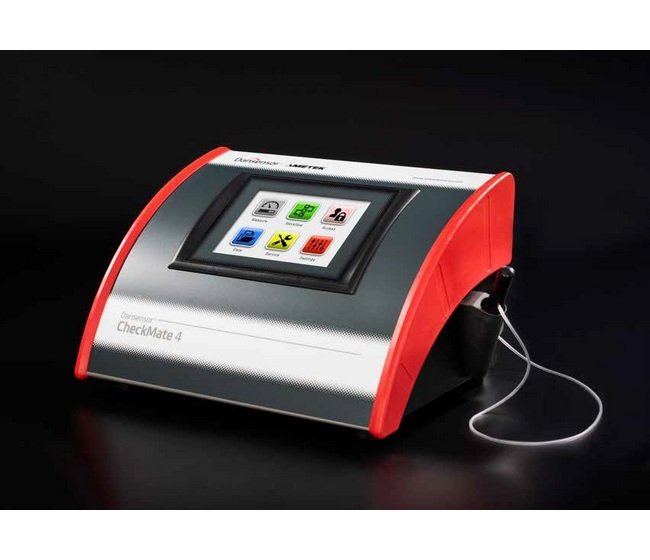

The Dansensor CheckMate 4 O2 Headspace Gas Analyzer is a top-tier tabletop instrument designed for maximum uptime and precision. With a multilingual touchscreen for user-friendly operation, this analyzer ensures data security and traceability through individual user logins. Its fast and accurate oxygen sensor, along with a wide measuring range and high data collection capacity, makes it ideal for food and healthcare applications. The CheckMate 4 complies with RoHS II and CE directives, offering reliable and efficient oxygen analysis to meet institutional procurement standards.
Product Specifications
Additional Information Additional Information

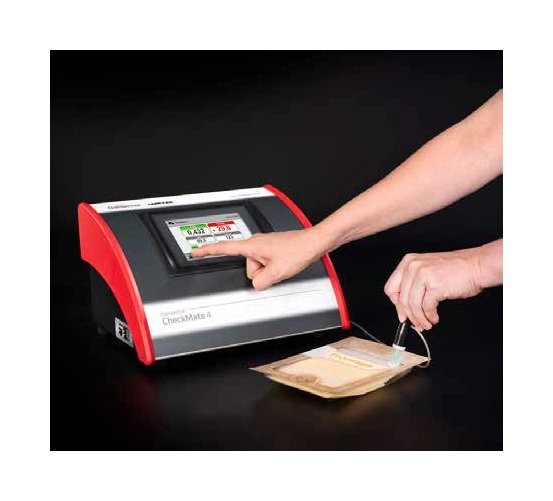

Automated data storage and real time data transfer ensure accuracy and speed by eliminating the time and risk associated with manual data entry. Optional PC software makes it easy to monitor data across multiple packaging lines and prepare for audits.The Dansensor CheckMate 4 includes an improved sample system and pump to avoid blockages and ensure smooth operation. The instrumentâs sensor module can be upgraded to a newly calibrated module on-site in minutes. (Service options vary by country).Identify the correct test program by scanning the productâs barcode or manually selecting the correct test definition.Place a septum on the package and insert the needle through the septum, into the package. Start the test with the touch of a buttonDuring the test, a small sample of the headspace gas is analyzed. The result is automatically stored on the unit.Test results can be printed on an optional printer or exported via LAN (real time transfer) or a USB drive. Import the data to Dansensor CheckMate 4 PC software or to your own database for analysis.
Benefits Benefits
Reliable, accurate measurements protect your product and brandIncrease efficiency with short test times and automated data loggingEasy to use with intuitive touchscreenMaximize uptime with improved pump and sample systemReduce errors with defined test programs, automated data handling and user logins
Features Features
O2 or combined O2 /CO2 headspace measurements - flexible configurationVery small sample gas volumeSave test settings for quick changes and comparable resultsData storage and real time data transferFast and secure LAN connectionTouchscreen with multilingual graphic interfaceIndividual user logins provide security and reduce risk of errorsAlarm alerts when pre-set gas limits exceededUSB port for connecting optional barcode scanner, keyboard or printer
Power Supply And Consumption Alternating Current Ac Voltage
100 to 240 V
Power Supply And Consumption Frequency
47 to 63 Hz
Power Supply And Consumption Maximum Power
70 W
Specifications Accuracy
Over 1% O2±1% of Readout | Under 1% O2 ±0.01%
Specifications Applications
Most food and healthcare applications
Specifications Calibration And Service Sensor Lifetime Depends O
12 months
Specifications Compliances
China Restriction of Hazardous Substances Directive (RoHS) ll | European Conformity (CE)
Specifications Connections
LAN: RJ-45 Ethernet 10/100 Mbit/s, DHCP client or fixed IPUSB: 1 x Host, USB 2.0 Type A; 1 x Device, USB 2.0 Type B (max current 500 mA)
Specifications Consumables And Accessories
Septa, filters, needles, sample hose (kit), CheckMate 4 PC software, SmartPen retractable needle, can piercer for testing cans and wine bottles, barcode scanner
Specifications Data Collection Capacity
Log results of up to 1,000,000 tests
Specifications Data Export
Stored data to CSV file (USB) or real time data transfer CSV-string per test (RJ-45). Compatible with CheckMate 4 PC software, Microsoft SQL database and other select third party software.
Specifications Depth
240 mm | 9.4 in
Specifications Heating Time
10 min
Specifications Height
187 mm | 7.4 in
Specifications Key Features
Fastest and most accurate oxygen sensor
Specifications Measuring Range
0 to 100 %
Specifications Minimum Sample Time
3 seconds
Specifications Minimum Sample Volume
2 mL
Specifications Number Of Product Test Settings
999
Specifications Operational Ambient Temperature
0 to +35 ºC
Specifications Operational Relative Humidity Rh Non Condensing
10 to 90 %
Specifications Resolution Over 10 Percent O2
0.01 %
Specifications Resolution Under 10 Percent O2
0.001 %
Specifications Storage Ambient Temperature
-20 to +60 ºC
Specifications Storage Relative Humidity Rh Non Condensing
Less than 95 %
Specifications Warranty
12 months
Specifications Weight
4.2 kg | 9.3 lb
Specifications Width
305 mm | 12 in
