Dansensor CheckPoint 3 Portable Gas Analyzer for O2 Ceramic Solid-State Sensor
Dansensor CheckPoint 3 Portable Gas Analyzer for O2 Ceramic Solid-State Sensor
SKU:PRO-68a83e
Cutting-edge gas analyzer for accurate O2 & CO2 monitoring in modified atmosphere packages.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Dansensor CheckPoint 3 Portable Gas Analyzer for O2 Ceramic Solid-State Sensor
$2,499.99
Quantity: 1
Claim Your Seller Account
Dansensor CheckPoint 3 Portable Gas Analyzer for O2 Ceramic Solid-State Sensor
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

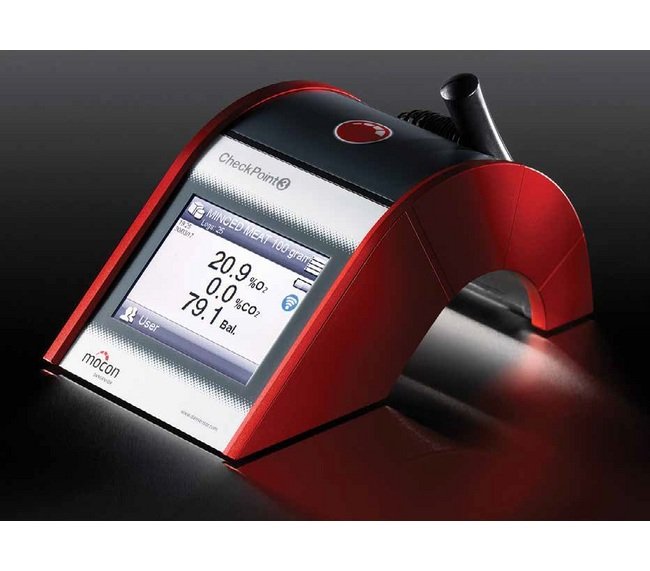

The Dansensor CheckPoint 3 Portable Gas Analyzer is a cutting-edge solution for quality control of Modified Atmosphere Packages (MAP). With advanced WiFi connectivity, this analyzer allows for quick and accurate monitoring of O2 and CO2 levels in packages of any shape or size. Featuring intuitive operation via a color touchscreen, two O2 sensor options, data transfer via WiFi, and a comprehensive data package option, this analyzer ensures seamless testing traceability and transparency. It is designed for maximum portability, accuracy, and cost-effectiveness, making it ideal for institutional and production environments requiring precise gas analysis.
Product Specifications
Benefits Benefits
No PC software requiredEasy to useImproves MAP quality controlBetter process efficiencyGreater business transparencySecures your brandâs reputationHighest level of portable analyzerLow cost of ownership
Dimensions And Weight Depth
175 mm
Dimensions And Weight Height
75 mm
Dimensions And Weight Weight
0.7 kg
Dimensions And Weight Width
100 mm
Features Features
Two O2 sensor options ensure compatibility with all applicationsO2 or combined O2/COO2 measurementsGas flow alarmData collection/transfer via WiFiFast processingEasy-to-read 3.5" color touchscreenUses standard, low-cost needlesOptional stainless steel needlesData package, 1 million data logs (optional)Protection cover (optional)Multiple languagesGraphic statistics
How Does It Work How Does It Work

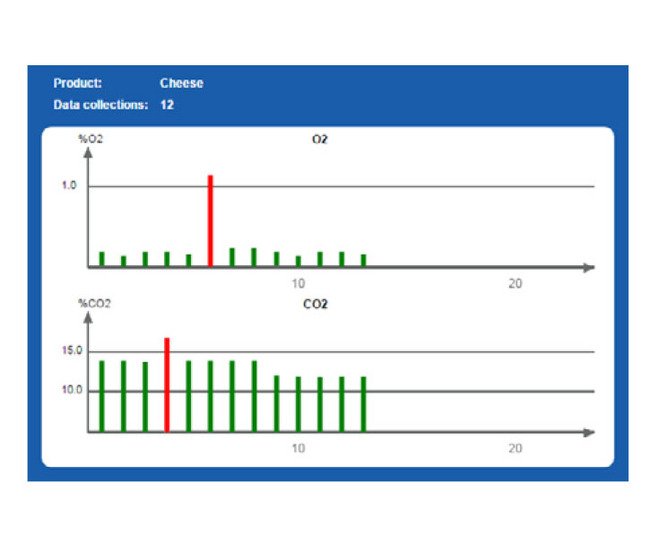

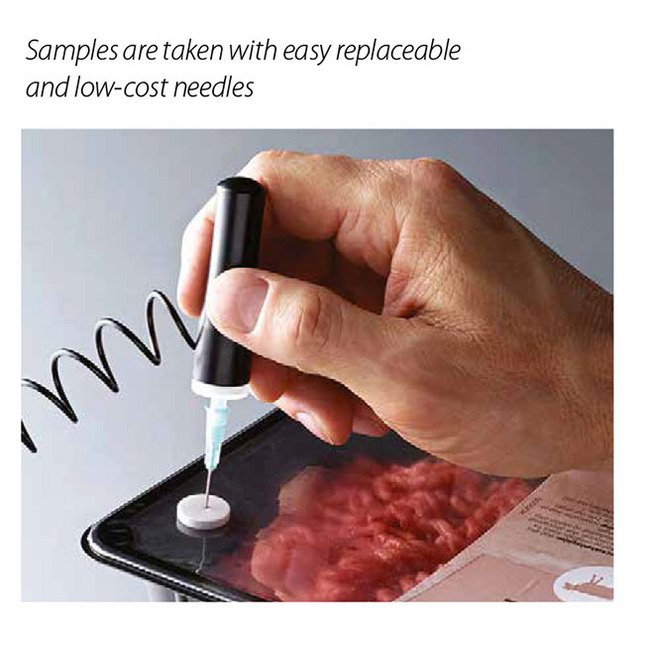

Insert needle into the package through the septum. Start test with one touch button.A sample will be drawn into the sensor. A few seconds later the Dansensor® CheckPoint 3 will tell you the O2 and CO2 level inside the package.Result can be collected manually or automatically. Stored data can be transferred via WiFi to your company database.The web interface provides statistic data for various documentation purposes.
Note Note
No upgrade possible from Dansensor® CheckPoint 3 Premium to Dansensor® CheckPoint 3 Premium with data pack.Specifications subject to change without notice. Further specifications are available in the User Guide.
Specifications Calibration And Service
12 months
Specifications Compatibility
China Restriction of Hazardous Substances (RoHS) | European Conformity (CE) | Restriction of Hazardous Substances (RoHS)
Specifications Connections
Wi-Fi Protected Access (WPA) 2 | Wi-Fi Protected Access (WPA) Enterprise)) | Wireless Fidelity (WiFi) (Wi-Fi Protected Access (WPA
Specifications Data Package
Extended Memory - Up to 1 Million Measurements
Specifications Expected Sensor Lifetime
> 3 years
Specifications Food Applications
Beverage | Cheese | Fish (Raw and Prepared) | Meat (Processed) | Prepared Meals | Snack Foods | Vegetables (Raw and Prepared)
Specifications Heating Time
5 s
Specifications Measuring Range
0 to 55 %
Specifications Minimum Sample Time
7 s
Specifications Minimum Sample Volume
5 mL
Specifications Non Condensing Relative Humidity Rh
Less than 95 %
Specifications Options
Standard consumable kit (1 sampling kit, 1000 septums, 10 needles (Ã 0.8) & 10 water trap filters), metal needles
Specifications Power Supply
Battery powered; up to 2000 measurements on a fully charged battery at 20 ºC; recharge time maximum 5 hours
Specifications Products
1
Specifications Readings
1
Specifications Resolution
0.1% Oxygen
Specifications Sensor Accuracy
±(0.1% O2 + 2% of Readout)
Specifications Users
1
Specifications What Is Included In The Box
10 Needles (Ã 0.8) | 10 Water Trap Filters | 100 Septums | Power Supply with Interchangeable Plugs (US, EU, AU, UK)
Specifications Working Temperature
0 to +40 ºC
