Dansensor CheckPoint 4 Portable Headspace Analyzer CO2 Infrared Sensor
Dansensor CheckPoint 4 Portable Headspace Analyzer CO2 Infrared Sensor
SKU:PRO-fb60d4
Cutting-edge portable Headspace Analyzer for precise O2 and CO2 measurement in MAP products.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
Dansensor CheckPoint 4 Portable Headspace Analyzer CO2 Infrared Sensor
$2,399.99
Quantity: 1
Claim Your Seller Account
Dansensor CheckPoint 4 Portable Headspace Analyzer CO2 Infrared Sensor
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

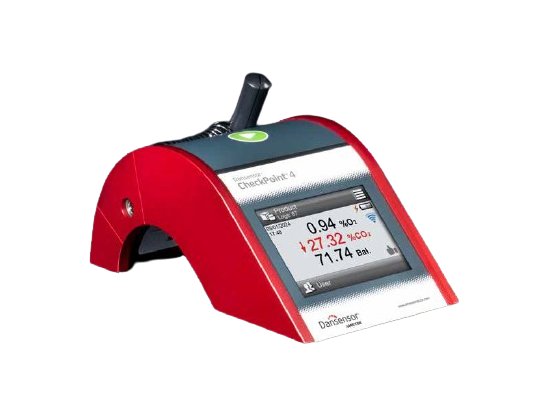

The Dansensor CheckPoint 4 Portable Headspace Analyzer is a cutting-edge solution for precise quality control in Modified Atmosphere Packages (MAP). This advanced analyzer accurately measures O2 and CO2 levels, ensuring fast and reliable quality assessments for various products. Featuring intuitive touchscreen operation, multilingual interface, and robust construction, it streamlines operations, reduces errors, and boosts productivity. With WiFi data export, energy-efficient design, and durable components, it offers unmatched reliability, ease of use, and eco-friendly performance, making it ideal for institutional and consumer applications.
Product Specifications
Additional Information Additional Information
Premium models offer data traceability and security with individual user logins, product definitions, and reliable storage of up to one million readings. Transfer data directly via WiFi, eliminating the need for vulnerable paper records.Dansensor® CheckPoint® 4 is perfect for manufacturers looking for a robust and reliable portable quality control instrument to use at their packaging line.
Benefits Benefits
Highest reliability of any portable headspace analyzerQuick and easy to useEco-friendly sensors - RoHS compatibleConvenient cordless designDurable and robust for production environmentsAffordable quality controlTrusted manufacturer and service provider for over 40 years
Dimensions And Weight Depth
175 mm
Dimensions And Weight Height
77 mm
Dimensions And Weight Weight
0.7 kg
Dimensions And Weight Width
100 mm
Features Features
O2 or combined O2 /CO2 measurementsDifferent sensor options ensure compatibility with all applicationsEasy-to-read touchscreen with 10 language options minimizes training time and risk of errorsGas flow alarm (visual)Energy-saving auto shutdownConvenient, robust charging portOptional protective coversUse standard, low-cost needles
How Does It Work How Does It Work

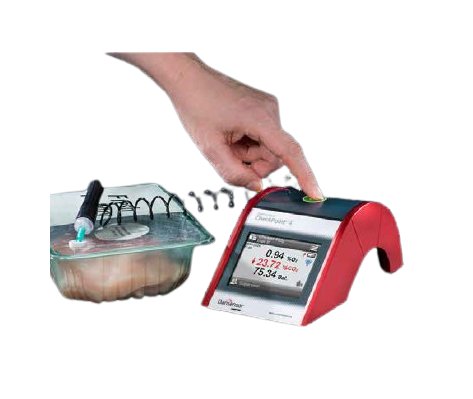

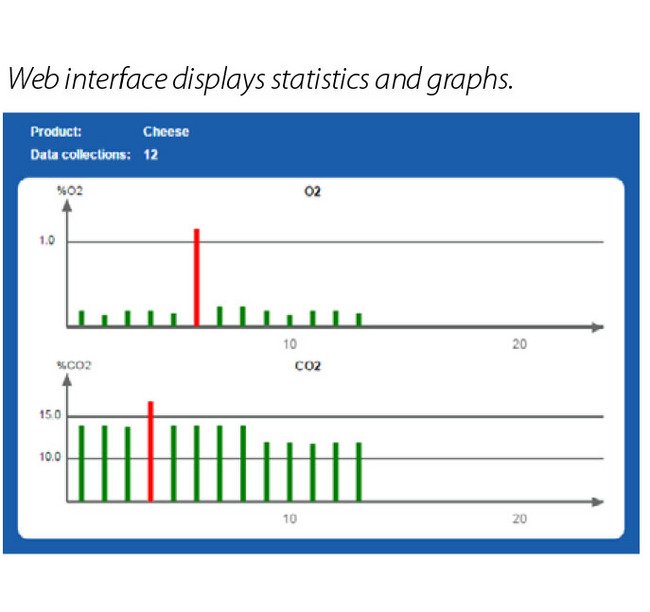

Insert the needle into the package through the septum and start test with the touch of a button.Within seconds, the Dansensor® CheckPoint® 4 displays the O2 or O2 and CO2 levels inside the package.On Premium models, data is saved to the instrument and can be transferred to your database via WiFi for traceability. The optional web interface provides statistical data for documentation.
Note Note
Specifications subject to change without notice.
Premium Features Premium Features
Data collection and transfer via WiFiStore up to 100 user profiles, 1000 products, and 1 million readings
Technical Specifications Accuracy
±2% CO2 in Range 0 to 20% | ±3% CO2 in Range 20 to 100%
Technical Specifications Applications
Most food applications with carbon dioxide
Technical Specifications Calibration And Service
12 months
Technical Specifications Compliances
China Restriction of Hazardous Substances Directive (RoHS) | European Conformity (CE) | Restriction of Hazardous Substances Directive (RoHS)
Technical Specifications Consumables And Accessories
Standard consumable kit (1 sampling kit, 1000 septa, 10 needles (Ã 0.8) & 10 water trap filters), metal needles, can piercer for testing cans
Technical Specifications Data Export
WiFi (WPA, WPA 2, WPA enterprise)
Technical Specifications Measuring Range
0 to 100 %
Technical Specifications Minimum Sample Time
7 seconds
Technical Specifications Minimum Sample Volume
5 mL
Technical Specifications Operational Ambient Temperature
0 to +40 ºC
Technical Specifications Operational Relative Humidity Rh Non Co
10 to 90 %
Technical Specifications Power Supply
Battery powered; up to 2000 measurements on a fully charged battery at 20 °C; recharge time maximum 5 hours
Technical Specifications Resolution
0.01% Carbon Dioxide
Technical Specifications Storage Relative Humidity Rh Non Conden
Less than 95 %
Technical Specifications Warranty
12 months
Technical Specifications What Is Included In The Box
10 Needles (Ã 0.8) | 10 Water Trap Filters | 100 Septa | Power Supply with Interchangeable Plugs (US, EU, AU, UK, CN)
