Dansensor CO2 Gas Analyzer - MAP Check 3 On-Line Sensor
Dansensor CO2 Gas Analyzer - MAP Check 3 On-Line Sensor
SKU:PRO-d38901
Enhance MAP efficiency with Dansensor CO2 Gas Analyzer - MAP Check 3 On-Line Sensor. Precision control, reduced costs, and real-time monitoring.
Regular price
$6,500.00
Regular price
Sale price
$6,500.00
Unit price
per
Initiate Order
Dansensor CO2 Gas Analyzer - MAP Check 3 On-Line Sensor
$6,500.00
Quantity: 1
Claim Your Seller Account
Dansensor CO2 Gas Analyzer - MAP Check 3 On-Line Sensor
$6,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

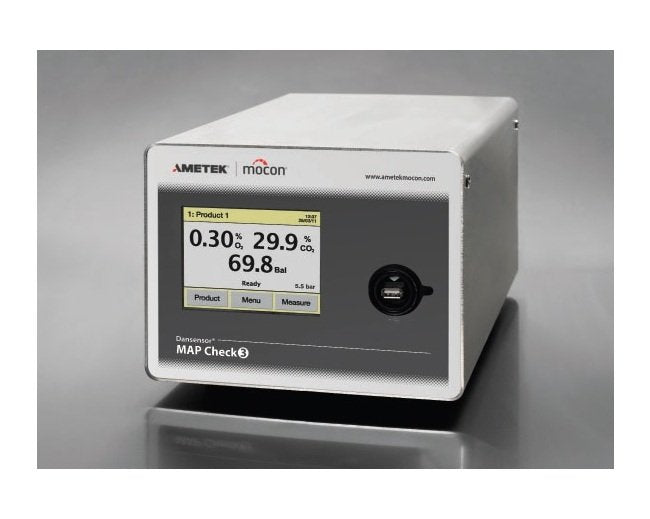

The Dansensor CO2 MAP Check 3 On-Line Gas Analyzer is a precision instrument designed to optimize gas consumption in Modified Atmosphere Packaging (MAP) processes. With a temperature-controlled dual-beam infrared CO2 sensor and 0-100% range, it ensures accurate gas dosing to reduce production costs. This analyzer offers real-time control of gas flushing via the advanced GasSave function, enhancing quality assurance on flow packaging machines.
Product Specifications
Additional Information Additional Information
For most manufacturers, this translates into a 20-50% decrease in gas consumption! It also improves reliability and efficiency. Unlike random, off-line quality control, on-line quality assurance with the Dansensor® MAP Check 3 means that every package is tested - more quickly and efficiently than with manual testing. If there is a problem, production stops automatically, helping to avoid recalls or the need to repack entire batches.
Benefits Benefits
Significant gas savings when paired with the optional GasSave function Dansensor® MAP Mix Provectus gas mixer.Logs and displays actual gas consumption for easy traceability with GasSave option.Reduces labor costs and waste compared to manual testing.Avoids recalls and repacking by automatically stopping production when preset limits are exceeded.Reduces work area CO2 levels to protect employees.
Features Features
5 Inch (in) color touch screen.Excellent data logging capabilities with Universal Serial Bus (USB) and Ethernet.Fully integratable with Dansensor® MAP Mix Provectus gas mixer.Delivered with PC software.Option: 3-channel multiplexer.Extended remote monitoring and control options with Modbus TCP.
How Does It Work How Does It Work
Before running the Dansensor® MAP Check 3 for the first time, enter individual product programs on the analyzer for each product to be packed on the machine. Thereafter, simply select the correct program to automatically set the correct alarm and target gas levels. When the packaging machine is running, Dansensor® MAP Check 3 continuously measures the residual oxygen and/or carbon dioxide. If the oxygen or carbon dioxide levels near the preset limits, Dansensor® MAP Check 3 notifies the operator. If the limits are exceeded, Dansensor® MAP Check 3 stops the packaging machine.If equipped with GasSave or connected to the Dansensor® MAP Mix Provectus, Dansensor® MAP Check 3 automatically adjusts the gas flushing of your product, according to the residual oxygen. This prevents incorrect residual oxygen levels and reduces gas costs.
Note Note
Specifications subject to change without notice.
Specifications Accuracy
± 0.5% absolute | ± 1.5% relative of reading
Specifications Alternating Current Ac Voltage
103 to 132 V | 207 to 264 V
Specifications Available Sensors
CO2-Sensor
Specifications Bracket Assembly
Can be combined with MAP Mix Provectus and MAP Check 3 Pressure: 2 brackets, 8 screws.
Specifications Compliances
European Conformity (CE)
Specifications Connections
2 x RS232C| Local (LAN) 10/100 Mbit (Modbus TCP)| Universal Serial Bus (USB)| Current or Voltage Output| 24 VDC Logic for Machine Control Signals and Alarms
Specifications Depth
375 mm
Specifications Display Size
5 in
Specifications Display Type
Color Touch Screen
Specifications Flow Measuring
Total and daily consumption.
Specifications Frequency
47 to 63 Hz
Specifications Gas Flow
6 to 500 L/min
Specifications Gas Inlet Pressure
2 to 10 bar
Specifications Gas Media
Any mix of dry O2, CO2, N2 or Ar (0°C to +50°C gas temperature)
Specifications Heating Time
8 min
Specifications Height
192 mm
Specifications Key Features
Temperature controlled dual beam infrared carbon dioxide sensor, 0 - 100% range
Specifications Models
Available with Liquid Crystal Display (LCD) display or as "Black Box" without display
Specifications Number Of Inputs
3
Specifications Pressure Drop At 10 Bar Input Pressure
Example: 1 bar at 10 bar input pressure
Specifications Protection Kit
Ingress Protection (IP45) National Electrical Manufacturers Association (NEMA 3S)
Specifications Weight
8.5 to 11.5 kg
Specifications Width
230 mm
