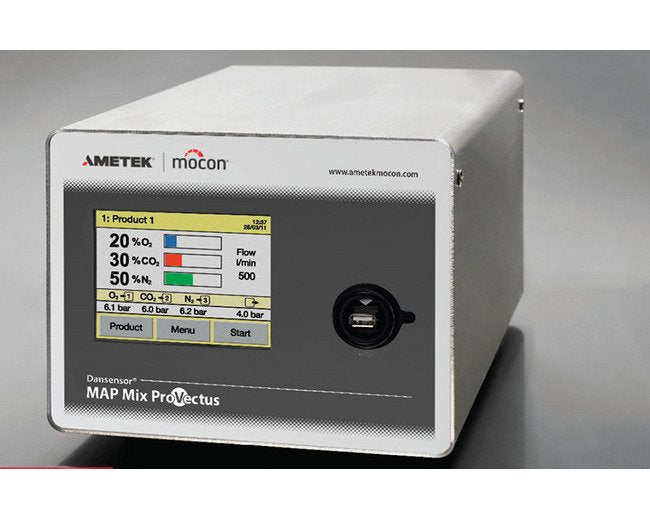

Dansensor Gas Mixer Pro
Dansensor Gas Mixer Pro
SKU:PRO-999653
Revolutionary gas mixer with intuitive touch screen, data-rich feedback, and versatile gas mixing capabilities.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Dansensor Gas Mixer Pro
$5,899.99
Quantity: 1
Claim Your Seller Account
Dansensor Gas Mixer Pro
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dansensor Gas Mixer Pro is a cutting-edge solution for precise gas mixing, offering 2 or 3-gas configurations with an intuitive touch screen interface. This innovative mixer guarantees accuracy, reliability, and rich data feedback including gas flow, consumption, and mix ratios. With features like data logging, various connectivity options, and compatibility with multiple gas media, it simplifies operation, enhances efficiency, and meets stringent industry standards.
Product Specifications
Benefits Benefits
Uses an intuitive touch screen for easy set-up and operation Meets traceability requirements by storing accurate information about current gas flow, consumption over time and gas mix Avoids operator errors with programming of up to 10 standard gas mixes Integrates fully with the Dansensor® MAP Check 3 gas analyzer for ultimate eff effectiveness Helps reduce gas cost on flow packaging machines when used in combination with Dansensor® MAP Check 3
Features Features
Data logging of consumption, date, time and gas mix Very low pressure drop over the mixer, making it suitable for working with nitrogen and oxygen generators USB, Ethernet (LAN), RS232, Modbus TCP connections for data logging and control Mixes oxygen, nitrogen, carbon dioxide, air and argon (optional)
How Does It Work How Does It Work
After unpacking, use the intuitive touch screen to easily program the mixer according to the gasses connected and the desired gas mixture. The Dansensor® MAP Mix Provectus can be programmed with up to 10 preset gas mixtures for easy change of gas mix by the operator.During operation,the Dansensor® MAP Mix Provectus ensures the correct gas mixture for the application and keeps the operator informed about inlet pressure, outlet pressure and gas flow. In case of any irregularities, the mixer alerts the operator.The Dansensor® MAP Mix Provectus provides operators and quality personnel with vital information about actual gas consumption, inlet and outlet pressure and gas mixture. Best of all, everything can be logged and transferred to a PC or an external data warehouse.
Note Note
Specifications subject to change without notice.
Specifications Additional Information
Despite its compact size, the Dansensor® MAP Mix Provectus delivers an outstanding flow of up to 1500 liters per minute. If you require a higher flow rate, you can bridge up to three mixers and triple the capacity.
Specifications Alternating Current Ac Voltage
103 to 132 V | 207 to 264 V
Specifications Bracket Assembly
Can be combined with MAP Check 3 Vacuum and MAP Check 3: 2 brackets, 8 screws.
Specifications Compliances
European Conformity (CE)
Specifications Connections
2 x RS232C| LAN 10/100 Mbit (Modbus TCP)| USB| 24 VDC Logic for Start/Stop and Alarm
Specifications Depth
375 mm
Specifications Flow Measuring
Total and daily consumption.
Specifications Flow Range For Best Case Mix For 2 Gases At N2 50
12 to 1000 L/min
Specifications Flow Range For Best Case Mix For 3 Gases At N2 34
18 to 1470 L/min
Specifications Flow Range For Mix1 For 2 Gases At N2 80
30 to 625 L/min
Specifications Flow Range For Mix1 For 3 Gases At N2 70
60 to 714 L/min
Specifications Flow Range For Mix2 For 2 Gases At N2 60
15 to 833 L/min
Specifications Flow Range For Mix2 For 3 Gases At N2 70
300 to 714 L/min
Specifications Flow Range For Worst Case Mix For 2 Gases At N2 9
300 to 509 L/min
Specifications Flow Range For Worst Case Mix For 3 Gases At N2 8
300 to 568 L/min
Specifications Frequency
47 to 63 Hz
Specifications Gas Flow Per Gas String
6 to 500 L/min
Specifications Gas Inlet Pressure
2 to 10 bar
Specifications Gas Media
Any mix of dry O2, CO2, N2, air or Ar (optional) (0°C to +50°C gas temperature)
Specifications Height
192 mm
Specifications Mixer Accuracy
± 2% absolute in flow ranges above 50 L/min total output flow. Argon: ± 2% absolute at argon flow > 50 bar
Specifications Mixer Configurations
2-gas or 3-gas models available, with LCD display or as "Black-Box" without display
Specifications Mixer Setting Range
0 % | 2 to 100 %
Specifications Note For Power Supply
24 VDC models available (excl. MAP Mix Provectus Argon)
Specifications Operating Modes
Buffer or flow configuration, selectable in software and by installation
Specifications Output Gas Flow
Total output flow up to: 1000 L/min (2-gas) and 1500 L/min (3-gas) depending on mixture setting.
Specifications Pressure Drop
Example: 1 bar at 10 bar input pressure
Specifications Protection Kit
Ingress Protection (IP45) National Electrical Manufacturers Association (NEMA 3S)
Specifications Weight
12.0 to 14.0 kg
Specifications Width
230 mm
