Dansensor LeakMatic II In-line Leak Tester - 260mm Height with Packfix
Dansensor LeakMatic II In-line Leak Tester - 260mm Height with Packfix
SKU:PRO-144a3f
Ensure seal integrity with precision using Dansensor LeakMatic II In-line Leak Tester. Safeguard your brand reputation and reduce costs with automated non-destructive testing.
Regular price
$28,900.00
Regular price
Sale price
$28,900.00
Unit price
per
Initiate Order
Dansensor LeakMatic II In-line Leak Tester - 260mm Height with Packfix
$28,900.00
Quantity: 1
Claim Your Seller Account
Dansensor LeakMatic II In-line Leak Tester - 260mm Height with Packfix
$28,900.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

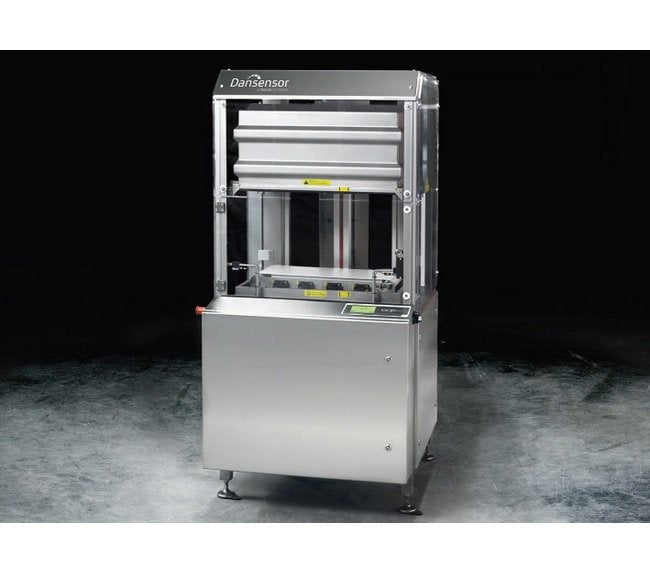

The Dansensor LeakMatic II is a cutting-edge in-line leak tester designed to ensure seal integrity in Modified Atmosphere Packages (MAP). With a non-destructive testing technique using an optical sensor, it detects leaks with precision, safeguarding your brand's reputation and reducing packaging costs. Its automated operation, data logging capabilities, and user-friendly touch screen interface make it a reliable solution for continuous quality assurance. Backed by a 3-year CO2 sensor warranty, this system brings efficiency and peace of mind to your packaging line.
Product Specifications
Additional Information Additional Information
Designed to meet the growing demand for fresher foods, the Dansensor® LeakMatic II can be integrated right into your packaging line - right after product boxing. The system ensures seal integrity of entire boxes of MAP products at a speed of up to 4 cycles per minute.Ready to move up to efficient, continuous in-line leak testing? Can you afford not to?
Benefits Benefits
Less product returns.Less claims.Safer brand image.
Features Features
Optical sensor.No heating time.Data logging of measurement data.Fully automated non-destructive testing.Easy operation via touch screen.3-year CO2 sensor warranty.
How Does It Work How Does It Work
An individual test program is created for each product to be tested, ensuring that the right test parameters are set for each product.In operational mode the Dansensor® LeakMatic II will automatically signal the feeding conveyor belt when ready for a new test. Operation is entirely automatic once the product program has been selected.During the test a user-defined vacuum is drawn causing a pressure difference between the packages and the chamber - in turn causing CO2 to leak into the chamber. The full test cycle takes 12-15 seconds depending on the product.If a leak is detected, a signal is sent to a package rejection unit and the package is automatically rejected.
Note Note
Specifications subject to change without notice. Further specifications are available in the User Guide.
Specifications Alternating Current Ac Voltage
400 V
Specifications Approximate Weight
450 kg
Specifications Cabinet Depth
1050 mm
Specifications Cabinet Height
1825 mm
Specifications Cabinet Width
880 mm
Specifications Compliances
European Conformity (CE)
Specifications Connections
2 x RS232 for Printer | PC Connection
Specifications Maximum Depth Without Packfix
330 mm
Specifications Maximum Depth With Packfix
310 mm
Specifications Maximum Height Without Packfix
260 mm
Specifications Maximum Height With Packfix
260 mm
Specifications Maximum Width Without Packfix
390 mm
Specifications Maximum Width With Packfix
390 mm
Specifications Note For Start Up Time
After standby: 20 seconds.
Specifications Notice
The LeakMatic is delivered without safety shielding, conveyors and rejection unit.
Specifications Number Of Product Set Ups
16
Specifications Package Sizes
Small
Specifications Package Types
Flexible, non-flexible packages. Individual packages or complete shipping crates
Specifications Relay Outputs
All relay outputs: Max 48V/1A, "system ready", "ready to test product", "test OK", "leak"
Specifications Sensor Type
Optical Sensor
Specifications Start Up Time After Power On
1 min
Specifications Test Pressure
Down to 300 mbar absolute
Specifications Test Speed
Up to 4 cycles per minute
