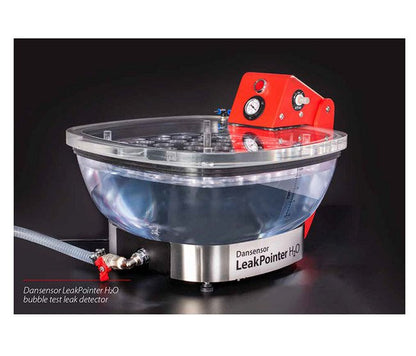

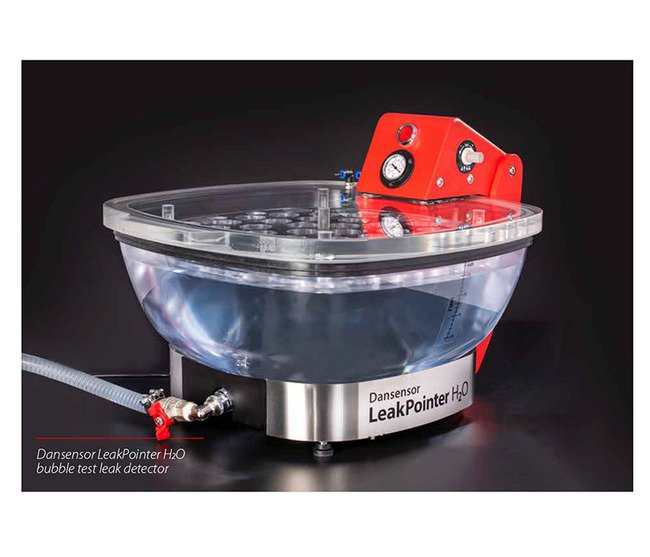

Ensure package integrity with the Dansensor LeakPointer H2O Bubble Leak Detection System. Conduct visual leak tests on various packages with ease. This system features adjustable pressure, compliant with ASTM D3078, and ergonomic design for operator safety and convenience.
Product Specifications
Additional Information Additional Information

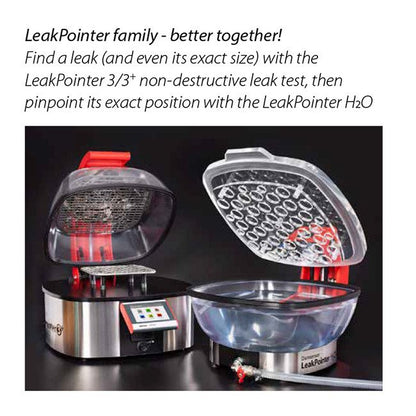

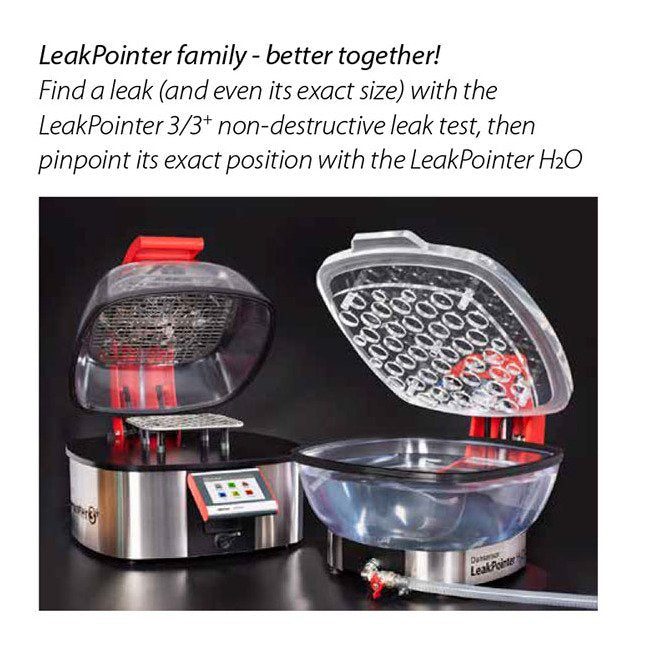

The instrument is easy to empty and clean. No messy overfill, no heavy lifting to fill or clean the instrument, and no hard-to-reach corners! The Dansensor® LeakPointer® H2O is the perfect addition to your quality control process. It can be used alone or, for the ultimate leak detection solution, use it in tandem with the Dansensor® LeakPointer® 3 or 3+.
Benefits Benefits
Test package integrity and find exactly where leaks are locatedTest packages with or without headspace, regardless of gas mixtureErgonomically designed for operator safety and convenienceMounted lid avoids mess and requires no extra table spaceEasy to clean with self-draining, removable tubSimple installation and operationNo adjustment required for different package sizes or types
Dimensions And Weight Open Lid Depth
640 mm | 25.2 in
Dimensions And Weight Open Lid Height
720 mm | 28.3 in
Dimensions And Weight Open Lid Weight
22 kg | 48.5 lb
Dimensions And Weight Open Lid Width
526 mm | 20.7 in
Dimensions And Weight Tub Depth
400 mm | 15.7 in
Dimensions And Weight Tub Height
150 mm | 5.9 in
Dimensions And Weight Tub Volume
25 L | 6.6 gal
Dimensions And Weight Tub Width
400 mm | 15.7 in
Features Features

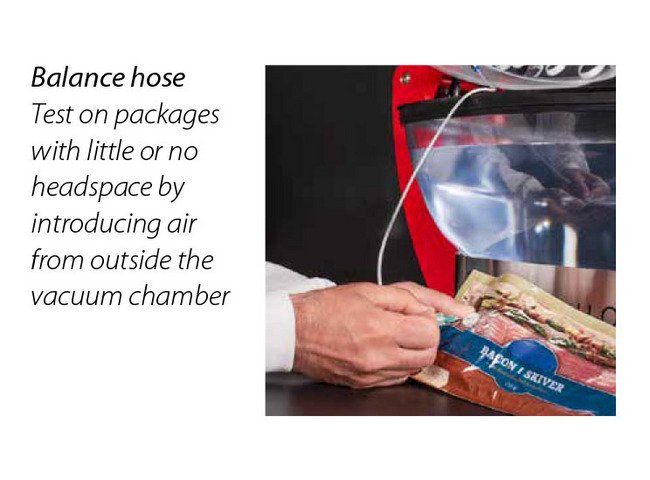

Mounted, pneumatic lid - opens/closes effortlessly and stops messy drippingEasy-clean removable, rounded tubQuick-release hose to fill or empty the tub without heavy liftingEasy-to-read vacuum gaugeBalance hose allows testing on all types of packagesAdjustable pressure -50 to -800 mbarVacuum generation with compressed air (no electrical connection)Reversible tub gives convenient access to drain valve, front or backComplies with ASTM D3078Optional digital pressure meter ensures accurate testing, even on difficult packages
How Does It Work How Does It Work

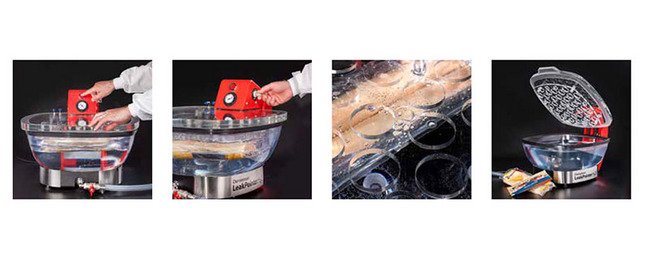

Place packages into the tub, hold the lid closed and start the test to fill the tub with water.When the water level reaches the hole plate, close the drain hose valve.The package will balloon under the pressure and leaks become visible with the release of bubbles from the package; adjust the pressure as required.Stop the test by pushing the button once more; the lid will open automatically and you can remove the packages. This test complies with ASTM D3078.Add the optional Digital Pressure Meter for a successful test every time, even on rigid, flat packages that don't expand under pressure or packages with easy open seals which can't withstand high pressures.
Specifications Air Connection Standards
German Institute for Standardization (DIN) International Standardization for Organization (ISO) 8573-1:2010 [F4:4:3]
Specifications Air Supply Pressure
6.0 to 7.0 bar
Specifications Air Tube Diameter
4 mm | 6 mm
Specifications Compliances
China Restriction of Hazardous Substances (RoHS) II | European Conformity (CE)
Specifications Fill Time With Vacuum Fill
Up to 1 Min.
Specifications Industry Standards
American Society for Testing and Materials (ASTM) D3078
Specifications Maximum Air Consumption
185 L/min
Specifications Package Types
Flexible | Rigid | Semi-Rigid
Specifications Test Package Size
Smaller than Tub Dimensions
Specifications Test Time
Unlimited (Control Manually)
Specifications Test Types
Bubble Test
Specifications Vacuum Pressure
-50 to -800 mbar | -0.7 to -11.6 psi
