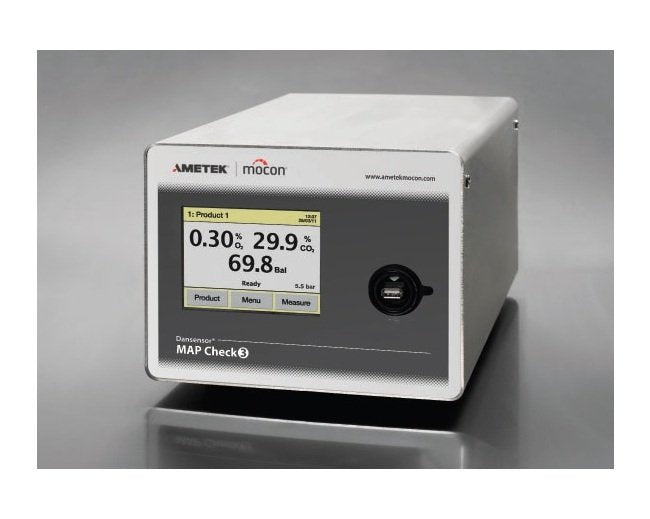

Dansensor MAP Check 3 CO2 Pressure Analyzer
Dansensor MAP Check 3 CO2 Pressure Analyzer
SKU:PRO-f7cade
Cutting-edge CO2 Pressure Analyzer for precise gas mix assurance. Color touch screen, data logging, and CE compliant.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
Dansensor MAP Check 3 CO2 Pressure Analyzer
$1,399.99
Quantity: 1
Claim Your Seller Account
Dansensor MAP Check 3 CO2 Pressure Analyzer
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dansensor MAP Check 3 CO2 Pressure Analyzer is a cutting-edge gas analyzer designed for quality assurance of pressurized gas mixes. With a temperature-controlled dual-beam infrared carbon dioxide sensor and 0-100% range, this analyzer offers ± 0.5% absolute accuracy. It features a 5" color touch screen, excellent data logging capabilities, and the ability to work with inlet pressures from 2-10 bar (30-145 psi). With compliance to European Conformity (CE) standards, this analyzer ensures the right gas mix is supplied to your process, providing traceability and control over your gas mix.
Product Specifications
Additional Information Additional Information
With the ability to measure both oxygen and carbon dioxide, it can measure the balance between the gases, while checking your gas mixture for oxygen impurities. The Dansensor® MAP Check 3 Pressure also provides traceability. It has internal data storage capabilities, as well as ethernet, USB and serial connections for external data storage. The Dansensor® MAP Check 3 Pressure works perfectly in tandem with the Dansensor® MAP Mix Provectus gas mixer. By letting the Dansensor® MAP Check 3 Pressure monitor the output of the gas mixer, you will be in complete control of your gas mix. If anything goes wrong with the gas mix, the Dansensor® MAP Check 3 Pressure stops the gas mixer.
Benefits Benefits
Ensures that the right gas mix is supplied to your process.Logs and displays actual gas mix.Works with inlet pressures from 2-10 bar (30-145 psi).Can stop your process before the wrong gas mix is supplied.
Features Features
5" color touch screen.Excellent data logging capabilities with USB, Ethernet, TCP Modbus.Optional integrated control of the Dansensor® MAP Mix Provectus gas mixer.
How Does It Work How Does It Work
Before running the Dansensor® MAP Check 3 Pressure for the first time, enter the exact tolerances for the gas mixture you wish to achieve. Both upper and lower values can be entered for each gas.During operation, the Dansensor® MAP Check 3 Pressure continuously measuresthe oxygen and/or carbon dioxide levels in your gas mix.If the oxygen or carbon dioxide level nears the preset limits, Dansensor® MAP Check 3 Pressure notifies the operator. If the limits are exceeded, Dansensor® MAP Check 3 Pressure stops the process.
Note Note
Specifications subject to change without notice.
Specifications Accuracy
± 0.5% absolute | ± 1.5% relative of reading
Specifications Alternating Current Ac Voltage
103 to 132 V | 207 to 264 V
Specifications Available Sensors
Dansensor® MAP Check 3 Carbon Dioxide (CO2) Sensor
Specifications Bracket Assembly
Can be combined with MAP Check 3 and MAP Check Vacuum: 2 brackets, 8 screws.
Specifications Compliances
European Conformity (CE)
Specifications Connections
2 x RS232C | 24 VDC Logic for Start/Stop of Process and Alarms | Current or Voltage Output | LAN 10/100 Mbit (Modbus TCP) | Universal Serial Bus (USB)
Specifications Depth
375 mm
Specifications Display Size
5 in
Specifications Display Type
Color Touch Screen
Specifications Frequency
47 to 63 Hz
Specifications Gas Inlet Pressure
2 to 10 bar | 30 to 145 psi
Specifications Gas Media
Dry, clean and non-corrosive gasses
Specifications Heating Time
8 min
Specifications Height
192 mm
Specifications Key Features
Temperature controlled dual beam infrared carbon dioxide sensor, 0-100% range
Specifications Models
Oxygen only, carbon dioxide only or combined oxygen and carbon dioxide
Specifications Protection Kit
Ingress Protection (IP45) National Electrical Manufacturers Association (NEMA 3S)
Specifications Weight
8.5 to 11.5 kg
Specifications Width
230 mm
