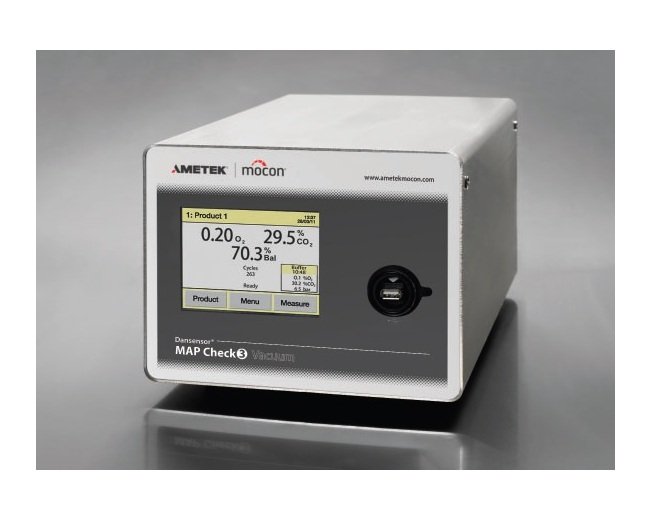

Dansensor MAP Check 3 Vacuum Gas Analyzer
Dansensor MAP Check 3 Vacuum Gas Analyzer
SKU:PRO-285ab9
Enhance production efficiency with the Dansensor MAP Check 3 Vacuum Gas Analyzer, ensuring precise gas composition in Modified Atmosphere Packages (MAP).
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Dansensor MAP Check 3 Vacuum Gas Analyzer
$7,499.99
Quantity: 1
Claim Your Seller Account
Dansensor MAP Check 3 Vacuum Gas Analyzer
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dansensor MAP Check 3 Vacuum Gas Analyzer is an advanced in-line gas analyzer designed for quality assurance of Modified Atmosphere Packages (MAP). It enables continuous monitoring of gas composition during packaging processes, ensuring each package meets specifications. With features like oxygen and carbon dioxide measurement, data logging capabilities, and alarms for gas concentrations, this analyzer enhances production efficiency and reduces labor and waste costs. It is delivered with PC software for LAN-based data collection and offers extended monitoring options, making it an ideal choice for food processing companies seeking higher quality assurance levels.
Product Specifications
Additional Information Additional Information
A Win-Win For Thermoforming And Tray Sealing Lines Automatic testing with the Dansensor® MAP Check 3 Vacuum is not just faster and more reliable than manual testing, it is also more efficient. If there is a problem with the gas combination, the system notifies the operator immediately, saving time. If preset limits are exceeded, the analyzer simply stops the process, which means no wasted products or packaging.
Benefits Benefits
Measures every packaging cycleContinuous process monitoring of gas contentReduces labor and waste costs compared to manual testingAvoids recalls and repacking by stopping the packaging machine if gas limits exceed presets
Features Features
Oxygen or combined oxygen and carbon dioxide measurementAlarms for low or high gas concentrationsExcellent data logging capabilities via USB or EthernetAbility to control the Dansensor® MAP Mix Provectus gas mixerDelivered with PC software for LAN based data collectionOptional measurement of buffer tank gas composition and pressure with user configured alarmsExtended remote monitoring and control options with Modbus TCP
How Does It Work How Does It Work
An individual program can be created on the Dansensor® MAP Check 3 Vacuum for each product to be packaged. The first step is to select the correct program to ensure that the correct alarm level presets are activated. If the Dansensor® MAP Check 3 Vacuum is connected to the Dansensor® MAP Mix Provectus gas mixer, the correct gas mix will also be set.When the packaging machine is running, the residual oxygen level (and optionally, the carbon dioxide level) is measured for every cycle. The Dansensor® MAP Check 3 Vacuum takes the gas sample directly from the sealing die and gives an average measurement of the gas content in the die.If the oxygen or carbon dioxide level is close to the preset limits, the operator will be notified immediately. If the limits are exceeded, the packaging machine will be stopped.With the optional buffer tank measurement, gas composition in the buffer tank can be checked before packages are flushed, providing even greater control.
Note Note
Specifications subject to change without notice. Further specifications are available in the User Guide.
Specifications Alternating Current Ac Voltage
103 to 132 V | 207 to 264 V
Specifications Available Configurations
Dansensor® MAP Check 3 Vacuum Analyzer
Specifications Bracket Assembly
Can be combined with MAP Mix Provectus and MAP Check 3: 2 brackets, 8 screws.
Specifications Buffer Tank Measurement
Model Dependent
Specifications Carbon Dioxide Measurement Dual Beam Infrared
Model dependent
Specifications Compliances
European Conformity (CE)
Specifications Connections
2 x RS232C| Local Area Network (LAN) 10/100 Mbit (Modbus TCP)| Universal Serial Bus (USB)| Host for Import/Export| 24 VDC Logic for Machine Control Signals and Alarms
Specifications Control Of Modified Atmosphere Packages Map Mix P
Yes
Specifications Depth
375 mm
Specifications Frequency
47 to 63 Hz
Specifications Heating Time
10 min
Specifications Height
192 mm
Specifications Measuring Range
0 to 100 %
Specifications Models
Available with Liquid Crystal Display (LCD) display or as "Black Box" without display
Specifications Note For Sensor Accuracy
System accuracy depends on die geometry and machine timing
Specifications Number Of Test Programs Devices With Liquid Cryst
0 to 1,000
Specifications Oxygen Measurement Zirconia Sensor
Standard in all models
Specifications Protection Kit
Ingress Protection (IP45) National Electrical Manufacturers Association (NEMA 3S)
Specifications Resolution For Co2
CO2: 0-100%, 0.1
Specifications Resolution For O2
<1%, 0.001 | <10%, 0.01 | O2: ==10%, 0.1
Specifications Sensor Accuracy For Co2
CO2: 0-100%, ±1.5% of reading + 0.5% absolute
Specifications Sensor Accuracy For O2
O2: =0.1%, =0.1%, ±1% of reading; <0.1%, ±0.001% absolute
Specifications Weight
8.5 to 11.5 kg
Specifications Width
230 mm
