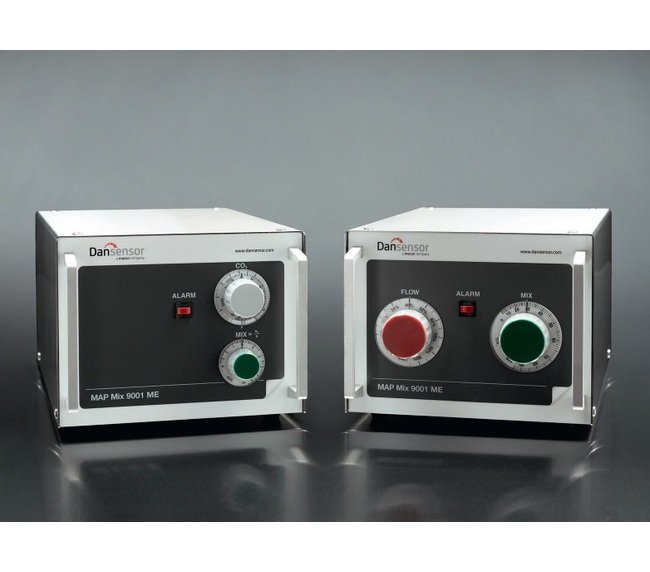

The Dansensor Map Mix 9001 ME Gas Mixer is a manually controlled system designed for precise gas blending in Modified Atmosphere Packaging applications. With the ability to blend 2-3 gases at flow rates ranging from 25 to 250 L/min, this mixer offers accuracy better than ±2%, ensuring efficient gas usage and cost savings. Constructed with stainless steel, it features alarms for pressure drops, easy manual adjustment, and compliance with European Conformity (CE) standards. Experience reliable technology, low total cost of ownership, and virtually maintenance-free operation with the Dansensor Map Mix 9001 ME Gas Mixer.
Product Specifications
Additional Information Additional Information
The Dansensor® MAP Mix 9001 ME is designed with ease of use in mind. It is simple to operate, even for first-time users, ensuring your packaging process is automatically supplied with the predefined gas mixture.It even automatically alerts you to potential problems. For example, if the gas inlet pressure drops, your operator is immediately notified, or the machine is stopped by an alarm signal.Convenient, accurate and economic. It is hard to find a better blend than that!
Benefits Benefits
Accurate and reliable technologyEasy to useWarns operators of pressure dropsLow total cost of ownershipVirtually maintenance free
Features Features
For blending 2-3 gassesFlow ranges from 20-400 liters/min (40-850 SCFH)Pressure/buffer version for tray sealing and thermoforming machinesVersion with flow adjustment for flow packaging machinesGas inlet pressure alarm
How Does It Work How Does It Work
To ensure a correct gas mix, connect the gas cylinders to the gas mixer and then set the inlet pressure according to the mixer's specifications. After connecting the gasses, set the desired gas mix, as well as the flow rate, if the mixer is used with a flow packaging machine.Dansensor® MAP Mix 9001 ME gas mixers are based on a proportional gas mixing principle that ensures fluctuations in inlet pressure will not affect the accuracy of the mix. However, if the mixer is unable to compensate for a major drop in inlet pressure, the operator will be notified with an acoustic alarm, or the machine will be stopped by the mixer's alarm signal.
Note Note
Specifications subject to change without notice - further specifications are available in the User Guide.
Technical Specifications Accuracy
Better than ± 2% absolute within a flow range of 15-100% and mix settings of 10-90%
Technical Specifications Alarms
Acoustic gas inlet pressure alarm with visual indication per gas and signal out (contact relay) on the rear panel.
Technical Specifications Approximate Weight
10 kg
Technical Specifications Cabinet Depth
420 mm
Technical Specifications Cabinet Height
194 mm
Technical Specifications Cabinet Material
Stainless Steel
Technical Specifications Cabinet Width
235 mm
Technical Specifications Compliances
European Conformity (CE)
Technical Specifications Flow Rate
25 to 250 L/min | 50 to 530 scfh
Technical Specifications Inlet Pressure
8.5 to 10 bar
Technical Specifications Mixture Adjustment
Manual
Technical Specifications Number Of Gases
2
Technical Specifications Pressure
Flow shut off valve (optional for flow versions)
