Dansensor Map Mix 9001 ME Gas Mixer
Dansensor Map Mix 9001 ME Gas Mixer
SKU:PRO-e034fb
Achieve precise gas blending with the Dansensor Map Mix 9001 ME Gas Mixer. Control costs and enhance efficiency with this reliable solution.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Dansensor Map Mix 9001 ME Gas Mixer
$2,499.99
Quantity: 1
Claim Your Seller Account
Dansensor Map Mix 9001 ME Gas Mixer
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

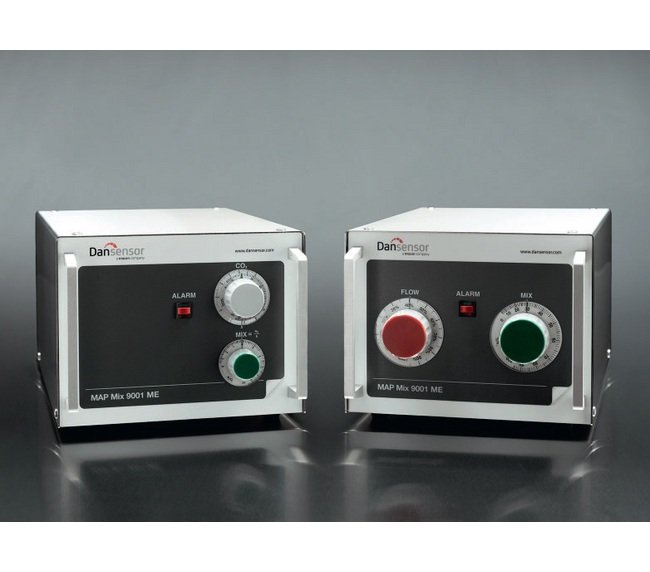

The Dansensor Map Mix 9001 ME Gas Mixer provides precision gas blending for Modified Atmosphere Packaging applications. With the ability to blend 2 to 3 gases at flow rates of 100 to 400 L/min, this stainless steel mixer ensures accuracy within ±2%. Operators benefit from acoustic alarm alerts, easy manual adjustments, and low maintenance, enhancing operational efficiency. Compliant with European Conformity (CE) standards, this mixer offers a cost-effective solution for maintaining gas quality and reducing waste.
Product Specifications
Additional Information Additional Information
The Dansensor® MAP Mix 9001 ME is designed with ease of use in mind. It is simple to operate, even for first-time users, ensuring your packaging process is automatically supplied with the predefined gas mixture.It even automatically alerts you to potential problems. For example, if the gas inlet pressure drops, your operator is immediately notified, or the machine is stopped by an alarm signal.Convenient, accurate and economic. It is hard to find a better blend than that!
Benefits Benefits
Accurate and reliable technologyEasy to useWarns operators of pressure dropsLow total cost of ownershipVirtually maintenance free
Features Features
For blending 2-3 gassesFlow ranges from 20-400 liters/min (40-850 SCFH)Pressure/buffer version for tray sealing and thermoforming machinesVersion with flow adjustment for flow packaging machinesGas inlet pressure alarm
How Does It Work How Does It Work
To ensure a correct gas mix, connect the gas cylinders to the gas mixer and then set the inlet pressure according to the mixer's specifications. After connecting the gasses, set the desired gas mix, as well as the flow rate, if the mixer is used with a flow packaging machine.Dansensor® MAP Mix 9001 ME gas mixers are based on a proportional gas mixing principle that ensures fluctuations in inlet pressure will not affect the accuracy of the mix. However, if the mixer is unable to compensate for a major drop in inlet pressure, the operator will be notified with an acoustic alarm, or the machine will be stopped by the mixer's alarm signal.
Note Note
Specifications subject to change without notice - further specifications are available in the User Guide.
Technical Specifications Accuracy
Better than ± 2% absolute within a flow range of 15-100% and mix settings of 10-90%
Technical Specifications Alarms
Acoustic gas inlet pressure alarm with visual indication per gas and signal out (contact relay) on the rear panel.
Technical Specifications Approximate Weight
10.5 kg
Technical Specifications Cabinet Depth
420 mm
Technical Specifications Cabinet Height
194 mm
Technical Specifications Cabinet Material
Stainless Steel
Technical Specifications Cabinet Width
235 mm
Technical Specifications Compliances
European Conformity (CE)
Technical Specifications Flow Rate
100 to 400 L/min | 200 to 850 scfh
Technical Specifications Inlet Pressure
8.5 to 10 bar
Technical Specifications Mixture Adjustment
Manual
Technical Specifications Number Of Gases
2
Technical Specifications Pressure
Flow shut off valve (optional for flow versions)
