Dansensor Portable Gas Analyzer O2 Sensor
Dansensor Portable Gas Analyzer O2 Sensor
SKU:PRO-f4573f
Cutting-edge portable gas analyzer for precise O2 and CO2 level detection in Modified Atmosphere Packages.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Dansensor Portable Gas Analyzer O2 Sensor
$2,499.99
Quantity: 1
Claim Your Seller Account
Dansensor Portable Gas Analyzer O2 Sensor
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

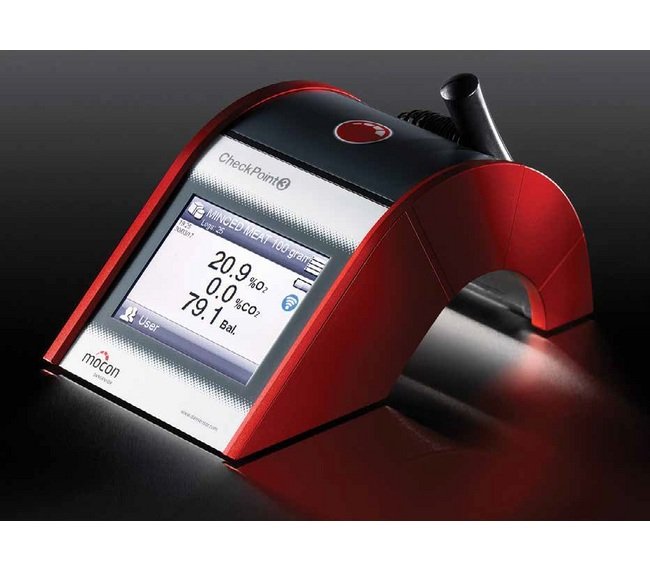

The Dansensor CheckPoint 3 Portable Gas Analyzer is a cutting-edge device designed for quality control of Modified Atmosphere Packages (MAP). It features advanced O2 and CO2 level detection, ensuring precise analysis for various applications including bread, coffee, meat, and more. With WiFi connectivity, intuitive interface, and a 3.5" color touchscreen, this analyzer offers exceptional ease of use and data management. Benefitting from a high sensor accuracy, fast processing, and a wide measuring range, the Dansensor CheckPoint 3 delivers efficient MAP quality control, process transparency, and cost-effectiveness.
Product Specifications
Benefits Benefits
No PC software requiredEasy to useImproves MAP quality controlBetter process efficiencyGreater business transparencySecures your brandâs reputationHighest level of portable analyzerLow cost of ownership
Dimensions And Weight Depth
175 mm
Dimensions And Weight Height
75 mm
Dimensions And Weight Weight
0.7 kg
Dimensions And Weight Width
100 mm
Features Features
Two O2 sensor options ensure compatibility with all applicationsO2 or combined O2/COO2 measurementsGas flow alarmData collection/transfer via WiFiFast processingEasy-to-read 3.5" color touchscreenUses standard, low-cost needlesOptional stainless steel needlesData package, 1 million data logs (optional)Protection cover (optional)Multiple languagesGraphic statistics
How Does It Work How Does It Work

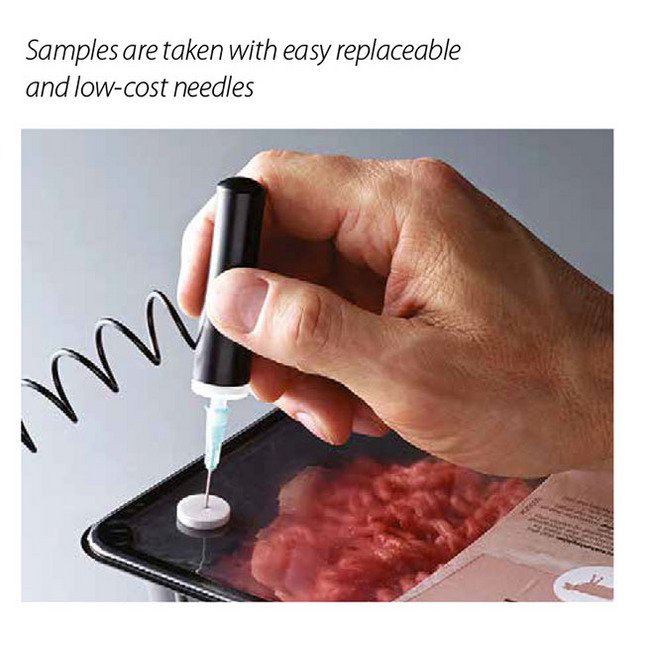

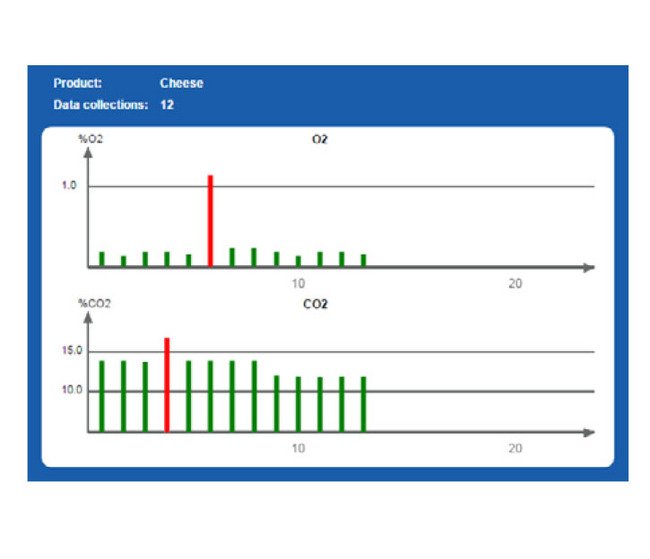

Insert needle into the package through the septum. Start test with one touch button.A sample will be drawn into the sensor. A few seconds later the Dansensor® CheckPoint 3 will tell you the O2 and CO2 level inside the package.Result can be collected manually or automatically. Stored data can be transferred via WiFi to your company database.The web interface provides statistic data for various documentation purposes.
Note Note
No upgrade possible from Dansensor® CheckPoint 3 Premium to Dansensor® CheckPoint 3 Premium with data pack.Specifications subject to change without notice. Further specifications are available in the User Guide.
Specifications Calibration And Service
12 months
Specifications Compatibility
China Restriction of Hazardous Substances (RoHS) | European Conformity (CE) | Restriction of Hazardous Substances (RoHS)
Specifications Connections
Wi-Fi Protected Access (WPA) 2 | Wi-Fi Protected Access (WPA) Enterprise)) | Wireless Fidelity (WiFi) (Wi-Fi Protected Access (WPA
Specifications Data Package
Extended Memory - Up to 1 Million Measurements
Specifications Expected Sensor Lifetime
> 1 year (depending on use)
Specifications Food Applications
Bread (Treated with Alcohol) | Coffee | Fermented Foods | Fish (Smoked) | Fresh Pasta | Meat (Raw and Smoked)
Specifications Measuring Range
0 to 100 %
Specifications Minimum Sample Time
7 s
Specifications Minimum Sample Volume
5 mL
Specifications Non Condensing Relative Humidity Rh
Less than 95 %
Specifications Options
Standard consumable kit (1 sampling kit, 1000 septums, 10 needles (Ã 0.8) & 10 water trap filters), metal needles
Specifications Power Supply
Battery powered; up to 2000 measurements on a fully charged battery at 20 ºC; recharge time maximum 5 hours
Specifications Products
100
Specifications Readings
500 per Product
Specifications Resolution
0.1% Oxygen
Specifications Sensor Accuracy
±(0.25% O2 + 2% of readout)
Specifications Users
10
Specifications What Is Included In The Box
10 Needles (Ã 0.8) | 10 Water Trap Filters | 100 Septums | Power Supply with Interchangeable Plugs (US, EU, AU, UK)
Specifications Working Temperature
0 to +40 ºC
