Dart Union Class 150 250 300
Dart Union Class 150 250 300
SKU:FIT-6e1a23
Reliable Dart Union Class 150 250 300: ASME B16.39 compliant, corrosion-resistant, and durable for various installations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dart Union Class 150 250 300
$29.99
Quantity: 1
Claim Your Seller Account
Dart Union Class 150 250 300
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dart Union Class 150 250 300 is a reliable malleable iron union that meets ASME B16.39 standards, making it ideal for various installations. With bronze seat ball joints on both sides, this union resists corrosion and offers true bearing surfaces for enhanced durability. Crafted from high-test air-refined malleable iron, it surpasses mild steel in most services. Its extra heavy shoulder on the swivel end and nut provides added strength against pipe strains, vibration, and wrench abuse. The union's straight-through design with no cored parts ensures efficient flow without liquid or sediment buildup, while the bronze seat ball joint with extra wide seating surfaces enhances performance and longevity.
Product Specifications

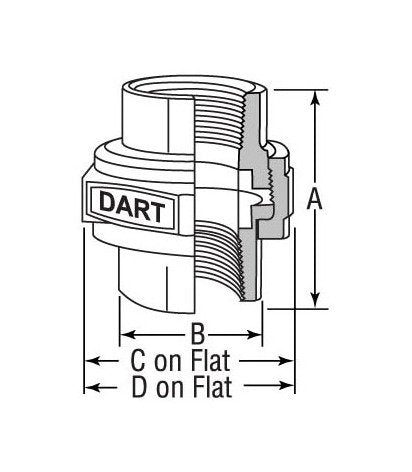

Specifications Dimension A
59.00 mm
Specifications Dimension B
35.00 mm
Specifications Dimension C
56.00 mm
Specifications Dimension D
64.00 mm
Specifications Dn
20
Specifications Nps
3/4
Specifications Weight Black
0.37 kg
Specifications Weight Galv
0.39 kg
