Dart Union Malleable Iron Class 150 250 300
Dart Union Malleable Iron Class 150 250 300
SKU:FIT-e78371
Premium Dart Union Malleable Iron Class 150 250 300 - ASME B16.39 compliant, high-performance fitting for various applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Dart Union Malleable Iron Class 150 250 300
$45.99
Quantity: 1
Claim Your Seller Account
Dart Union Malleable Iron Class 150 250 300
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dart Union Malleable Iron Class 150 250 300 is a premium union fitting designed for durability and high performance. Compliant with ASME B16.39 standards, this union is suitable for a wide range of applications, with a steam working pressure of 300lb at 450°F and 600lb for cold water, gas, or oil. Crafted from high-test air-refined malleable iron, it offers superior corrosion resistance and longevity. The bronze seat on both sides ensures a secure connection, while the true bearing surfaces and extra heavy shoulder provide added strength against strains and vibrations. With a straight-way through design and no cored parts, it prevents liquid retention and sediment buildup, making it easy to install and maintain.
Product Specifications

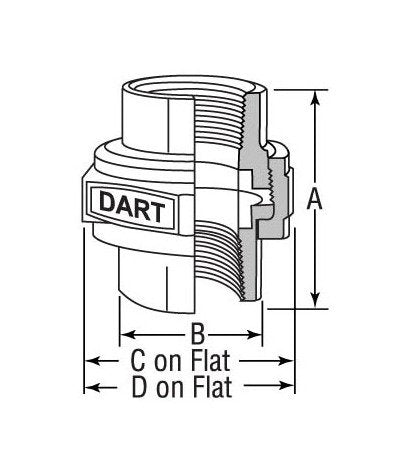

Specifications Dimension A
92.00 mm
Specifications Dimension B
73.00 mm
Specifications Dimension C
103.00 mm
Specifications Dimension D
117.00 mm
Specifications Dn
50
Specifications Nps
2
Specifications Weight Black
1.80 kg
Specifications Weight Galv
1.90 kg
