Dart Union - Malleable Iron Class 150/250/300 Union Fitting
Dart Union - Malleable Iron Class 150/250/300 Union Fitting
SKU:FIT-c6f183
Premium malleable iron union fitting meeting ASME B16.39 standards with bronze seat for superior corrosion resistance and extra heavy shoulder support.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Dart Union - Malleable Iron Class 150/250/300 Union Fitting
$25.99
Quantity: 1
Claim Your Seller Account
Dart Union - Malleable Iron Class 150/250/300 Union Fitting
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dart Union is a premium malleable iron union fitting designed to meet ASME B16.39 standards, making it ideal for a wide range of installations. With a working pressure of 300lb for steam at 450°F and 600lb for cold water, gas, or oil, this union boasts a bronze seat on both sides, offering superior corrosion resistance. Its true bearing surfaces, high-test air-refined malleable iron bodies, and nuts make it durable and reliable in various service conditions. The Dart Union features extra heavy shoulder support and a bronze seat ball joint with extra wide seating surfaces, ensuring easy installation, repeated use, and resistance to pipe strains, vibration, and wrench abuse.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

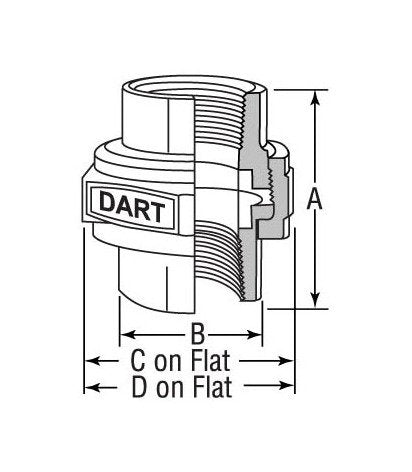

Specifications Dimension A
44.00 mm
Specifications Dimension B
24.00 mm
Specifications Dimension C
38.00 mm
Specifications Dimension D
44.00 mm
Specifications Dn
10
Specifications Nps
3/8
Specifications Weight Black
0.19 kg
Specifications Weight Galv
0.20 kg
