Dart Union Malleable Iron Class 150-300 Bronze Seat Union
Dart Union Malleable Iron Class 150-300 Bronze Seat Union
SKU:FIT-99924f
Dart Union Malleable Iron Class 150-300 Bronze Seat Union - ASME B16.39 compliant, corrosion-resistant, and durable for various installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Dart Union Malleable Iron Class 150-300 Bronze Seat Union
$24.99
Quantity: 1
Claim Your Seller Account
Dart Union Malleable Iron Class 150-300 Bronze Seat Union
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dart Union Malleable Iron Class 150-300 Bronze Seat Union is a top-of-the-line fitting that meets ASME B16.39 standards, making it ideal for various installations. With a steam working pressure of 300lb at 450°F and cold water, gas, or oil pressure of 600lb, this union is versatile and durable. Its bronze seat on both sides resists corrosion, while true bearing surfaces ensure a secure fit. The high test air-refined malleable iron bodies and nuts outperform mild steel in most services, offering reliability and longevity. Designed with an extra heavy shoulder on the swivel end and nut, this union can withstand pipe strains, vibrations, and wrench abuse.
Product Specifications

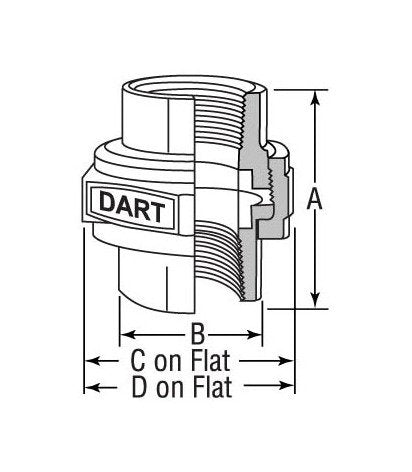

Specifications Dimension A
73.00 mm
Specifications Dimension B
52.00 mm
Specifications Dimension C
78.00 mm
Specifications Dimension D
89.00 mm
Specifications Dn
32
Specifications Nps
1 1/4
Specifications Weight Black
0.87 kg
Specifications Weight Galv
0.90 kg
