Dart Union - Malleable Iron Union Class 150 250 300
Dart Union - Malleable Iron Union Class 150 250 300
SKU:FIT-07fb26
Reliable Dart Union - High test malleable iron, bronze seat ball joints, ASME B16.39 compliant, for secure and corrosion-resistant installations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dart Union - Malleable Iron Union Class 150 250 300
$29.99
Quantity: 1
Claim Your Seller Account
Dart Union - Malleable Iron Union Class 150 250 300
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dart Union, made of high test air-refined malleable iron, is a reliable and durable choice for various installations. With a steam working pressure of 300lb at 450°F and a cold water, gas, or oil pressure of 600lb, this union meets ASME B16.39 standards. Featuring bronze seat ball joints with wide seating surfaces, it resists corrosion and offers true bearing surfaces for enhanced performance. Designed with extra heavy shoulders to withstand pipe strains, vibration, and wrench abuse, the Dart Union ensures secure connections and ease of installation and removal. Its straight-way through design prevents liquid or sediment retention, making it a practical and long-lasting solution for industrial applications.
Product Specifications

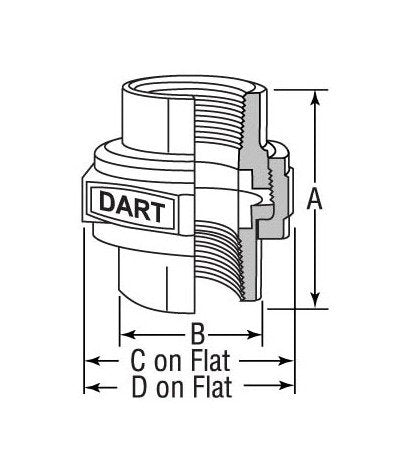

Specifications Dimension A
67.00 mm
Specifications Dimension B
43.00 mm
Specifications Dimension C
65.00 mm
Specifications Dimension D
76.00 mm
Specifications Dn
25
Specifications Nps
1
Specifications Weight Black
0.59 kg
Specifications Weight Galv
0.62 kg
