Dart Union Malleable Iron Union Class 300
Dart Union Malleable Iron Union Class 300
SKU:FIT-20867e
Meet ASME B16.39 standards with Dart Union - high-quality malleable iron union providing superior durability and resistance to corrosion.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dart Union Malleable Iron Union Class 300
$29.99
Quantity: 1
Claim Your Seller Account
Dart Union Malleable Iron Union Class 300
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dart Union Malleable Iron Union, meeting ASME B16.39 standards, is the perfect choice for various installations. It features a robust construction with bronze seat on both sides, ensuring corrosion resistance and true bearing surfaces. The malleable iron bodies and nuts offer superior durability, suitable for a wide range of services. With a straight way through design, extra heavy shoulder on the swivel end, and bronze seat ball joint, this union is built to withstand pipe strains, vibrations, and wrench abuse.
Product Specifications

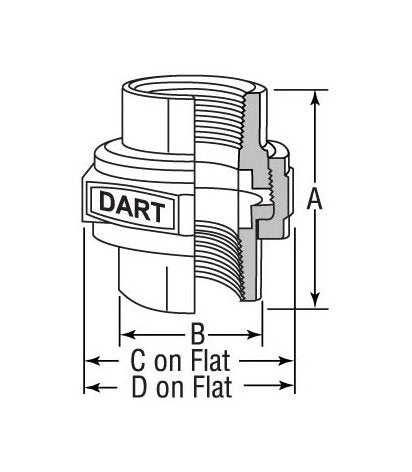

Specifications Dimension A
76.00 mm
Specifications Dimension B
56.00 mm
Specifications Dimension C
86.00 mm
Specifications Dimension D
102.00 mm
Specifications Dn
40
Specifications Nps
1 1/2
Specifications Weight Black
1.10 kg
Specifications Weight Galv
1.10 kg
