Dart Union - Malleable Iron Union Class 300
Dart Union - Malleable Iron Union Class 300
SKU:FIT-f8e66f
Dart Union - Reliable, ASME-compliant malleable iron union with bronze seats and high test construction for durability and corrosion resistance.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Dart Union - Malleable Iron Union Class 300
$25.99
Quantity: 1
Claim Your Seller Account
Dart Union - Malleable Iron Union Class 300
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dart Union Bronze Seat Union is a reliable choice for various installations, meeting ASME standards. With sizes ranging from 3/8 to 2 NPS, this union offers 300lb steam working pressure at 450°F and 600lb cold water, gas, or oil pressure. Featuring bronze seats on both sides, true bearing surfaces, and high test malleable iron bodies and nuts, it resists corrosion and offers exceptional durability. Its extra heavy shoulder design and bronze seat ball joint ensure stability and longevity, making it ideal for industries with stringent requirements.
Product Specifications

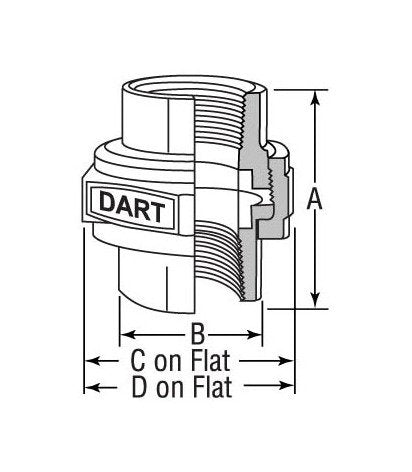

Specifications Dimension A
54.00 mm
Specifications Dimension B
29.00 mm
Specifications Dimension C
30.00 mm
Specifications Dimension D
51.00 mm
Specifications Dn
15
Specifications Nps
1/2
Specifications Weight Black
0.26 kg
Specifications Weight Galv
0.28 kg
