The DAS Series Phosphate Heaters are specifically designed for iron, zinc, and manganese phosphate tank applications. Featuring superior chemical resistance and an extremely rugged construction with a heavy wall stainless steel sheath, these heaters deliver outstanding performance with low watt densities to minimize scaling. With safety features like grounded construction and a thermal protector, these heaters are suitable for a range of solutions up to 230°F. Process Technology's DAS Series heaters are available in various sizes and voltages, with options for thermal protectors and special configurations.
Product Specifications
Specifications Certifications
CE
Specifications Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in iron, zinc and manganese phosphate tanks.EXTREMELY RUGGED CONSTRUCTION: Schedule 40, heavy wall, 316 stainless steel sheath withstands scaling better than traditional heaters.OUTSTANDING PERFORMANCE: Low watt densities of 23 watts per square inch (3.5 w/cm2) helps to minimize scaling while only utilizing the space required for a full watt density heater.CORROSION RESISTANT HEAD: Rugged cast steel terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P4 protector standard for solutions up to 230°F (110°C).Non-floating construction.CERTIFICATIONS: CE (except 600 volts).SIZES: 1,000 watts to 10,000 watts.VOLTAGES: 120 to 600 volts. Single phase standard, three phase available.OPTIONS AVAILABLE (consult factory):Thermal protectors: Replaceable high temperature fuses or resettable P2 bi-metal switches in two temperature ranges.Special configurations and lengths.Longer wire and conduit lengths.Temperature and level controls sized to match the heater.

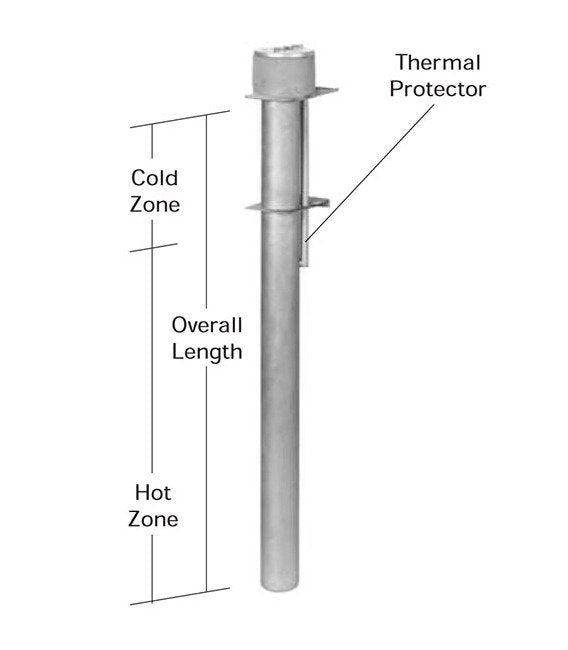

Specifications Hot Zone
12 " | 305 mm
Specifications Manufacturer
Process Technology
Specifications Material
Phosphate
Specifications Note
NOTE: Do not use in any aluminum reactive alkaline solutions.
Specifications Overall Length
17 " | 430 mm
Specifications Phase
Single (Standard) | Three
Specifications Series
DAS Series
Specifications Shipping Weight
20.0 Pound
Specifications Volts
240 V
Specifications Watts
2000 W
Specifications Weight
20.0 lbs | 9.0 kg
