Data/Voice Coupling Transformer for Telecommunications Networks
Data/Voice Coupling Transformer for Telecommunications Networks
SKU:AUD-527ab5
Meet telecom demands with our FCC Part 68 compliant Data/Voice Coupling Transformer for superior performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Data/Voice Coupling Transformer for Telecommunications Networks
$59.99
Quantity: 1
Claim Your Seller Account
Data/Voice Coupling Transformer for Telecommunications Networks
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

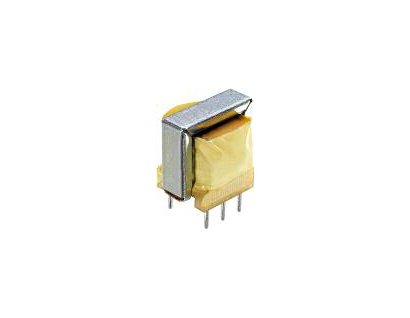

The Data/Voice Coupling Transformer from our TY series is engineered to precisely meet the demanding requirements of telecommunications networks. This transformer excels in impedance matching, isolation, repeat coil functions, line balancing, and bridging applications. With a primary impedance of 600 Ohms, dielectric strength of 1500 V, and FCC Part 68 compliance, it ensures reliable performance and exceptional durability. Its exceptional longitudinal balance of 45 dB to 60 dB across specific frequencies, maximum input level of 5 mW, and wide frequency range make it ideal for data and voice transmission needs.
Product Specifications
Applications 0
Bridging Circuits | Hybrid Circuits | Impedance Matching | Isolation | Line Balancing | Repeat Coil
Specifications Dielectric Strength Fcc 68304
1500 V
Specifications Frequency Range Data
800 to 3500 Hz
Specifications Frequency Range Datavoice
300 to 3500 Hz
Specifications Industry Standards
FCC 68.304 for Dielectric Strength | FCC 68.310 for Longitudinal Balance
Specifications Longitudinal Balance Frequency
1000 to 4000 Hz at 45 dB | 200 to 1000 Hz at 60 dB
Specifications Maximum Input Level
5 mW
Specifications Max Dc Current
90 mA
Specifications Min Longitudinal Balance
45 dB | 60 dB
Specifications Primary Impedance
600 Ohm

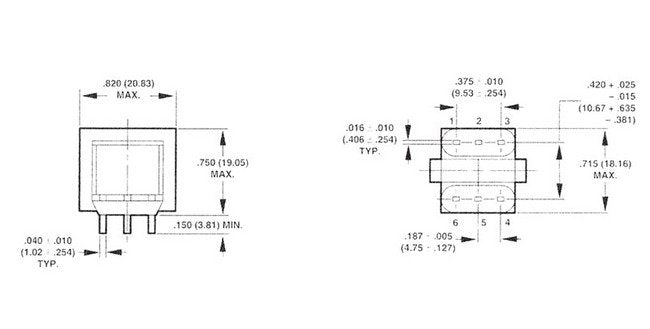

Specifications Schematic
Schematic 4
Specifications Secondary Impedance
600 Ohm
Specifications Transformer Contact Type
Center Tap
Specifications Frequency Response
±0.5 dB
Specifications Insertion Loss
1.75 dB
Specifications Return Loss
15 dB
Technical Notes 0
Primary connections shown on left side of schematics.
