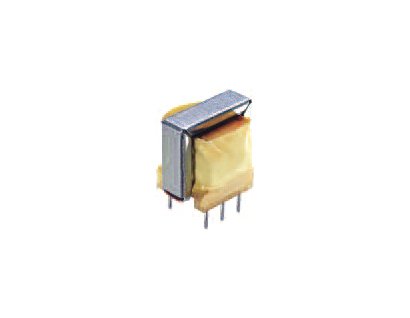

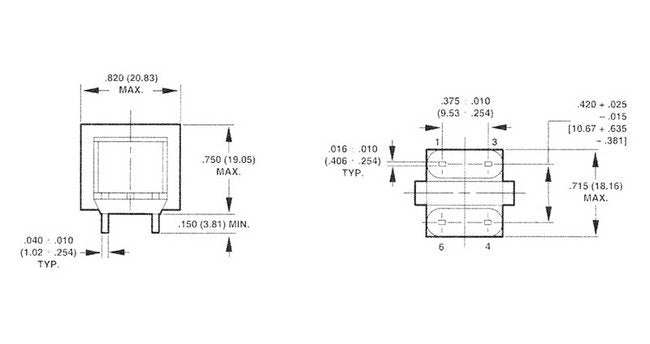

Data/Voice Coupling Transformer with FCC Compliance

Name: Data/Voice Coupling Transformer with FCC Compliance
Brand: Triad Magnetics
SKU: AUD-fdc6c7
Price: 89.99 USD
Availability: OutOfStock

SKU:AUD-fdc6c7

Optimize telecom transmissions with our FCC-compliant Data/Voice Coupling Transformer- enhancing performance and regulatory adherence.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance telecommunications with the Data/Voice Coupling Transformer designed for impedance matching, isolation, repeat coil, and more. This transformer meets FCC Part 68 standards, ensuring reliable performance and compliance with stringent regulatory requirements. With features like Min. Longitudinal Balance up to 60 dB, Dielectric Strength of 1500 V, and a Frequency Range of 300 to 3500 Hz, this transformer is ideal for bridging circuits, hybrid circuits, and other applications.

Product Specifications

Applications 0

Specifications Dielectric Strength Fcc 68304

1500 V

Specifications Frequency Range Data

800 to 3500 Hz

Specifications Frequency Range Datavoice

300 to 3500 Hz

Specifications Industry Standards

FCC 68.304 for Dielectric Strength | FCC 68.310 for Longitudinal Balance

Specifications Longitudinal Balance Frequency

1000 to 4000 Hz at 45 dB | 200 to 1000 Hz at 60 dB

Specifications Maximum Input Level

5 mW

Specifications Max Dc Current

90 mA

Specifications Min Longitudinal Balance

45 dB | 60 dB

Specifications Primary Impedance

600 Ohm

Specifications Schematic

Schematic 3

Specifications Secondary Impedance

600 Ohm

Specifications Frequency Response

Â±0.5 dB

Specifications Insertion Loss

1.75 dB

Specifications Return Loss

15 dB

Technical Notes 0

Primary connections shown on left side of schematics.

Data/Voice Coupling Transformer with FCC Compliance
