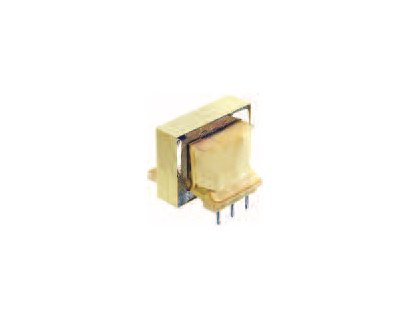

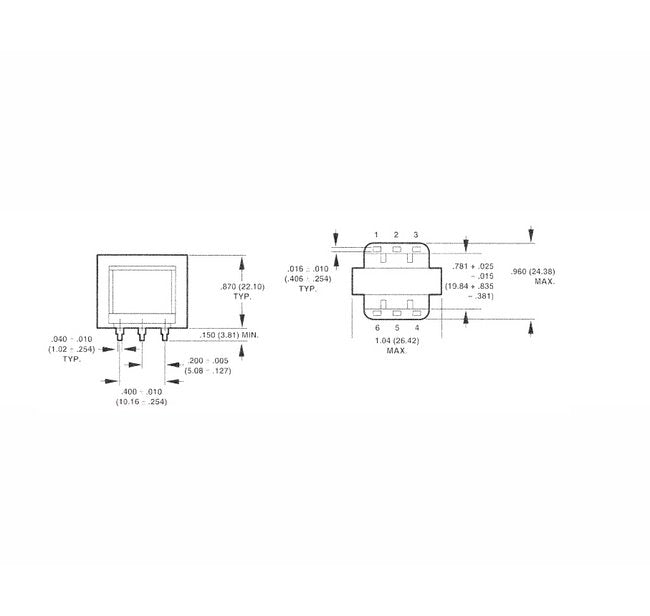

Data/Voice Hybrid Single Transformer for Institutional Communication Networks
$59.99
Quantity: 1
Claim Your Seller Account
Data/Voice Hybrid Single Transformer for Institutional Communication Networks
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Data/Voice Hybrid Single Transformer from our specialized Data/Voice Coupling Transformers line is a versatile solution designed to meet the demands of institutional communication networks. With advanced features such as hybrid circuits, impedance matching, and line balancing, this transformer ensures optimal performance in activities such as bridging circuits and isolation. Compliant with FCC Part 68 standards, it offers a longitudinal balance of 45 dB to 60 dB and a trans-hybrid loss of 50 dB, guaranteeing reliable and secure communication channels for critical applications.
Product Specifications
Applications 0
Bridging Circuits | Hybrid Circuits | Impedance Matching | Isolation | Line Balancing | Repeat Coil
Specifications Dielectric Strength Fcc 68304
1500 V
Specifications Frequency Range Data
800 to 3500 Hz
Specifications Frequency Range Datavoice
300 to 3500 Hz
Specifications Industry Standards
FCC 68.304 for Dielectric Strength | FCC 68.310 for Longitudinal Balance
Specifications Longitudinal Balance Frequency
1000 to 4000 Hz at 45 dB | 200 to 1000 Hz at 60 dB
Specifications Maximum Input Level
5 mW
Specifications Min Longitudinal Balance
45 dB | 60 dB
Specifications Primary Impedance
600 Ohm
Specifications Schematic
Schematic 9
Specifications Secondary Impedance
600 Ohm
Specifications Trans Hybrid Loss
50 dB
Specifications Insertion Loss
0.80 dB
Specifications Return Loss
30 dB
Technical Notes 0
Primary connections shown on left side of schematics.
