DBA Disc Brakes - Model 217DBAV
$2,500.00
Quantity: 1
Claim Your Seller Account
DBA Disc Brakes - Model 217DBAV
$2,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

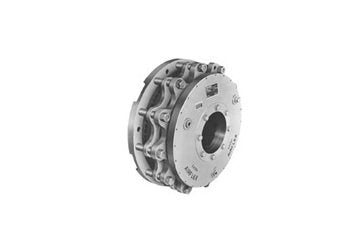

Upgrade your equipment with the reliable and versatile Model 217DBAV DBA Disc Brakes. These spring applied, pressure released brakes offer equal torque in both directions, ideal for high-demand applications. With large friction area and minimal adjustment needed, these brakes excel in absorbing high energy loads. Perfect for can making machines, draglines, power shovels, and more, these brakes ensure efficiency and safety in your operations.
Product Specifications
Features 0
Large friction area.Allows brakes to absorb and dissipate high energy loads associated with high cyclic and high inertia stops.Minimal adjustment required for lining wear.Single disc units require no wear adjustment and dual disc units require only one wear adjustment during the long life of the friction material.
General Description 0
Model DBA brakes are spring applied, pressure released, disc style brakes. They develop equal torque in either direction of rotation. Their torque and thermal capacities allow them to be used in the most demanding applications.Brake construction and operation is shown in the figure. Pressurizing the brake compresses the brake springs and withdraws the clamping plates from the brake discs. Standard brakes are furnished with either one or two discs, which are free to move axially.Model DBA uses a rubber diaphragm to form the releasing pressure chamber and to serve as the releasing piston. Brake friction material is attached to stationary components. Brake discs are either solid or ventilated. The disc type is indicated by an S for solid, or V, for ventilated, in the brake model designation. Solid discs are used in applications requiring a heat sink and/or where engagement is infrequent. Ventilated discs are recommended for cyclic applications.Torque ratings listed are for brakes with a standard compliment of springs. The quantity of springs can be varied to customize the torque of the brake to suit a particular application. Consult the factory for brake torque of units with nonstandard spring configurations.Brake sizes are indicated by the number of brake discs and the disc diameter in inches. For instance, size 229DBA has two discs 29 inches in diameter.
Specifications Actuation
Spring Applied, Air Release
Specifications Dimension D
15.77 in | 401 mm
Specifications Dimension D1
14.41 in | 366 mm
Specifications Dimension D25
2.00 in | 51 mm
Specifications Dimension D29
1.88 in | 48 mm
Specifications Dimension D7
6.50 in | 165 mm
Specifications Dimension G
24.998 in | 634.9 mm
Specifications Dimension H
21.000 in | 533 mm
Specifications Dimension H11
17.25 in | 438 mm
Specifications Dimension H13
10.00 in | 254 mm
Specifications Dimension H16
5.38 in | 137 mm
Specifications Dimension L
0.78 in | 20 mm
Specifications Dimension O2
1/2-14 NPT
Specifications Disc Gear Inertia
20 lb·ft² | 0.84 kg·m²
Specifications Disc Gear Weight
112 lb | 51 kg
Specifications Dynamic Torque Rating
38000 lb·in | 4290 Nm
Specifications Housing Weight
363 lb | 164 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
4.25 in | 108 mm
Specifications Maximum Speed
1300 rpm
Specifications Minimum Bore
3.25 in | 79 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
217DBAV
Where Used 0
Can making machinesDraglinesPower shovelsConveyorsPower presses
