DBA Spring Applied Disc Style Brakes
DBA Spring Applied Disc Style Brakes
SKU:CLU-bea15f
DBA Spring Applied Disc Style Brakes: High-performance, reliable disc brakes for demanding applications. Ideal for machinery like can making machines, draglines, power shovels, and more.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
DBA Spring Applied Disc Style Brakes
$2,499.99
Quantity: 1
Claim Your Seller Account
DBA Spring Applied Disc Style Brakes
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

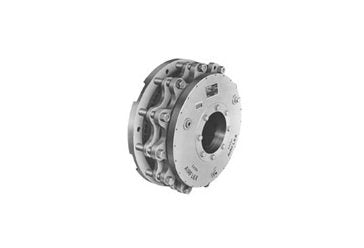

The DBA Spring Applied Disc Style Brakes are designed for high energy load absorption and dissipation in demanding applications. Featuring large friction areas, these brakes require minimal adjustment for lining wear, providing reliable performance. Ideal for machinery like can making machines, draglines, power shovels, and more, these brakes offer equal torque in both rotation directions and come in solid or ventilated disc options. With customizable torque configurations and robust construction, the DBA Brakes ensure efficient braking operations in various industrial settings.
Product Specifications
Features 0
Large friction area.Allows brakes to absorb and dissipate high energy loads associated with high cyclic and high inertia stops.Minimal adjustment required for lining wear.Single disc units require no wear adjustment and dual disc units require only one wear adjustment during the long life of the friction material.
General Description 0
Model DBA brakes are spring applied, pressure released, disc style brakes. They develop equal torque in either direction of rotation. Their torque and thermal capacities allow them to be used in the most demanding applications.Brake construction and operation is shown in the figure. Pressurizing the brake compresses the brake springs and withdraws the clamping plates from the brake discs. Standard brakes are furnished with either one or two discs, which are free to move axially.Model DBA uses a rubber diaphragm to form the releasing pressure chamber and to serve as the releasing piston. Brake friction material is attached to stationary components. Brake discs are either solid or ventilated. The disc type is indicated by an S for solid, or V, for ventilated, in the brake model designation. Solid discs are used in applications requiring a heat sink and/or where engagement is infrequent. Ventilated discs are recommended for cyclic applications.Torque ratings listed are for brakes with a standard compliment of springs. The quantity of springs can be varied to customize the torque of the brake to suit a particular application. Consult the factory for brake torque of units with nonstandard spring configurations.Brake sizes are indicated by the number of brake discs and the disc diameter in inches. For instance, size 229DBA has two discs 29 inches in diameter.
Specifications Actuation
Spring Applied, Air Release
Specifications Dimension D
19.13 in | 486 mm
Specifications Dimension D1
17.38 in | 441 mm
Specifications Dimension D25
2.75 in | 70 mm
Specifications Dimension D29
2.25 in | 59 mm
Specifications Dimension D7
7.12 in | 181 mm
Specifications Dimension G
33.998 in | 863.5 mm
Specifications Dimension H
31.000 in | 787 mm
Specifications Dimension H11
28.00 in | 711 mm
Specifications Dimension H13
14.75 in | 375 mm
Specifications Dimension H16
10.25 in | 260 mm
Specifications Dimension L
1.06 in | 27 mm
Specifications Dimension O2
1-11 1/2 NPT
Specifications Disc Gear Inertia
191 lb·ft² | 8.02 kg·m²
Specifications Disc Gear Weight
340 lb | 154 kg
Specifications Dynamic Torque Rating
216000 lb·in | 24400 Nm
Specifications Housing Weight
1150 lb | 521 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
7.19 in | 182 mm
Specifications Maximum Speed
900 rpm
Specifications Minimum Bore
4.88 in | 124 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
229DBAV
Where Used 0
Can making machinesDraglinesPower shovelsConveyorsPower presses
