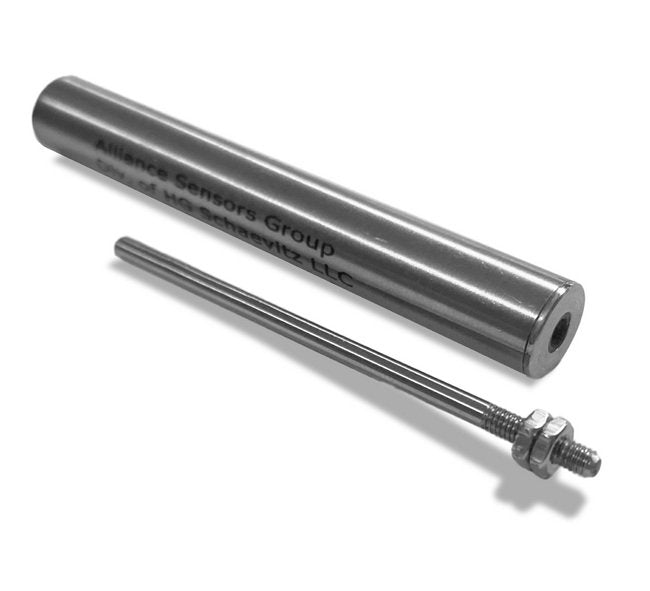

DC Linear Variable Differential Transformer (LVDT) Sensor, 0.250in Stroke, 0-10V DC Output
DC Linear Variable Differential Transformer (LVDT) Sensor, 0.250in Stroke, 0-10V DC Output
SKU:DCT-b6224f
High-precision DC LVDT sensor with 0.250in stroke, 0-10V DC output, and CE approval for superior performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DC Linear Variable Differential Transformer (LVDT) Sensor, 0.250in Stroke, 0-10V DC Output
$299.99
Quantity: 1
Claim Your Seller Account
DC Linear Variable Differential Transformer (LVDT) Sensor, 0.250in Stroke, 0-10V DC Output
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your precision measurement applications with this high-quality DC Linear Variable Differential Transformer (LVDT) Sensor. With a stroke of 0.250 inches and a direct current (DC) output voltage range of 0 to 10 volts, this sensor from Alliance Sensors Group provides exceptional linearity (<0.25% of full scale) and impressive resolution (0.025% of full scale). Its stainless steel body ensures durability while operating within a wide temperature range (-40 to 105 ºC). Approved for European Conformity (CE) standards, this sensor features a 3/8-inch outside diameter and comes with a 1-meter axial cable termination for easy installation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/8 in
Technical Specs Range
0.250 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
0.250 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
