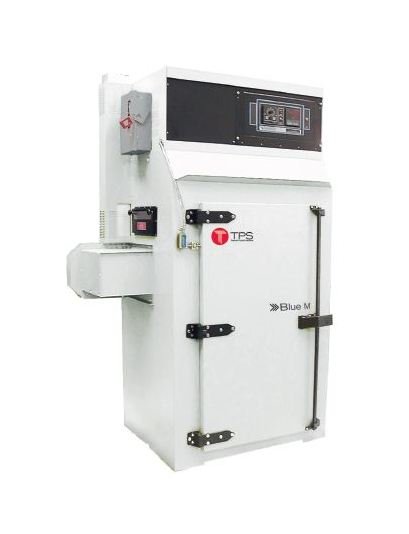

Blue M Class A Batch Ovens are mechanical convection electric chambers that include safety features recommended in NFPA Bulletin 86 as standard. The design of the chamber concedes that the element temperature may be well above the auto-ignition point of some flammable materials, but this is mitigated by maintaining a non-explosive mixture through the use of higher than normal exhaust rates. Increased heating element kW compensates for this exhaust factor. In addition to meeting NFPA recommendations, this oven design has exceptional exhaust capabilities for handling solvents. A negative pressure is maintained in the work chamber that ensures that all hazardous vapors will be expelled through the exhaust duct and not through the oven door, blower shaft seal or other apertures. These ovens are complete systems. No additions are required to meet the recommendations of NFPA Bulletin 86 for processing hazardous work loads.
Product Specifications
Specifications Ac Voltage At 3 Phase
208 V | 240 V | 480 V
Specifications Ambient Temperature
316 ºC | 600 ºF
Specifications Capacity
11 ft³
Specifications Element Power
13.5 kW | 18 kW
Specifications Exterior Depth
42 in | 107 mm
Specifications Exterior Height
88 in | 224 mm
Specifications Exterior Width
41 in | 104 mm
Specifications Features
Heavy-gauge, cold-rolled reinforced steel | High-temperature aluminum finish | 4 Inch (in) fiberglass insulation | Silicone sealed doors have welded and insulated double-wall construction | Eterna™ heater banks | Direct drive motor / blower system | Forced exhaust system | Air flow switch | Adjustable purge timer | Blow-out relief panel | 2 Inch (in) fire extinguisher port
Specifications Frequency
60 Hz
Specifications Interior Depth
20 in | 51 mm
Specifications Interior Height
38 in | 97 mm
Specifications Interior Width
25 in | 63 mm
Specifications Line Current
41 A | 47 A
Specifications Options
Circular chart recorder | F4 controller | Stainless steel slotted shelves
Specifications Oven Type
Floor Model
Specifications Temperature
15 ºC
