DCSA-606-F-HP-1 Floor Model Class A Batch Oven
DCSA-606-F-HP-1 Floor Model Class A Batch Oven
SKU:BLU-86472c
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DCSA-606-F-HP-1 Floor Model Class A Batch Oven
$49.99
Quantity: 1
Claim Your Seller Account
DCSA-606-F-HP-1 Floor Model Class A Batch Oven
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

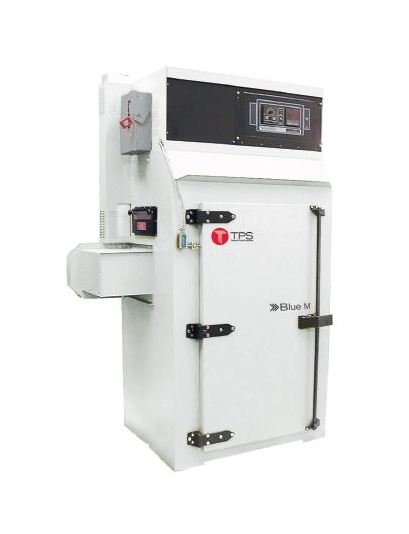

Blue M Class A Batch Ovens are mechanical convection electric chambers that include safety features recommended in NFPA Bulletin 86 as standard. The design of the chamber concedes that the element temperature may be well above the auto-ignition point of some flammable materials, but this is mitigated by maintaining a non-explosive mixture through the use of higher than normal exhaust rates. Increased heating element kW compensates for this exhaust factor. In addition to meeting NFPA recommendations, this oven design has exceptional exhaust capabilities for handling solvents. A negative pressure is maintained in the work chamber that ensures that all hazardous vapors will be expelled through the exhaust duct and not through the oven door, blower shaft seal or other apertures. These ovens are complete systems. No additions are required to meet the recommendations of NFPA Bulletin 86 for processing hazardous work loads.
Product Specifications
Specifications Ac Voltage At 3 Phase
480 V
Specifications Ambient Temperature
316 ºC | 600 ºF
Specifications Capacity
60 ft³
Specifications Element Power
26 kW | 34 kW
Specifications Exterior Depth
69 in | 175 mm
Specifications Exterior Height
96 in | 244 mm
Specifications Exterior Width
80 in | 203 mm
Specifications Features
Heavy-gauge, cold-rolled reinforced steel | High-temperature aluminum finish | 4 Inch (in) fiberglass insulation | Silicone sealed doors have welded and insulated double-wall construction | Eterna™ heater banks | Direct drive motor / blower system | Forced exhaust system | Air flow switch | Adjustable purge timer | Blow-out relief panel | 2 Inch (in) fire extinguisher port
Specifications Frequency
60 Hz
Specifications Interior Depth
48 in | 122 mm
Specifications Interior Height
60 in | 152 mm
Specifications Interior Width
36 in | 91 mm
Specifications Line Current
86 A | 100 A
Specifications Options
Circular chart recorder | F4 controller | Stainless steel slotted shelves
Specifications Oven Type
Floor Model
Specifications Temperature
15 ºC
