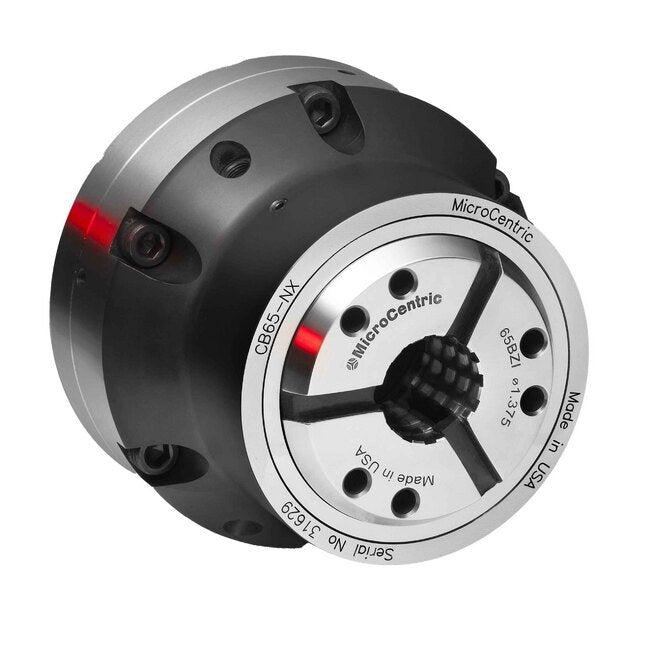

Dead Length CB-NX Collet Chuck
Dead Length CB-NX Collet Chuck
SKU:QUI-6de7e2
Precision-engineered Dead Length Collet Chuck for optimal tool clearance and maximum clamping accuracy.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Dead Length CB-NX Collet Chuck
$499.99
Quantity: 1
Claim Your Seller Account
Dead Length CB-NX Collet Chuck
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dead Length CB-NX Collet Chuck is a precision-engineered tool designed for maximum tool clearance and enhanced clamping accuracy. With a low profile dead length design and a reduced diameter nose, this collet chuck ensures optimal utilization of the Z-axis and eliminates the pullback effect on the workpiece. Featuring radial adjusting screws for precise collet seat alignment within .0002 inches, a lubricated-for-life design for minimal maintenance, and hardened components for long-lasting accuracy, this collet chuck is built for high performance and durability. Additionally, it allows for the mounting of stop plates, stop housings, and ejectors inside the chuck body, making it versatile for various chucking applications.
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

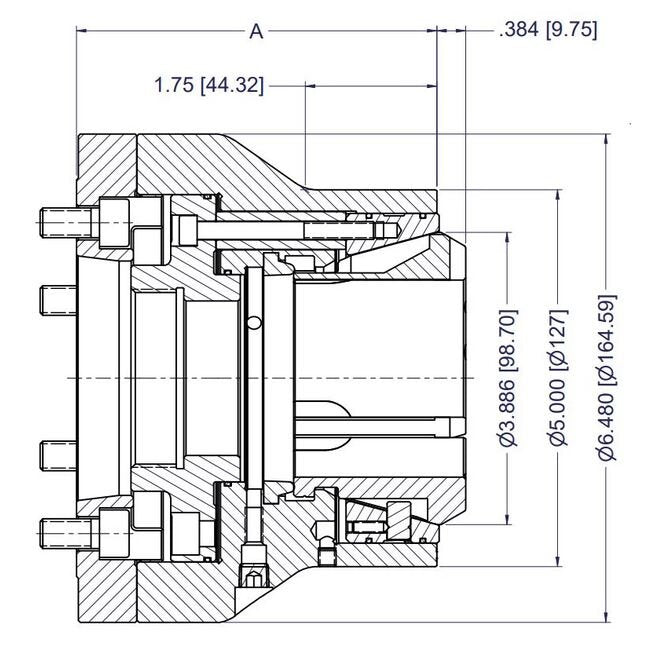

Specifications A Dimension
4.78 in | 121.41 mm
Specifications Clamping Range
+/- .020 in | 0.5 mm
Specifications Collet Model
65BZI
Specifications Item No
15 065 140
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-5
Specifications Weight
25.9 lb | 11.8 kg
