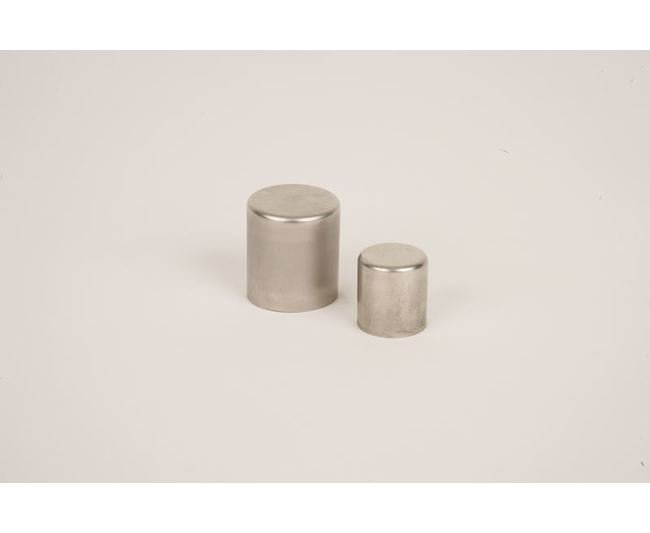

Deep Drawn Round Can - 1.172" OD x 1.875" Max Height
Deep Drawn Round Can - 1.172" OD x 1.875" Max Height
SKU:DRA-201166
Seamless Deep Drawn Round Can - Ideal for precision applications. Customizable & weld issue-free.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Deep Drawn Round Can - 1.172" OD x 1.875" Max Height
$34.99
Quantity: 1
Claim Your Seller Account
Deep Drawn Round Can - 1.172" OD x 1.875" Max Height
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Deep Drawn Round Can is a seamless aluminum and/or stainless steel part suitable for various applications like motor shrouds, enclosures, lids, and containers. Customizable with holes, fittings, markings, and finishes, it eliminates weld issues for enhanced durability. This precision miniature meets rigorous industry standards and can be tailored to specific height requirements at no additional cost.
Product Specifications
Specifications Aluminum Alloy
1100-0
Specifications Inside Bottom Radius R1
0.0938 in
Specifications Made In
USA
Specifications Matching Part
Flush Covers | Inside Fitting
Specifications Material
Aluminum | Steel
Specifications Minimum Outside Height Aluminum Al
0.1638 in
Specifications Minimum Outside Height Steel
0.1618 in
Specifications Outside Diameter
1.172 in
Specifications Outside Height Maximum
1.875 in
Specifications Shape
Round
Specifications Standard Availability
3 Weeks for Aluminum. Inquire for Cold Rolled Steel. Lead time may increase depending on requested secondary operations and modifications.
Specifications Standard Steel Alloy Material
Cold Rolled Steel
