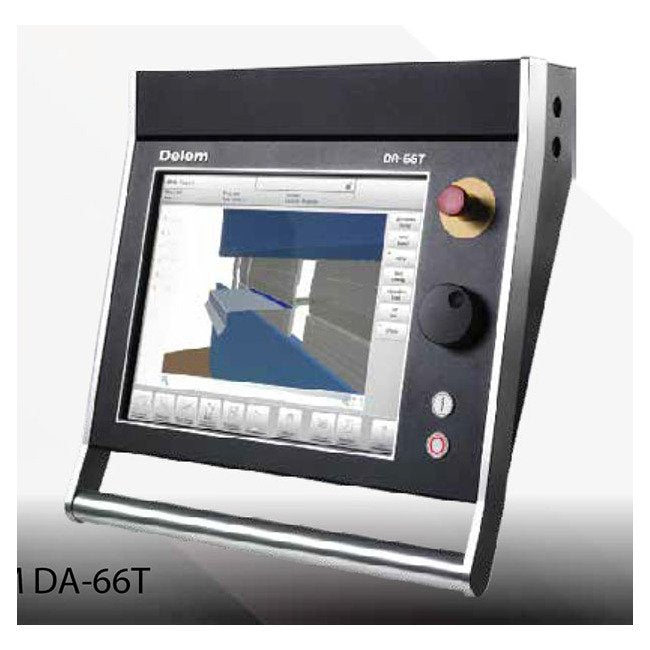

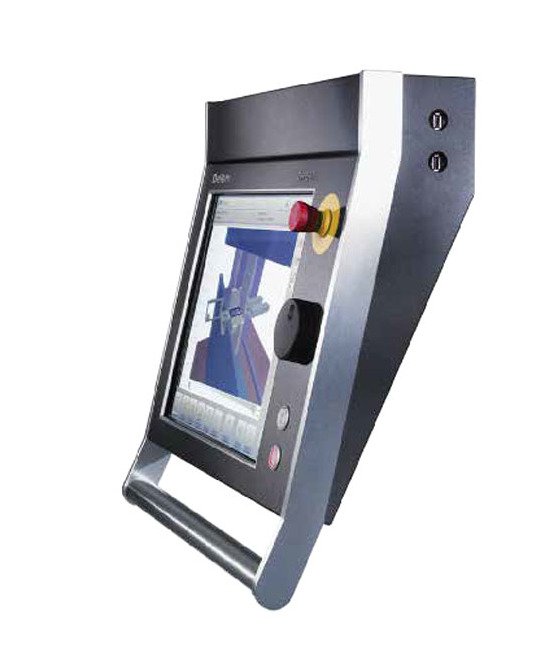

The DELEM DA-66T 17-inch Thin Film Transistor (TFT) Control System is a cutting-edge solution for press brakes and benders. Featuring a user-friendly touch screen interface, this system offers advanced 2D programming with automatic bend sequence calculation, collision detection, and real-time 3D visualization. With a plethora of features including full Windows application suite, USB interfacing, and DELEM Modusys compatibility, this control unit provides unparalleled efficiency and precision. Enhance productivity and streamline operations with the DELEM DA-66T, a state-of-the-art solution for modern manufacturing processes.
Product Specifications
Additional Information
Highly effective control algorithms optimize the machine cycle and minimize set-up time. This makes using press brakes easier, more efficient and more versatile then ever.The OEM-panel located above the screen, reserved for machine functions and OEM application switches, is integrated in the design and can be used depending on the required application.
Computed
Tooling safety zonesPress forceBend allowanceCrowning adjustmentDeveloped lengthBottoming forceHemming forceAuto bumping calculationRadius programmingBend allowance tableLearned angle correction database
Control
Servo/ 2 speed AC controlUnipolar / frequency inverter controlDirect pressure valve controlDirect proportional valve Y1, Y2 controlDirect crowning controlMultiple digital function outputsTandem operation
Electrical Interfacing
Modusys HSB busRS232 port (2x)Network interface (100Mb/10Mb)USB port (2x)Safety PLC interfacingProtractor interfacingAngle control interfacing
Features Of Control Unit
2D graphical touch screen programming mode3D visualization in simulation and production17" high resolution color TFTFull Windows application suiteDELEM Modusys compatibility (module scalability and adaptivity)USB, peripheral interfacingOpen system architectureSensor bending & correction interface
Field Option
Part support controlX1-X2 angle programmingBarcode reader interfacingProtractor interfacingFrame deflection compensationSensor bending & correction interfacingSheet thickness measurement and compensation system
General
Real-time embedded Windows® OSMultitasking environmentInstant Shut OffDELEM Modusys compatible
Miscellaneous
'Teach-in' on all axesHand wheel movement of all axesOperator selectable dialogue languagesIntegrated help functionsError messaging systemDiagnostic programInternet Explorer (web browser)Remote diagnosisUser specific applications supportMachine time + stroke counterOn board Analysis ToolSequencer functionality (PLC)
Programming
Alphanumeric product namingReal-scale product programming and visualizationAutomatic bend sequence calculationEasy graphical bend sequence swap and moveHemmed products programmingOne page programming tableGraphical product and tool selectionProgrammable material propertiesProgrammable axis speedFree material programmingProduct & tool search filterMillimeters/Inches, kN/Ton selectionStock counterProduct notes
Specifications Color Display Type
Liquid Crystal Display (LCD)
Specifications Power Supply Voltage
24 V
Specifications Screen Resolution
1280 x 1024 px
Specifications Storage Capacity
1 GB
Specifications Thin Film Transistor Tft Color Display Size
17 in
Standard Features
17" TFT, high brightness1280 x 1024 pixels, 32 bit colorFull touch screen control (IR-touch)3D graphics accelerationStandard Windows® networkingEmergency switchIntegrated OEM-panelUSB flash memory drive
Tooling
Graphical tool configurationMultiple tool station set-upsTool segmentation visualizationAlphanumeric tool identificationFree graphical tool programmingHemming toolsRadius toolsTool adapter support
