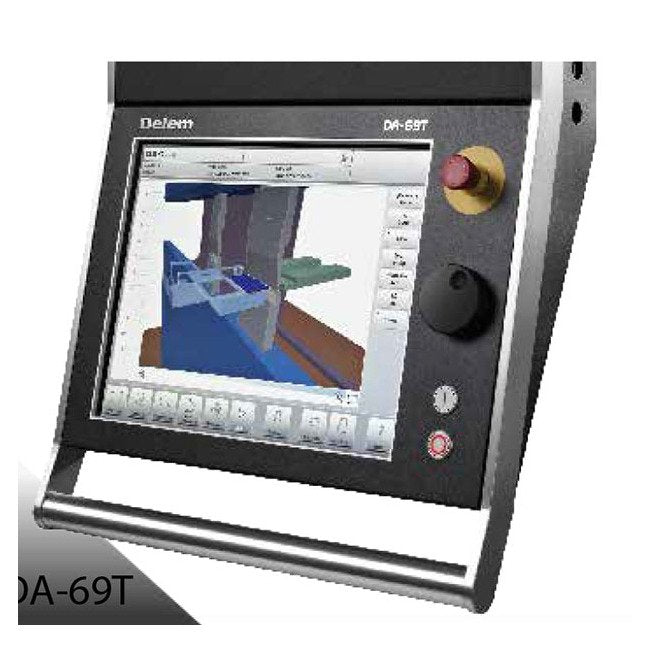

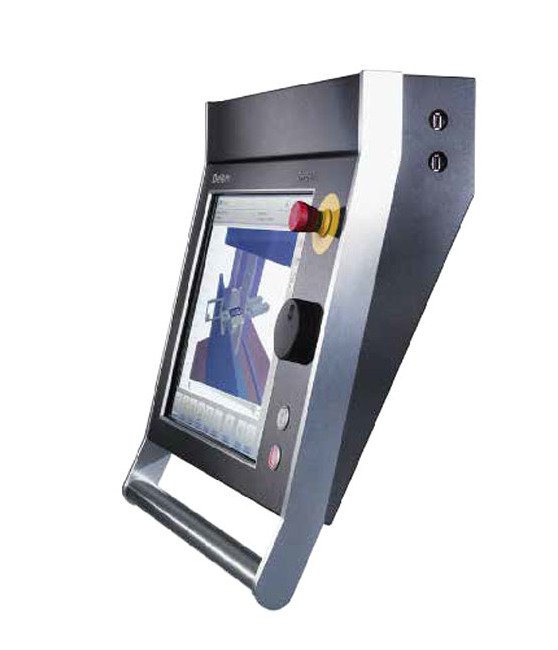

DELEM DA-69T 17" TFT Display Control System
DELEM DA-69T 17" TFT Display Control System
SKU:PRE-ab5c41
Enhance metal bending accuracy with DELEM DA-69T's advanced 17" TFT display and cutting-edge programming features.
Regular price
$3,199.99
Regular price
Sale price
$3,199.99
Unit price
per
Initiate Order
DELEM DA-69T 17" TFT Display Control System
$3,199.99
Quantity: 1
Claim Your Seller Account
DELEM DA-69T 17" TFT Display Control System
$3,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DELEM DA-69T is a cutting-edge control system designed for press brakes, offering unparalleled efficiency in programming and operation. With 2D and 3D programming modes, automatic bend sequence calculation, and collision detection, it enhances productivity and accuracy in metal bending applications. Featuring a 17" high-resolution touch screen, DELEM Modusys compatibility, and a range of advanced features, this control system optimizes ergonomic usability and real-time production feedback. Experience seamless integration, intuitive programming, and enhanced machine cycle optimization with the DELEM DA-69T, making it a must-have for precision metalworking applications.
Product Specifications
Additional Information
Highly effective control algorithms optimize the machine cycle and minimize set-up time. This makes using press brakes easier, more efficient and more versatile then ever.The OEM-panel located above the screen, reserved for machine functions and OEM application switches, is integrated in the design and can be used depending on the required application.
Computed
Tooling safety zonesPress forceBend allowanceCrowning adjustmentDeveloped lengthBottoming forceHemming forceAuto bumping calculationRadius programmingBend allowance tableLearned angle correction database
Control
Servo/ 2 speed AC controlUnipolar / frequency inverter controlDirect pressure valve controlDirect proportional valve Y1, Y2 controlDirect crowning controlMultiple digital function outputsTandem operation
Electrical Interfacing
Modusys HSB busRS232 port (2x)Network interface (100Mb/10Mb)USB port (2x)Safety PLC interfacingProtractor interfacingAngle control interfacing
Features Of Control Unit
2D graphical touch screen programming mode3D and 2D graphical touch screen programming mode3D visualization in simulation and production17" high resolution color TFTFull Windows application suiteDELEM Modusys compatibility (module scalability and adaptivity)USB, peripheral interfacingOpen system architectureSensor bending & correction interface
Field Option
Part support controlX1-X2 angle programmingBarcode reader interfacingProtractor interfacingFrame deflection compensationSensor bending & correction interfacingSheet thickness measurement and compensation system
General
Real-time embedded Windows® OSMultitasking environmentInstant Shut OffDELEM Modusys compatible
Miscellaneous
'Teach-in' on all axesHand wheel movement of all axesOperator selectable dialogue languagesIntegrated help functionsError messaging systemDiagnostic programInternet Explorer (web browser)Remote diagnosisUser specific applications supportMachine time + stroke counterOn board Analysis ToolSequencer functionality (PLC)
Programming
Alphanumeric product namingReal-scale product programming and visualization2D/3D real-scale product programming and visualizationAutomatic bend sequence calculationAutomatic bend sequence calculation in 2D and 3DEasy graphical bend sequence swap and moveHemmed products programmingOne page programming tableGraphical product and tool selectionProgrammable material propertiesProgrammable axis speedFree material programmingProduct & tool search filterMillimeters/Inches, kN/Ton selectionStock counterProduct notes
Specifications Color Display Type
Liquid Crystal Display (LCD)
Specifications Power Supply Voltage
24 V
Specifications Screen Resolution
1280 x 1024 px
Specifications Storage Capacity
2 GB
Specifications Thin Film Transistor Tft Color Display Size
17 in
Standard Features
17" TFT, high brightness1280 x 1024 pixels, 32 bit colorFull touch screen control (IR-touch)3D graphics accelerationStandard Windows® networkingEmergency switchIntegrated OEM-panelUSB flash memory drive
Tooling
Graphical tool configurationMultiple tool station set-upsTool segmentation visualizationAlphanumeric tool identificationFree graphical tool programmingHemming toolsRadius toolsTool adapter support
