DELRIN Mounting Base for Aerial Cable Support System

Name: DELRIN Mounting Base for Aerial Cable Support System
Brand: Colonial Teltek
SKU: AER-8dd35e
Price: 99.99 USD
Availability: OutOfStock

SKU:AER-8dd35e

Durable DELRIN Mounting Base for secure aerial cable installations, resistant to weather elements. Quick installation, long-lasting performance.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

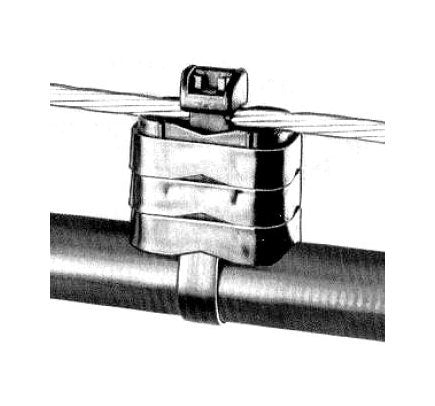

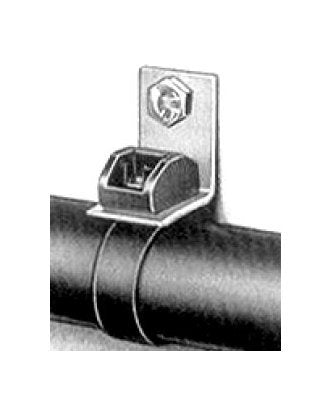

Upgrade your aerial cable installations with the DELTEC® Components Nylon Mounting Base, featuring a rugged Dupont DELRIN strap and marine-grade copper alloy locking device. With an outdoor life of 20 years and a minimum tensile strength of 250 pounds, this system offers superior resistance to weather elements. Enjoy quick, easy installation and long-term reliability for copper conductor, coaxial, fiber optic cables in aerial applications.

Product Specifications

Advantages

Provides years of dependable service.No sharp edges when installed with the WT3D Ty-Rap installation tool.Ease of installation.Lowers installation costs.High tensile strength and flexibility.1/2" stackable spacers meet all size requirements and eliminate the stocking of multiple size spacers.

Quick Easy Installation

Position spacers, as required, between strand and cable or between cables.Hold head of DELTEC® tail through spacer, around cable, up through other side of spacer and into other side of the head.Pull snug and use WT3D tool to pull strap up tight and cut tail flush with locking head.

Specifications Installation Range F

-30 to 150

Specifications Length In

1.125

Specifications Locking Device

Marine grade corrosion-resistant copperalloy

Specifications Max Recommended Load Lb

Specifications Min Tensile Strength Pound

250

Specifications Mounting Method

1/4 screw

Specifications Outdoor Life

Designed to last a minimum of 20 years

Specifications Std Pkg

250

Specifications Strap And Body

Dupont DELRIN. Offers superior resistance to sunlight, moisture, salt environments

Specifications Unit Qty

Specifications Width In

0.750

DELRIN Mounting Base for Aerial Cable Support System
