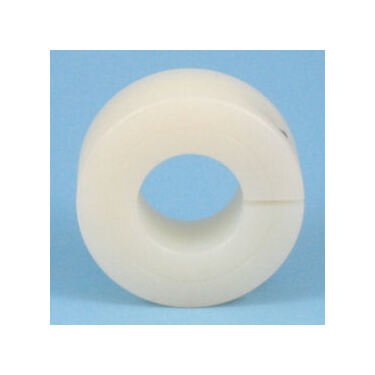

Delrin One-Piece Split Clamp-Type Shaft Collar - 1-3/16in Bore
Delrin One-Piece Split Clamp-Type Shaft Collar - 1-3/16in Bore
SKU:ROU-4ac348
Precision-machined Delrin shaft collar for secure, non-marring shaft attachment. High clamping power in various styles and materials.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Delrin One-Piece Split Clamp-Type Shaft Collar - 1-3/16in Bore
$14.99
Quantity: 1
Claim Your Seller Account
Delrin One-Piece Split Clamp-Type Shaft Collar - 1-3/16in Bore
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Delrin One-Piece Split Clamp-Type Shaft Collar is a precision-machined collar designed to protect shafts from damage with superior clamping power. Ideal for use on standard round shafts or thin wall tubes, this collar comes in High Strength, Low Profile, and Heavy Duty styles to suit various applications. Stocked in materials like Steel, Stainless Steel, Aluminum, and Delrin, it offers non-marring, easy adjustment with high clamping force. With dimensions of 1-3/16in bore, 2.125in OD, and 0.750in width, this collar features a recessed 1/4-20 x 5/8 stainless steel screw.
Product Specifications
Dimensional Attributes Bore Size
1-3/16 in
Dimensional Attributes Outside Diameter
2.125 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-20 x 5/8
Dimensional Attributes Width
0.750 in
Specifications Alloy
Delrin®
Specifications Approximate Weight
0.1 lb
Specifications Country Of Origin
USA
Specifications Finish
White
Specifications Material
Plastic
Specifications Part Number
1R103
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Upc Code
662786002250
