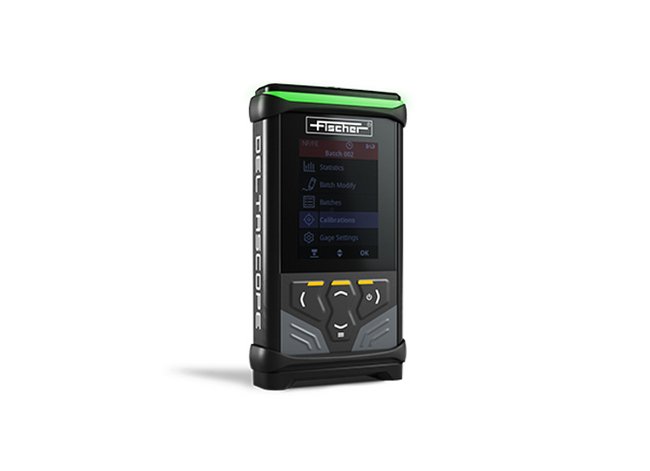

DELTASCOPE® DMP30 Coating Thickness Measurement Instrument
DELTASCOPE® DMP30 Coating Thickness Measurement Instrument
SKU:MOD-7f3cbc
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DELTASCOPE® DMP30 Coating Thickness Measurement Instrument
$49.99
Quantity: 1
Claim Your Seller Account
DELTASCOPE® DMP30 Coating Thickness Measurement Instrument
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

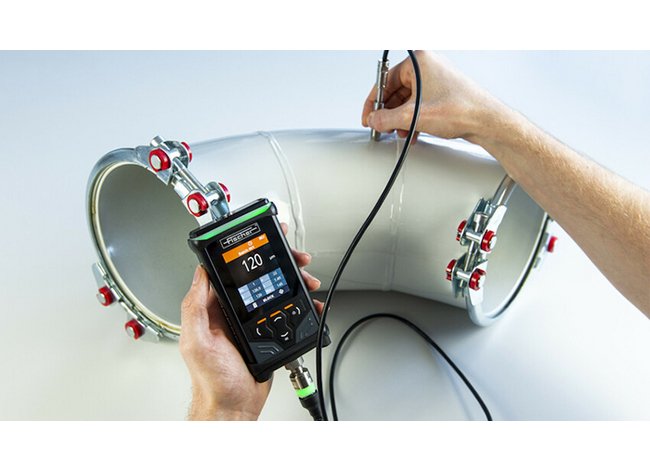

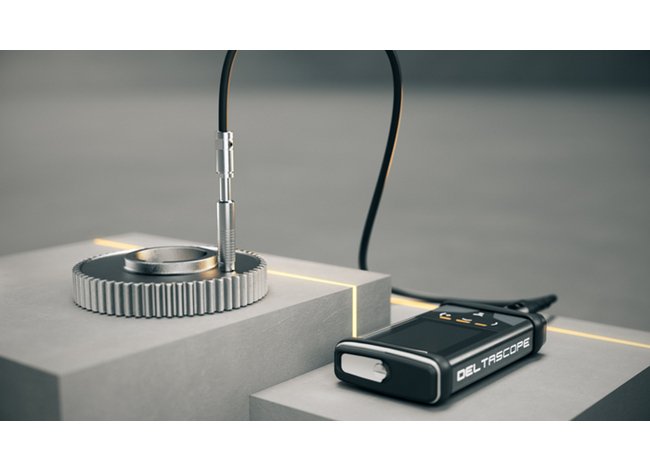

Robust and powerful handheld instrument for coating thickness measurement on steel or iron according to the magnetic induction method (DIN EN ISO 2178) with interchangeable probes. Supports the FPR1 profile probe for determining the depth of surface profiles according to ASTM 4471.
Product Specifications
Additional Information
The DMP30 instruments feature additional more memory for numerous customer-specific measuring applications as well as extensive graphical and statistical evaluations. Tolerance limits can be entered into the calibratable measuring applications and the production process can be analyzed statistically.
Features
The DMP30 instruments feature additional more memory for numerous customer-specific measuring applications as well as extensive graphical and statistical evaluations. Tolerance limits can be entered into the calibratable measuring applications and the production process can be analyzed statistically.
Instrument Features
- Ergonomic aluminum housing- Shockproof, dustproof and waterproof (IP64)- One-handed operation via 4 keys for optimal work- Visual, haptic and acoustic signal for user-defined limit values of specific or all parameters- High contrast, color, rotating display for any viewing angle- Robust probe connector- USB interface for secure and fast data transfer- Additional USB slot in battery compartment for BT dongle for wireless data transfer- Rechargeable Lithium battery with up to 24 hours run time - Intuitive menu navigation allows easy handling even by untrained personnel- Graphic operating aids guide the user through each step of the process- Memory for 250,000 values in up to 2,500 batches- Support of digital probes and F-probes (with optional DMP-F-PROBE-ADAPTER)- 22 languages can be set- External charger not included (optionally available)
Measurement Strategies And Evaluation
- Ergonomic aluminum housing- Shockproof, dustproof and waterproof (IP64)- One-handed operation via 4 keys for optimal work- Visual, haptic and acoustic signal for user-defined limit values of specific or all parameters- High contrast, color, rotating display for any viewing angle- Robust probe connector- USB interface for secure and fast data transfer- Additional USB slot in battery compartment for BT dongle for wireless data transfer- Rechargeable Lithium battery with up to 24 hours run time - Intuitive menu navigation allows easy handling even by untrained personnel- Graphic operating aids guide the user through each step of the process- Memory for 250,000 values in up to 2,500 batches- Support of digital probes and F-probes (with optional DMP-F-PROBE-ADAPTER)- 22 languages can be set- External charger not included (optionally available)
Specifications Industry Standardscertifications
American Society for Testing and Materials (ASTM D7091) | European Standards International Organization for Standardization (DIN EN ISO 2178)
Specifications Intended Application
Coating Thickness
Specifications Interfaces
Bluetooth, USB-C
Specifications Measurement Method
- Ergonomic aluminum housing- Shockproof, dustproof and waterproof (IP64)- One-handed operation via 4 keys for optimal work- Visual, haptic and acoustic signal for user-defined limit values of specific or all parameters- High contrast, color, rotating display for any viewing angle- Robust probe connector- USB interface for secure and fast data transfer- Additional USB slot in battery compartment for BT dongle for wireless data transfer- Rechargeable Lithium battery with up to 24 hours run time - Intuitive menu navigation allows easy handling even by untrained personnel- Graphic operating aids guide the user through each step of the process- Memory for 250,000 values in up to 2,500 batches- Support of digital probes and F-probes (with optional DMP-F-PROBE-ADAPTER)- 22 languages can be set- External charger not included (optionally available)
Specifications Memory Readings
0 to 250,000
Specifications Probes
Exchangeable
Specifications Storable Measuring Applications
0 to 2500
